Stabilisierungskugelkupplung – Montage- und Betriebsanleitung
12version 4.00/2020 . 209692.002

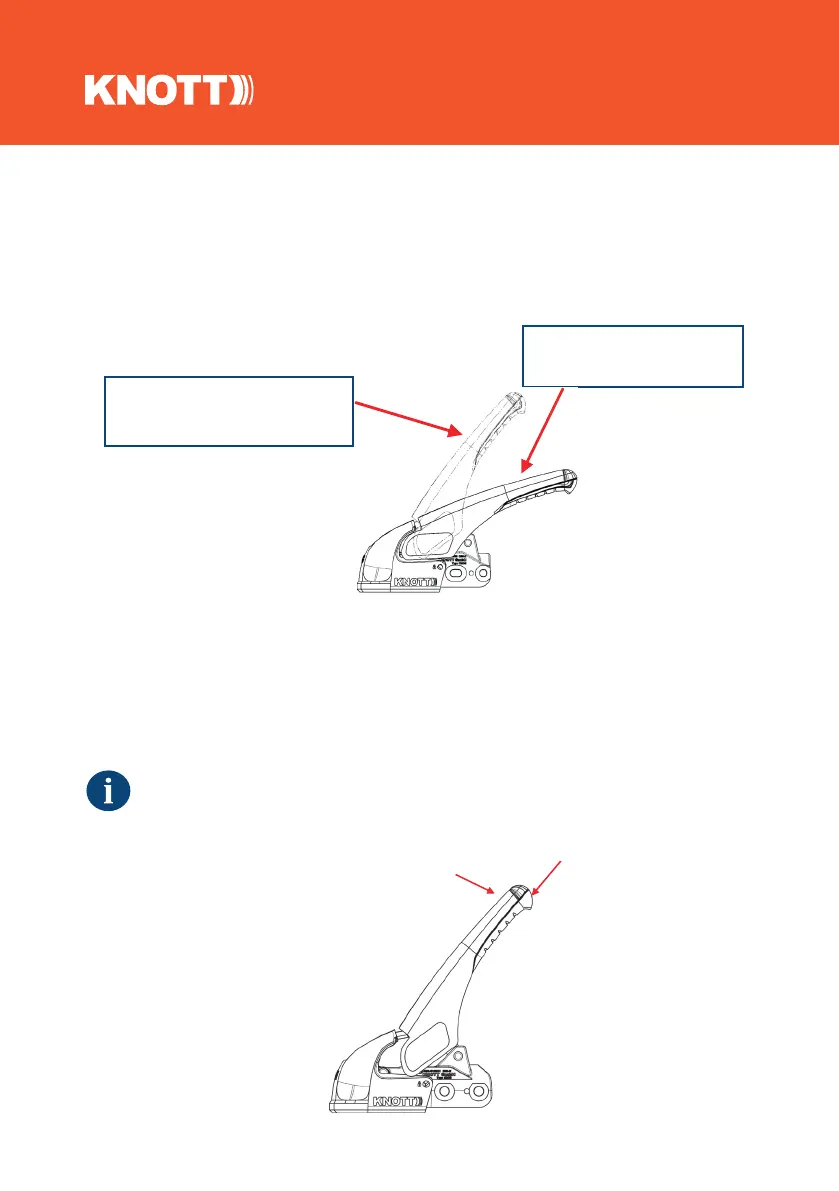

9.2 Activating the stabilising device
To activate the stabilising device, push the handle all the way down to the stop. A
certain amount of force is required:
When the hand lever is pressed down, tension is applied to a spring assembly; this
applies pressure onto the ball via the control lever on the spherical cap with the
friction elements.
The hand lever is in a tensioned condition approximately parallel to the drawbar:
Note: The effort required to activate the stabilising device can be consider
ably reduced if a force is rst applied in direction 1 and then the actual
clamping force is also applied in direction 2.
Closed, stabilisation
activated
Closed, stabilisation
deactivated
1
2
