2-2 A-61602 June 2013
3. Click Next when the Welcome screen is displayed.
4. Click I Agree after you have read and agreed with the terms of the
Software License Agreement. The installation will start and several
progress screens will be displayed.
5. Click Finish when the installation is complete.
6. Remove the Kodak ScanMate i1120 Scanner Installation CD from
the CD-ROM drive.

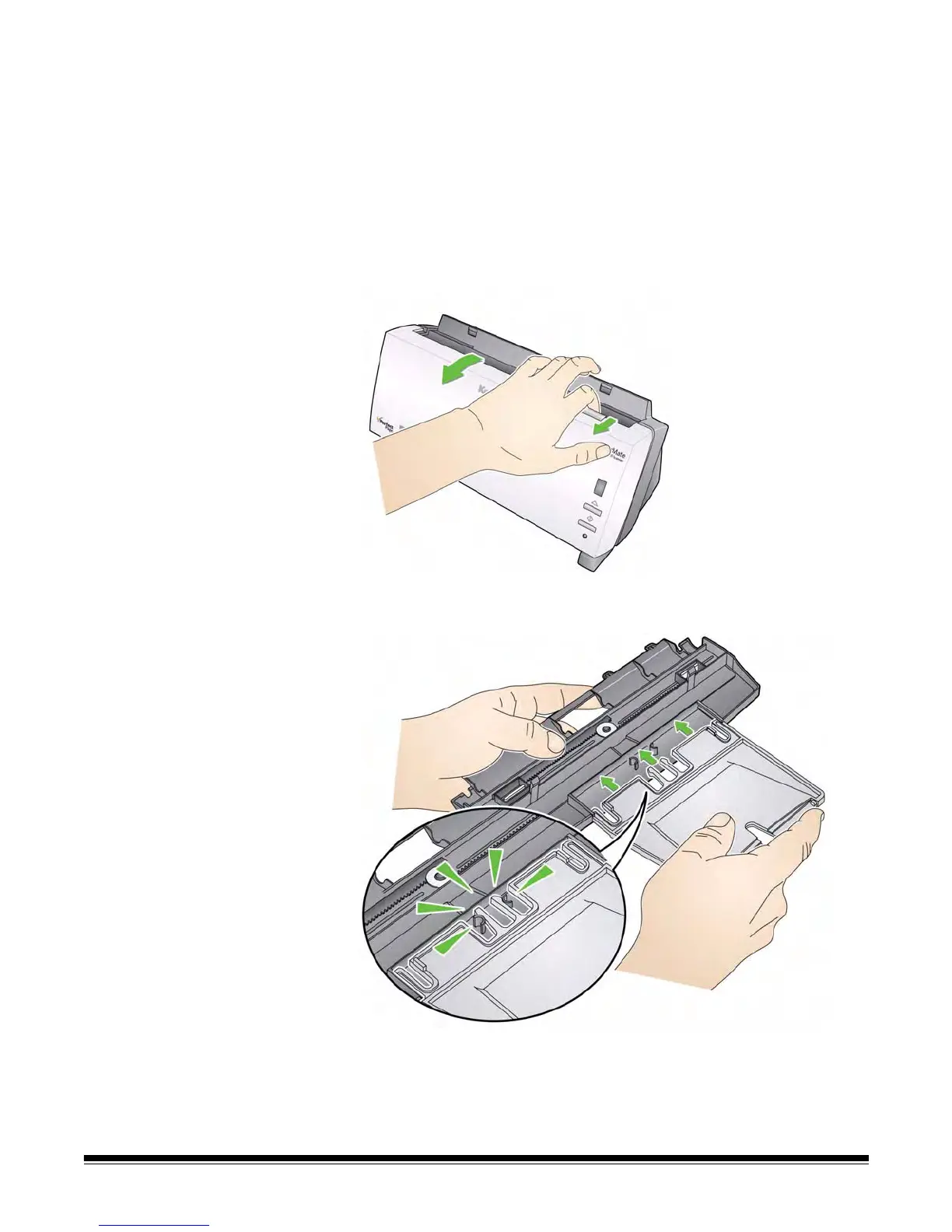

Attaching the input tray 1. Press the release button to open the scanner cover.
2. Attach the two input tray pieces by aligning the slots and snapping
them together.
