trademark (or emulsion) side of slide No.2 should face
toward slide
No.1; No.3 should face toward No.2, etc.
Replace the lock ring,
turning it in the direction of the
arrow marked
LOCK until the ring is secure on the tray.
NOTE: If you wish to darken the screen after the showing
of 80 slides, see the instructions on page 13 under "Editing
Slides."

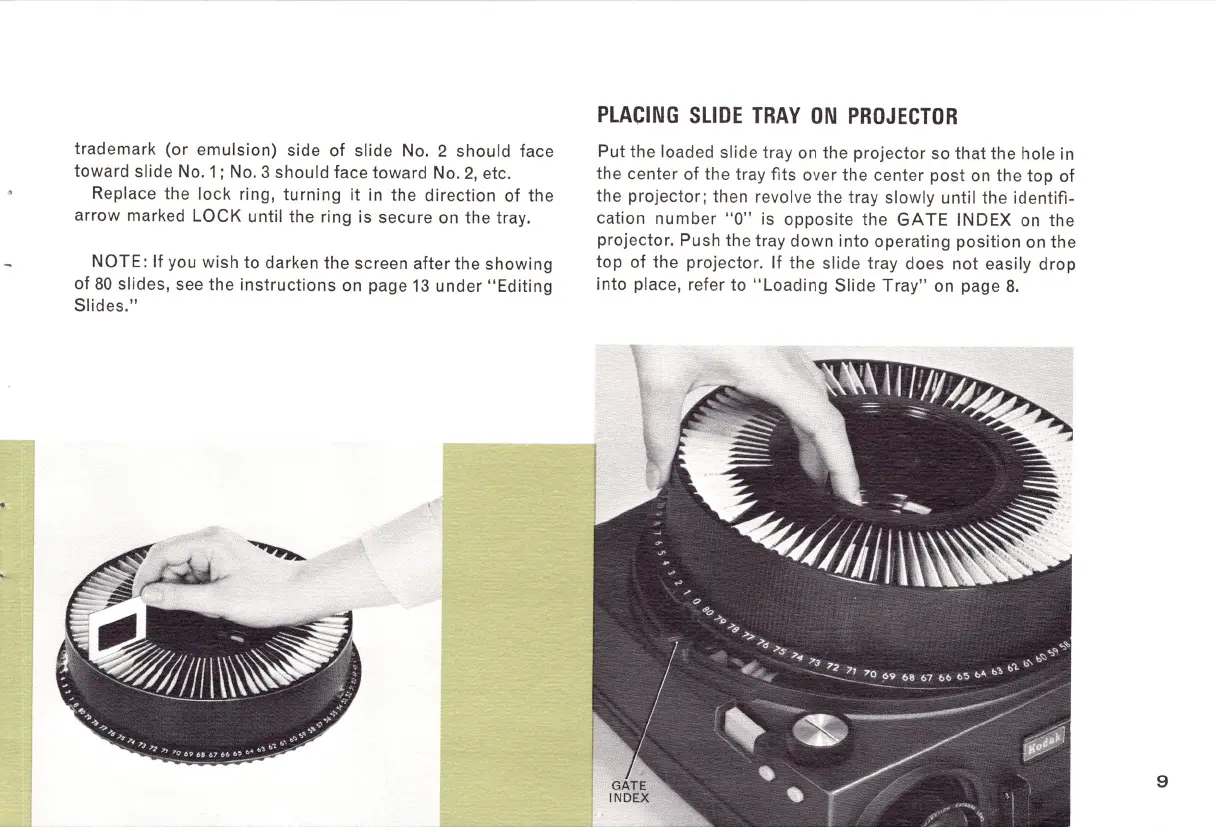

PLACING SLIDE TRAY ON PROJECTOR
Put the loaded slide tray on the projector so that the hole in
the center
of the tray fits over the center post on the top of
the projector; then revolve the tray slowly until the identifi-
cation number "0" is opposite the GATE INDEX on the
projector. Push the tray down into operating position on the
top of the projector. If the slide tray does not easily drop
into place, refer to "Loading Slide Tray" on page 8.
9
