Scanner components

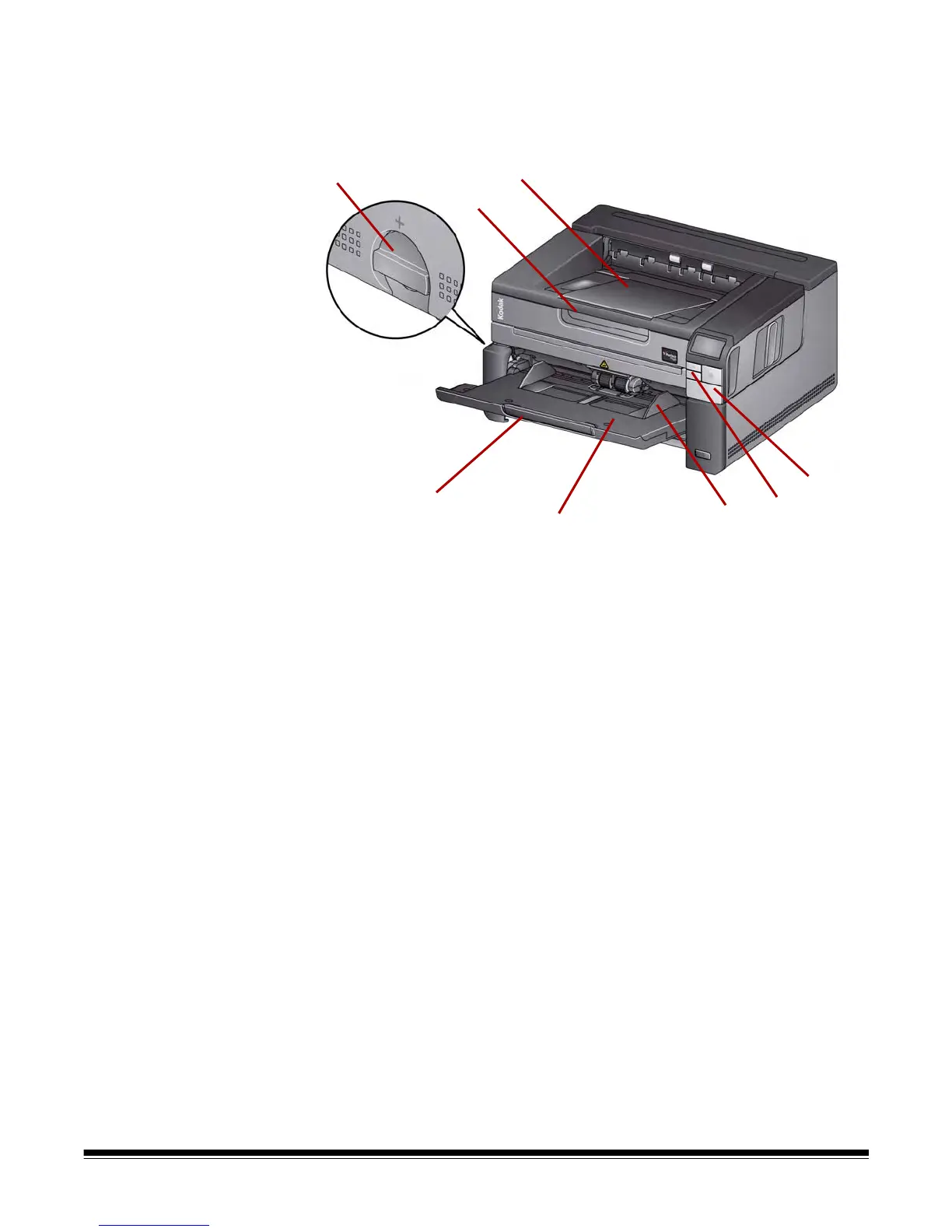

Front view
1 Output tray extender — can be opened to accommodate documents up
to 17 inches / 43.2 cm.
2 Flatbed handle — provides access to the flatbed, which allows you to
scan exception documents, books, magazines, file folders, etc.
3 Gap release — turn the dial vertically to open the space between the
feed module and separation module for documents that require special
handling.
4 Input tray extender — pull this extender out to accommodate documents
longer than 11 inches / 27.9 cm.
5 Input tray— holds up to 250 documents (20 lb. / 80 g/m
2
) for scanning.
The input tray can be folded up when it is not in use.
6 Side guides — slide these guides in and out to accommodate the size of
the documents you are scanning.
7 Scroll buttons — press the Up or Down scroll buttons to scroll through
predefined functions or applications for scanning.
8 Start/Resume/Pause buttons — press to start (>) scanning, resume (/)
scanning or pause (II) to temporarily stop scanning. Also includes a green
LED indicating scanner status (i.e., power is on and ready to scan) and a
red LED indicating scanner status (not ready or a possible error condition;
i.e., a document jam).
