52 TP-7203 4/23
6.5.1 Power Relay Module
The power relay module kit contains one 50 amp relay with connecting lugs in a NEMA type 3R enclosure. Connect up to four
(4) power relay modules to the load management devices listed above.
The power relay modules can be mounted indoors or outdoors. Two (2) 120 VAC loads (shed simultaneously) or a single
240 VAC load can be wired to each relay.
For detailed installation and connection instructions, see TT-1646, provided with the power relay module kit.

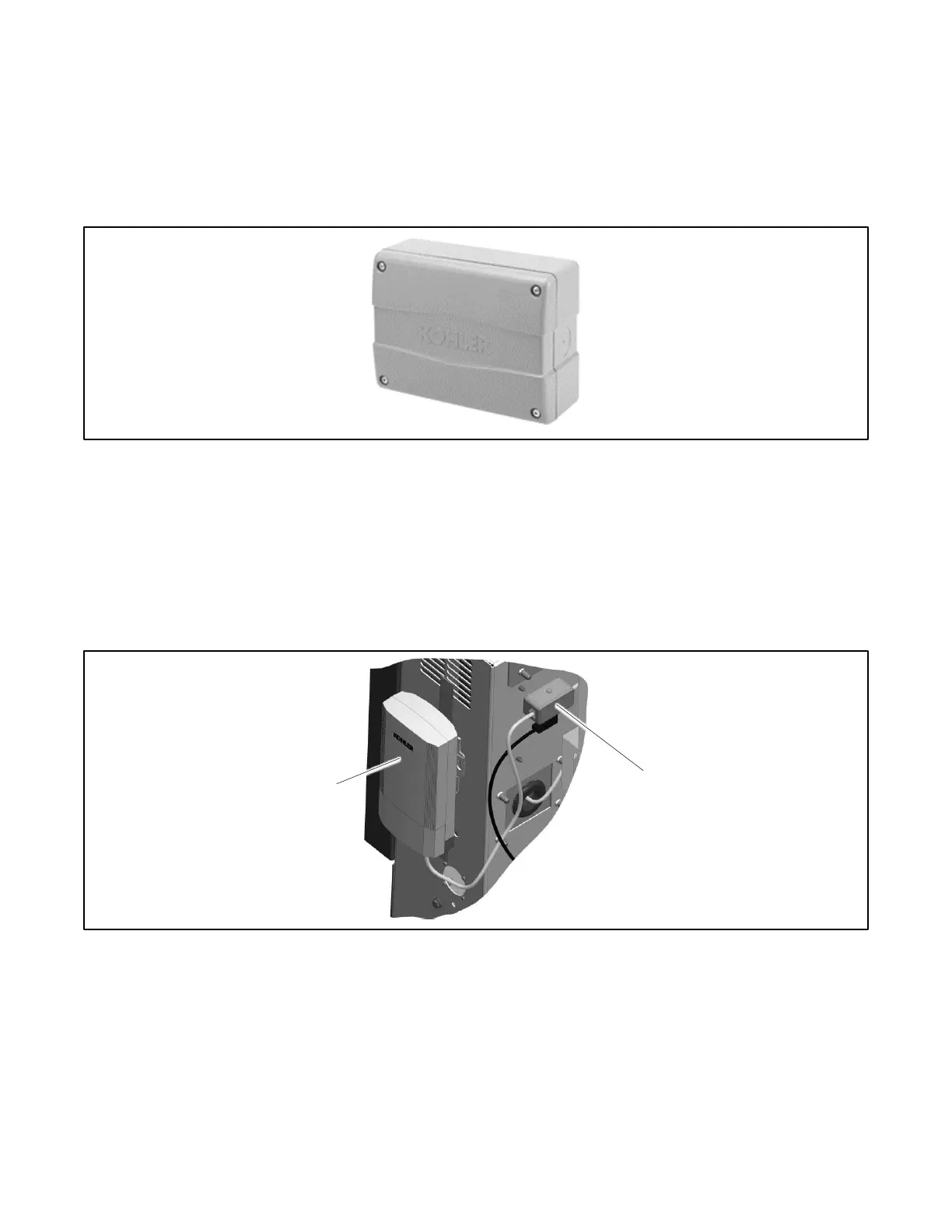

Figure 34 Power Relay Module
6.6 OnCue Plus Wireless Kit
The OnCue
®
Plus Wireless Kit allows connection of residential/light commercial generator sets to the customer’s Internet router
without running a network cable from the customer’s computer router to the generator set. Use this kit to connect the generator
set to the Internet for the Kohler
®
OnCue
®
Plus Generator Management System.
The kit uses two wireless bridges that communicate with each other. One wireless bridge is installed inside the generator
enclosure and powered by the generator’s engine starting battery. The second wireless bridge is installed near the customer’s
router and connected to 120 VAC power.
Figure 35 Wireless Bridge (kit includes qty 2; mounting location may vary)
