7.2 Four-Lead (Single-Phase) Generator Sets
Figure 38 shows the factory connection for the single- phase 120/240 V 60 Hz generator set. Four-lead, single-phase models
are not reconnectable.

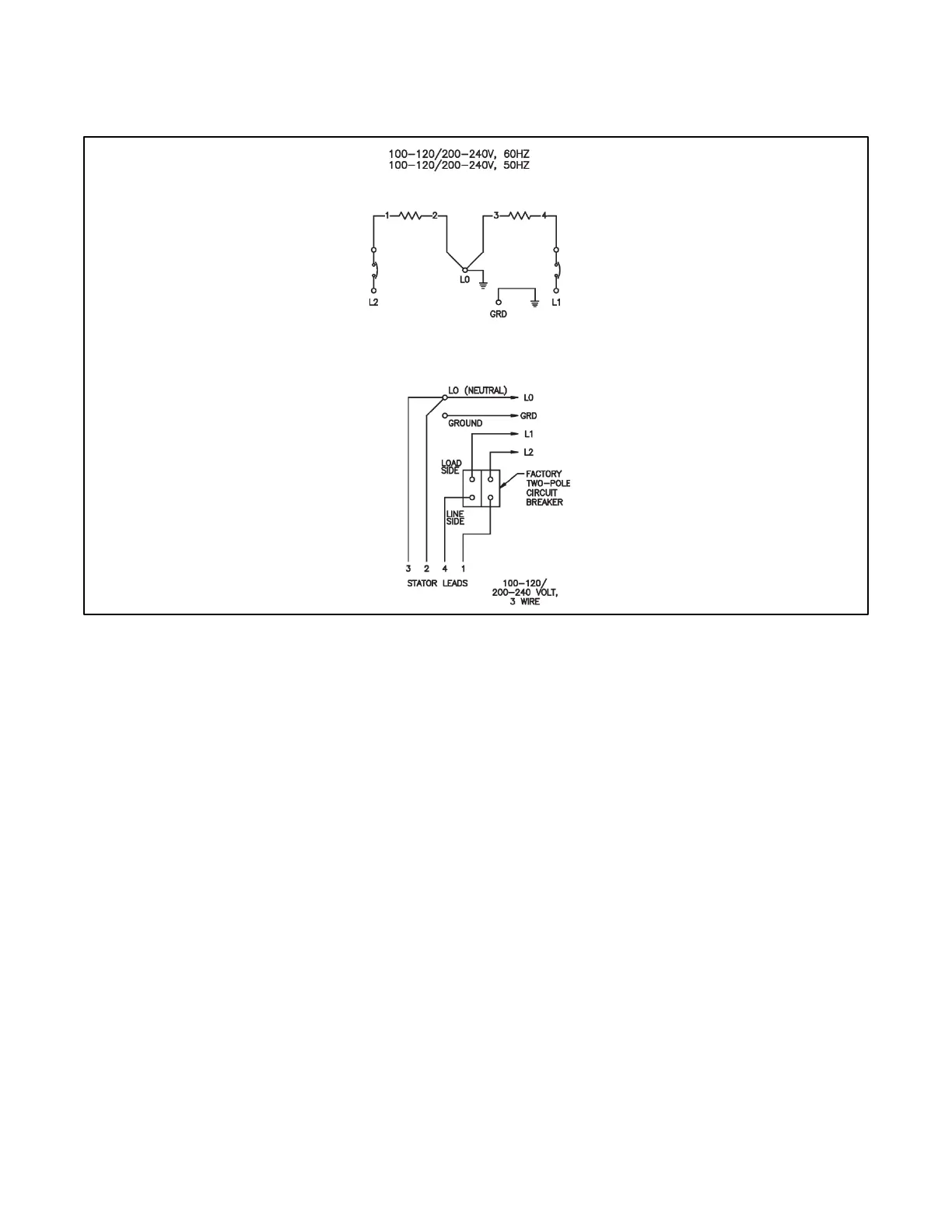

Figure 38 Single-Phase Factory Connection, 120/240 V 60 Hz
ADV-5875U-1
