Kohler 5ERKM

TP-6079 3/002 Section 1 Specifications
1.6 Service Views
FV-277000
SERVICE VIEW
ENGINE-END VIEW
1
3
2
5
6
8
10
7
19
11
12
13
1718
22
21
20
1. Controller
2. Hourmeter
3. Start/Stop switch
4. Nameplate (top)
5. Input fuse
6. Battery charging fuse
7. Voltage regulator fuse
8. AC circuit breaker
9. Remote start connector (nonservice side)
10. Lifting eye
11. Muffler
12. Spark plug
13. Air intake silencer
14. Carburetor
15. Oil drain valve
16. Oil check
17. Fuel feed pump
18. Fuel inlet
19. Extended shaft (generator specification available)
20. Engine battery charging voltage regulator
21. End bracket cover plate
22. PowerBoostäIIIE voltage regulator
4
9
1516 14

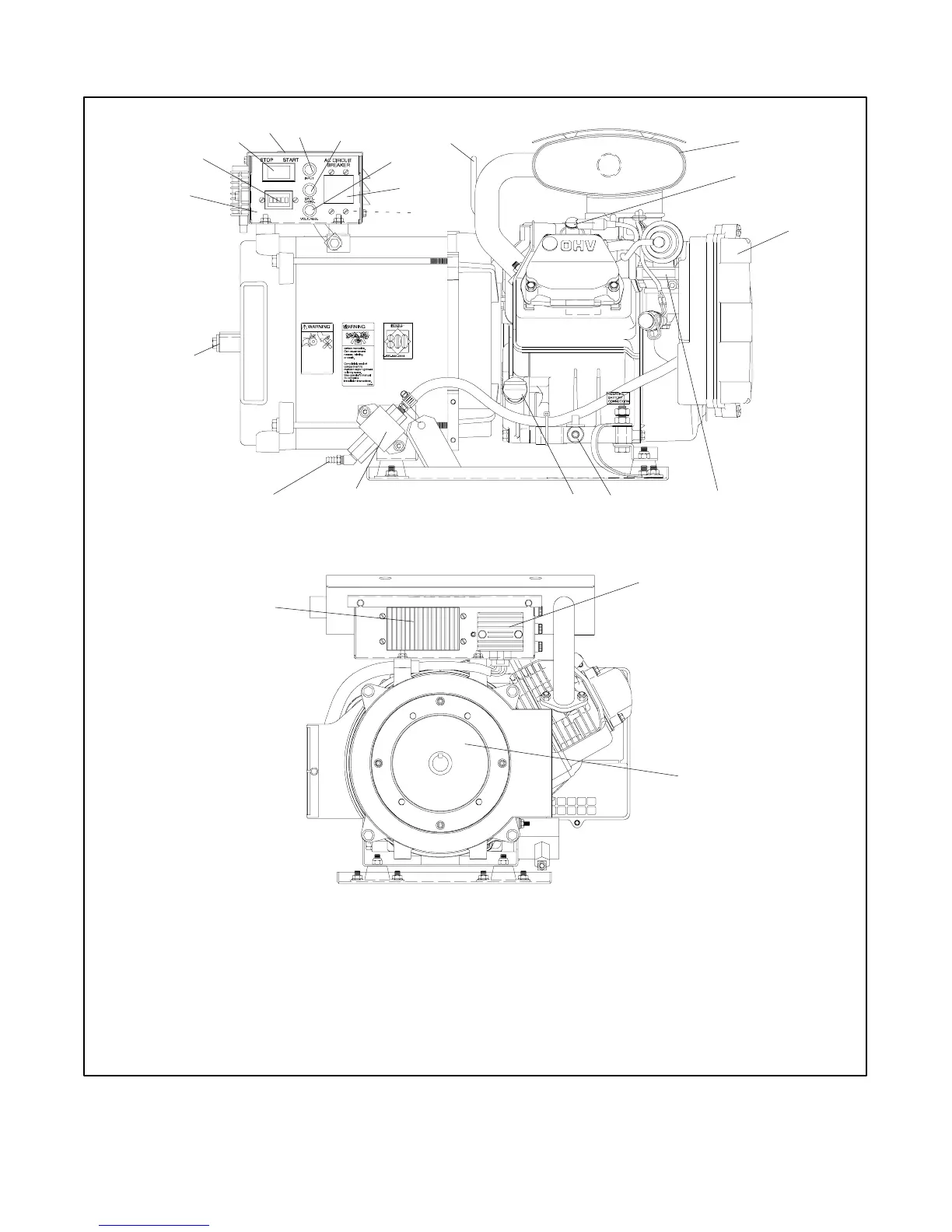

Figure 1-1 5ERKM/4EFRKM Service Views
