Kohler 5ERKM

TP-6079 3/00 29Section 7 Generator Disassembly/Reassembly
1
2
3
4
5
67 89
10
12 11
1516171819
66
6
201-191-1
1. Generator adapter plate bolt, quantity 4
2. Generator adapter
3. Brush holder assembly
4. Brush holder shim
5. Rotor bolt
6. Hardened washer
7. Generator overbolt, quantity 4
8. Retainer wire
9. Brush assembly mounting screws, quantity 2
10. Bracket, brush holder
11. F an guard
12. Fan guard bolts, quantity 2
13. End bracket
14. Pipe plug
15. End drive fitting (for marine application only)
16. End bracket bearing
17. O-ring
18. Stator assembly
19. Rotor assembly
1314
7
77

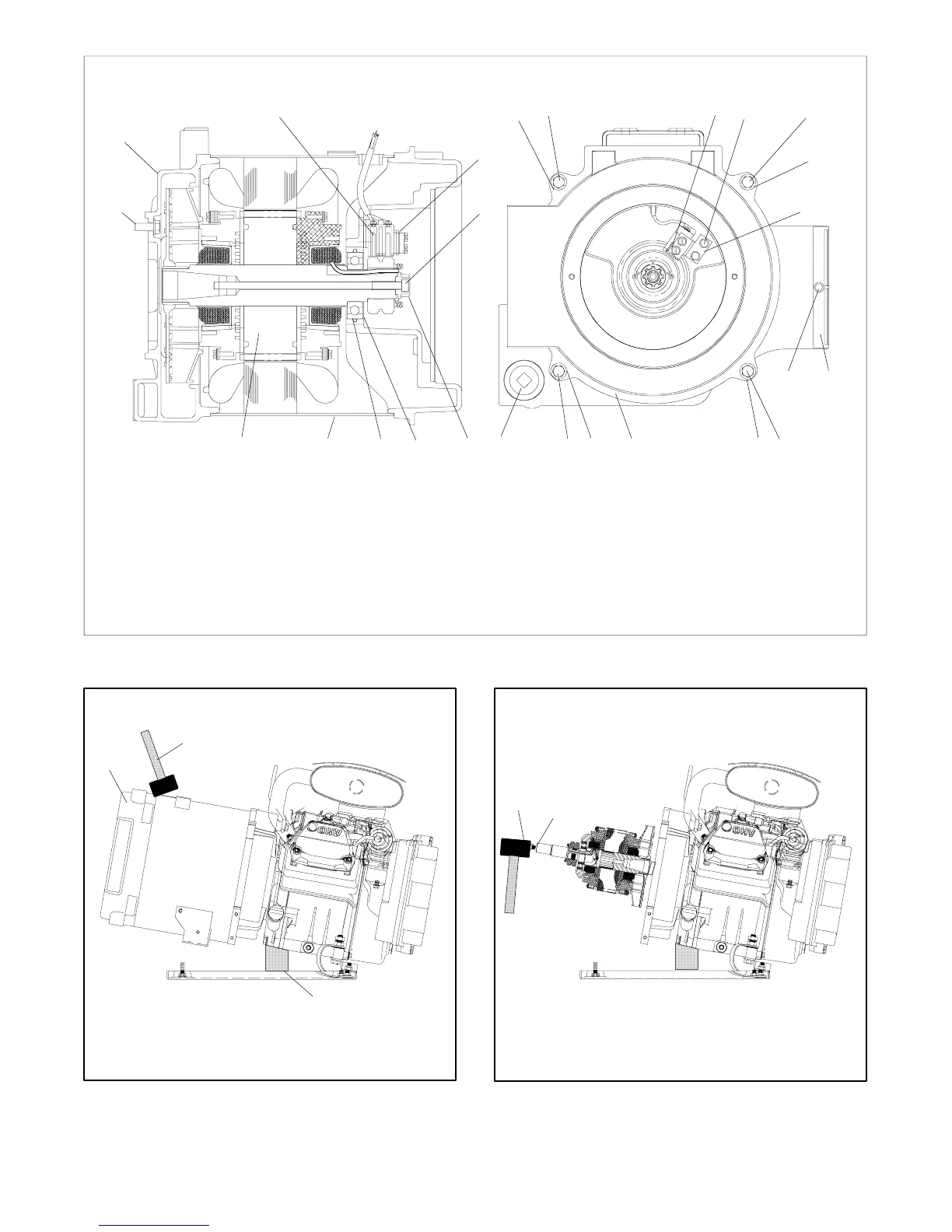

Figure 7-2 Alternator Components
3
FV-277000
1. End bracket
2. Rubber mallet
3. Block of wood
2
1
Figure 7-3 Raising the Generator
1
FV-277000
1. Mallet
2. Rotor bolt
2
Figure 7-4 Rotor Removal
