10.19
Section 10
Reassembly
10

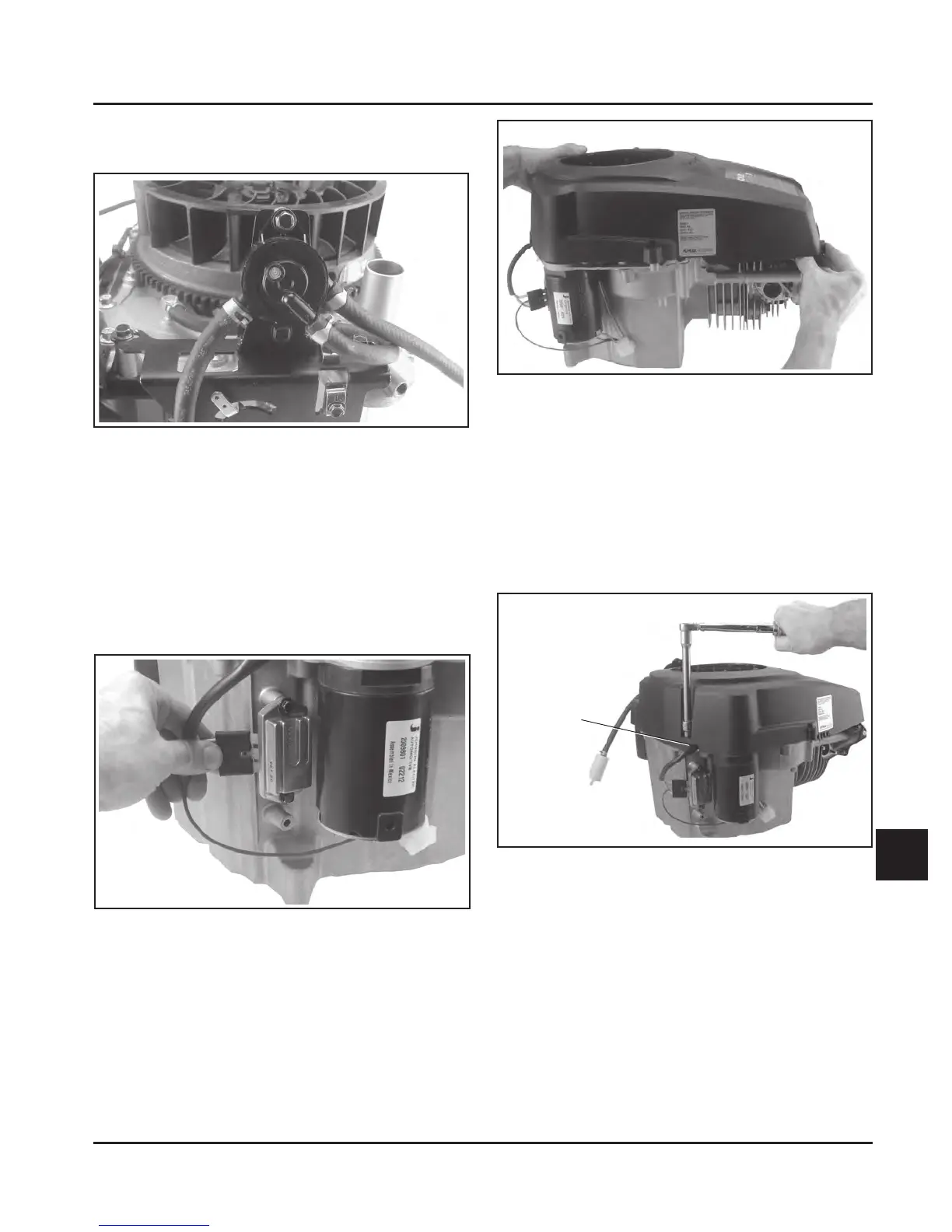

Figure 10-68. Installing Fuel Pump.
Install Rectifier-Regulator
1. Using the two M6 screws, mount the rectifier-
regulator onto the crankcase bosses, with the
cooling fins out. See Figure 10-69. Torque the
screws to 6.0 N·m (55 in. lb.) into new as-cast
holes, or 4.0 N·m (35 in. lb.) into used holes.
2. Attach the connector to the rectifier-regulator
terminals.
Figure 10-69. Installing Rectifier-Regulator.
Install Blower Housing and Flywheel
Screen
1. Position the blower housing on the engine and
route the spark plug lead through the underside
slot. See Figure 10-70.
3. Connect the pulse and fuel lines to the fuel pump
and secure with clamps. See Figure 10-68.
Figure 10-70. Installing Blower Housing.
2. Check that the stator leads are within the notch of
the blower housing. Align the mounting locations,
then install the four M6 shouldered mounting
screws. If a flat washer was used under the head
on one screw, install the screw in the location
closest to oil fill/dipstick. Torque the screws to
11.0 N·m (95 in. lb.) into new, as-cast holes, or
7.5 N·m (65 in. lb.), into used holes. See Figure
10-71.
Figure 10-71. Installing Blower Housing Screws.
3. Snap the grass screen onto the cooling fan. See
Figure 10-72.
Notch
