8.13
Section 8
Disassembly
8

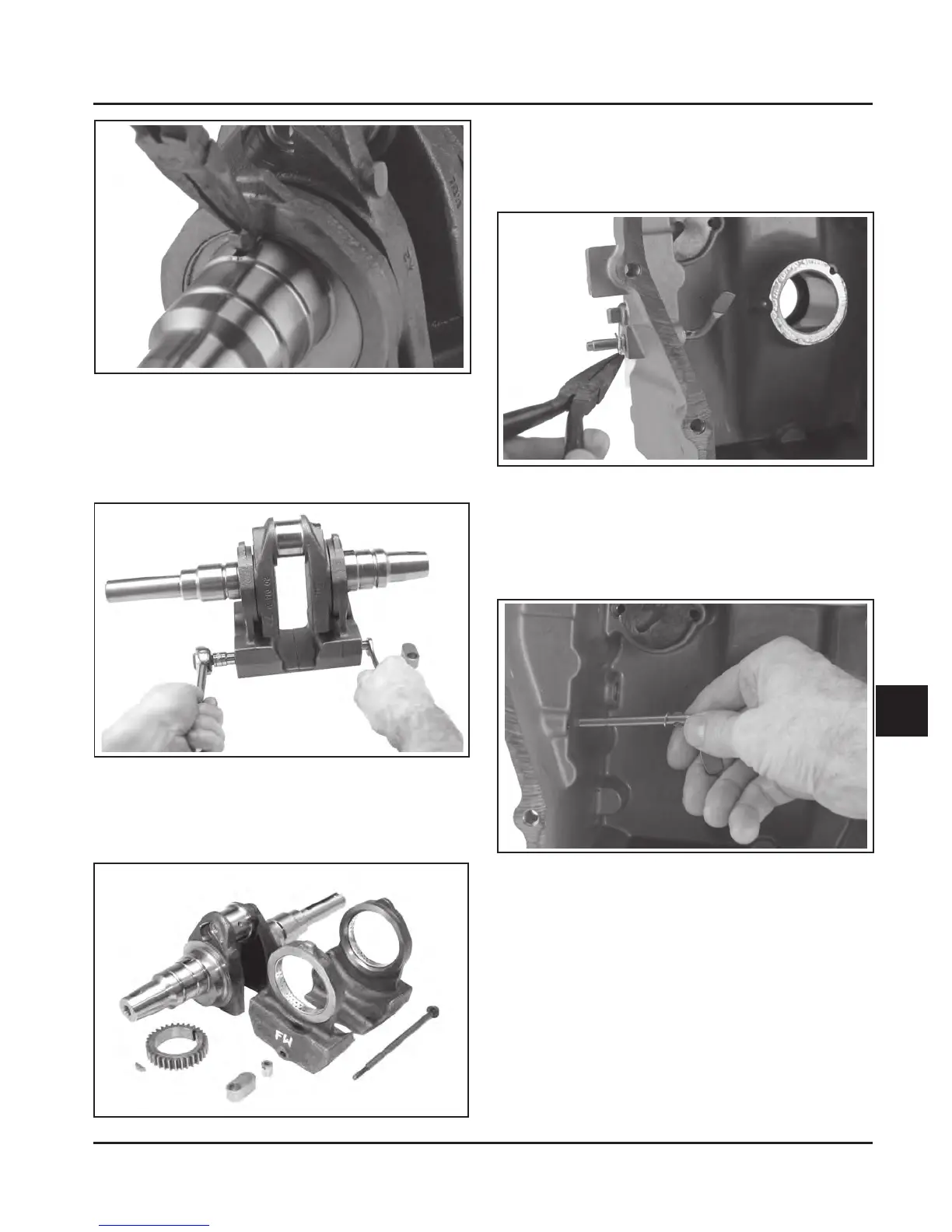

Figure 8-50. Removing Balance Weight Screw.
4. Mark the weights for proper reassembly and
carefully slide the balance weights off the
crankshaft eccentrics. See Figure 8-51.
Figure 8-51. Disassembled Balance Weight.
Figure 8-49. Removing Crank Gear Key.
3. Remove the long hex. flange screw securing the
two balance weight halves together on the
crankshaft. Hold the guide pin with a wrench (if
required). See Figure 8-50.
Remove Governor Cross Shaft
1. Remove the hitch pin and washer located on the
outside of the governor cross shaft. See Figure
8-52.
Figure 8-52. Removing Hitch Pin and Washer.
2. Slide the shaft inward and remove it through the
inside of the crankcase. Be careful not to lose the
small washer in the inside portion of the shaft.
See Figure 8-53.
Figure 8-53. Removing Governor Cross Shaft.
