Kohler Courage SV470-600 - Install Air Cleaner Element, Precleaner, and Air Cleaner Cover; Install Oil Sentry or Pipe Plug; Installing Grass Screen; Installing Pipe Plug or Adapter

10.20
Section 10
Reassembly

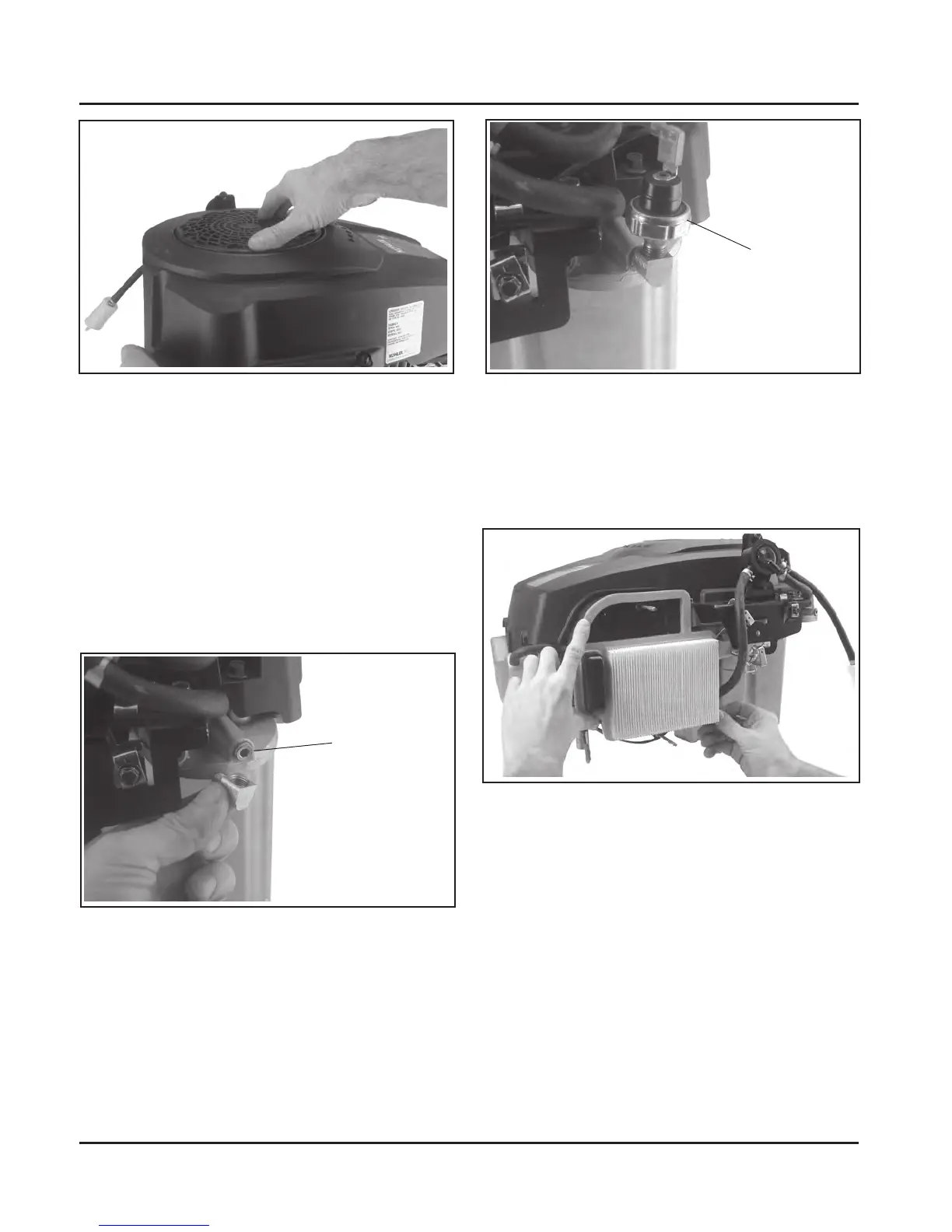

Figure 10-75. Installing Air Cleaner Element.
2. Install the precleaner (if so equipped), into the
upper section of the air cleaner cover. See Figure
10-76.
Figure 10-74. Installed Oil Sentry™ Switch.
Install Air Cleaner Element, Precleaner,
and Air Cleaner Cover
1. Install the air cleaner element with the pleated
side “out.” Seat the rubber seal onto all the edges
of the air cleaner base. See Figure 10-75.
Figure 10-72. Installing Grass Screen.
Install Oil Sentry™ or Pipe Plug
1. Apply pipe sealant with Teflon
®
(Loctite
®
No.
59241 or equivalent), to the threads of the 1/8”
pipe plug or adapter. Install and tighten into the
port on the closure plate. See Figure 10-73.
Torque pipe plug to 4.5-5.0 N·m (40-45 in. lb.). If
a switch was installed, apply sealant to the
threads of the Oil Sentry™ switch and install into
the adapter or center passage. Torque the switch
to 4.5-5.0 N·m (40-45 in. lb.). Connect the green
wiring harness lead to the terminal on the switch.
See Figure 10-74.
Figure 10-73. Installing Pipe Plug or Adapter.
Center Passage
Oil Sentry™
Switch
