8.13
Section 8
Disassembly
8

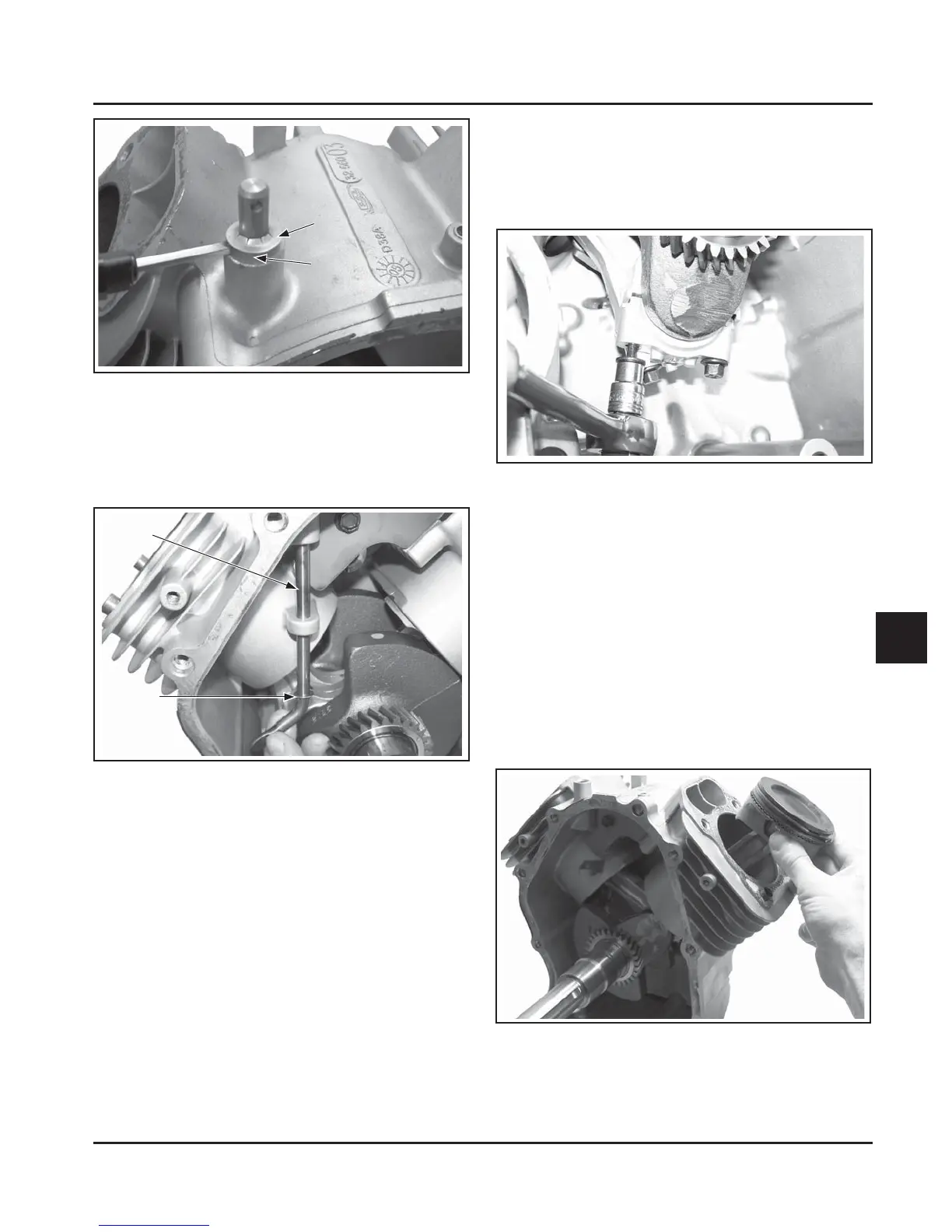

Figure 8-48. Removing Governor Cross Shaft.
3. Remove the governor sha seal from the
crankcase.
Figure 8-47. Removing Governor Cross Shaft
Retainer.
2. Remove the cross sha with the small inner
washer through the inside of the crankcase. See
Figure 8-48.
Retainer
Washer
Governor
Shaft
Washer
Figure 8-49. Removing Connecting Rod End Cap.
NOTE: If a carbon ridge is present at the top of
either cylinder bore, use a ridge reamer
tool to remove it before aempting to
remove the piston.
2. Carefully remove the connecting rod and piston
assembly from the cylinder bore. See Figure 8-50.
NOTE: The cylinders are numbered on the
crankcase. Use the numbers to mark
each end cap, connecting rod and piston
for reassembly. Do not mix end caps and
connecting rods.
Figure 8-50. Removing Connecting Rod and Piston
Assembly.
3. Repeat the above procedure for the other
connecting rod and piston assembly.
Remove Connecting Rods with Pistons
and Rings
1. Remove the two hex flange screws securing the
closest connecting rod end cap. Remove the end
cap. See Figure 8-49.
