2. Install the Controller
CAUTION: Risk of product damage. The controller is rated to
operate in temperatures up to 104°F (40°C). Do not install near heat
sources (such as radiators or under whirlpool surrounds) or in any
location where the temperature may exceed 104°F (40°C).
NOTE: The controller comes equipped with rubber feet for
placement on a shelf, or it can be installed to a vertical surface using
the mounting holes.
The controller is designed to fit within a 2x4 stud cavity. The
cavity must be free of insulation.

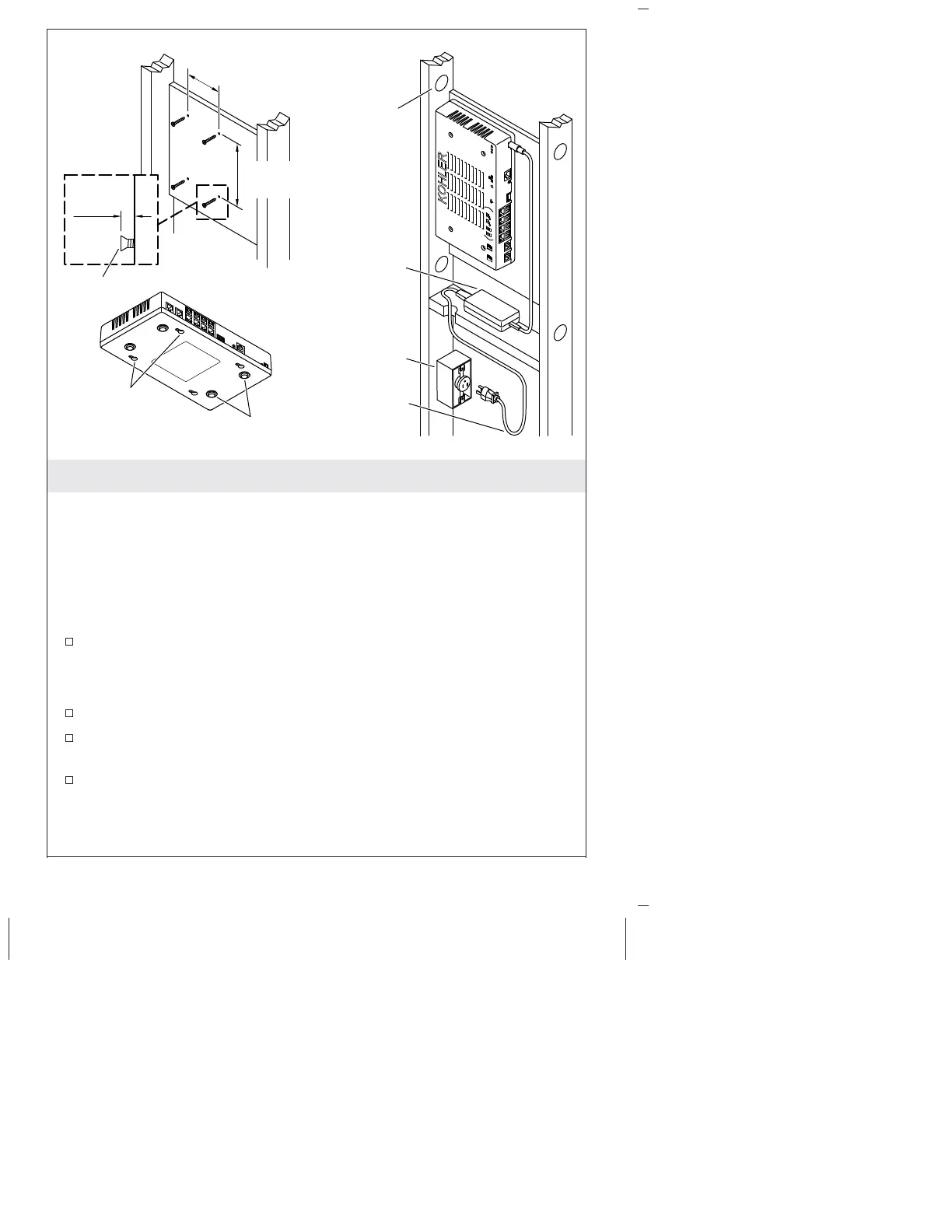

Installation In a Stud Cavity
Install a vertical surface between the studs.
Install four drywall screws according to the dimensions above.
The screws should protrude 5/16″ (8 mm).
Install a 120 V GFCI electrical outlet within the stud framing, in
close proximity to the controller.
Power
Supply
Drill 1"
(25 mm)
holes.
Outlet
Drip Loop
Feet
Mounting
Holes
4" (102 mm)
5-1/8"
(130 mm)
Screw
5/16"
(8 mm)
1218131-2-A 6 Kohler Co.
