Fuel Bowl Assembly:
1.
Remove main jet adjusting needle and main fuel needle seat.
Inspect these parts and
replace if nicked, grooved or otherwise damaged.
2. Wash assembly in clean solvent, blow out ports, venturi, etc. with compressed air.
3.
Reinstall main fuel needle seat and needle -- turn needle all the way in with fingers then back
off about
1-112 turns for preliminary adjustment.
Throttle Assembly:
1. Remove and inspect venturi
for damage. Clean venturi.
2. Remove easket (throttle bodv to bowl) make sure all trace of gasket material is removed
-
from face of throttle body.
3.
Do not remove throttle plate or shaft -- if these parts are worn, replace with new throttle
body.
After cleaning and renewing parts where required, reassemble as follows:
1.
After installing new gasket, place large venturi in throttle body.
2.
Position bowl assembly on throttle body and secure with
capscrews.
3.
Just before final assembl
y
, set float level:
Turn intake assembly upside down so that float
rests lightly against fuel valve.
Measure distance between machined surface of assembly
and top of float
-- this should be 1-112".
If adjustment is necessary, use needle - nose pliers
and bend float lever up close to float body.
4.
Insert gasket on fuel bowl assembly then carefully guide air intake assembly into position
on fuel bowl
-- be careful not to hook float when installing as this may alter float setting.
5.
Securely tighten air intake with capscrews to complete assembly.
Adjust carburetor
per
previous instructions.
MAIN FUEL
,NEEDLE
.
FUEL INLET
& N E E D L E & SEAT
FLOAT
m (0) THROTTLE
AIR HORN
I
I

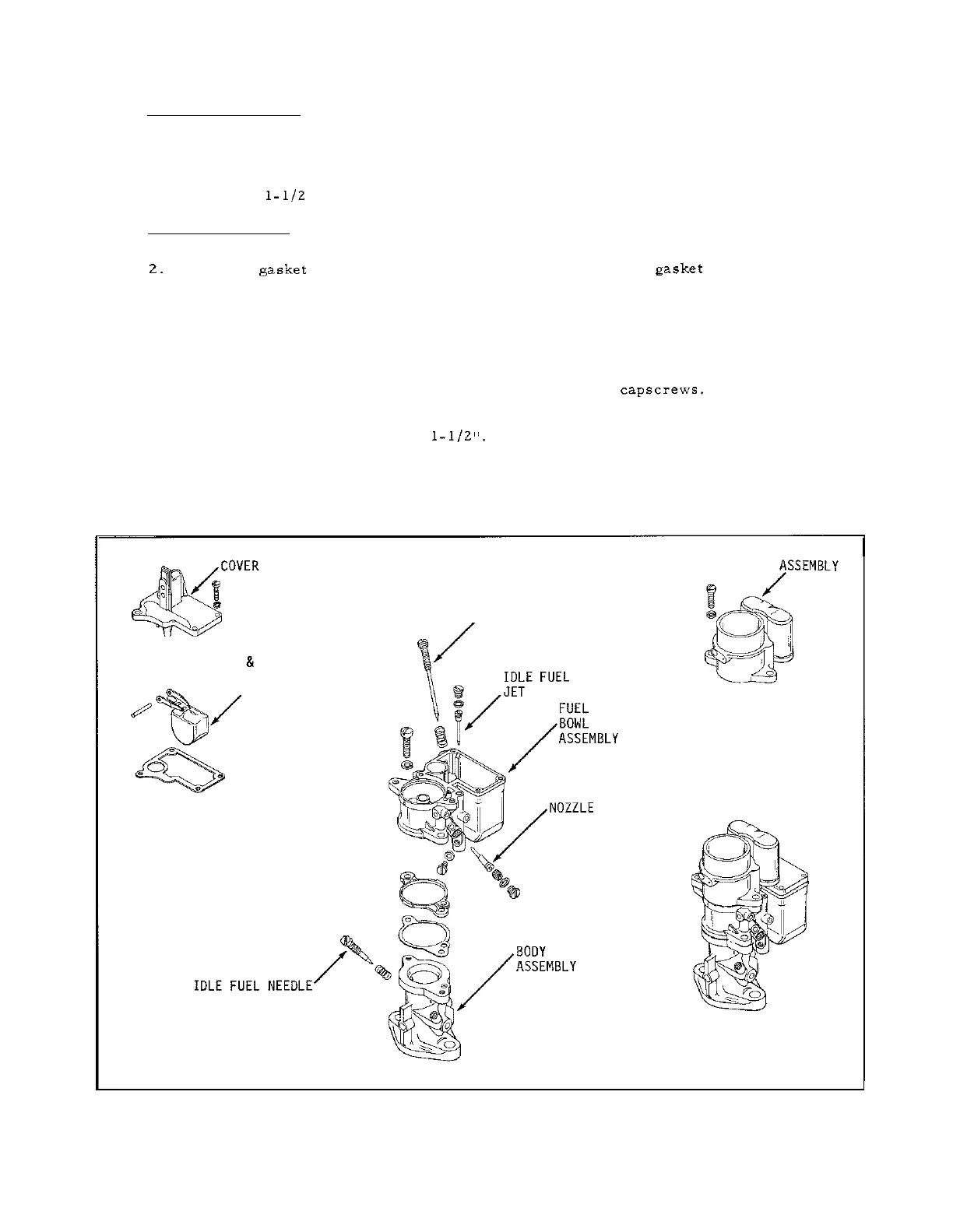

FIGURE 4 - 8 -- DOWNDRAFT CARBURETOR - - K662
