AND CUP
I I

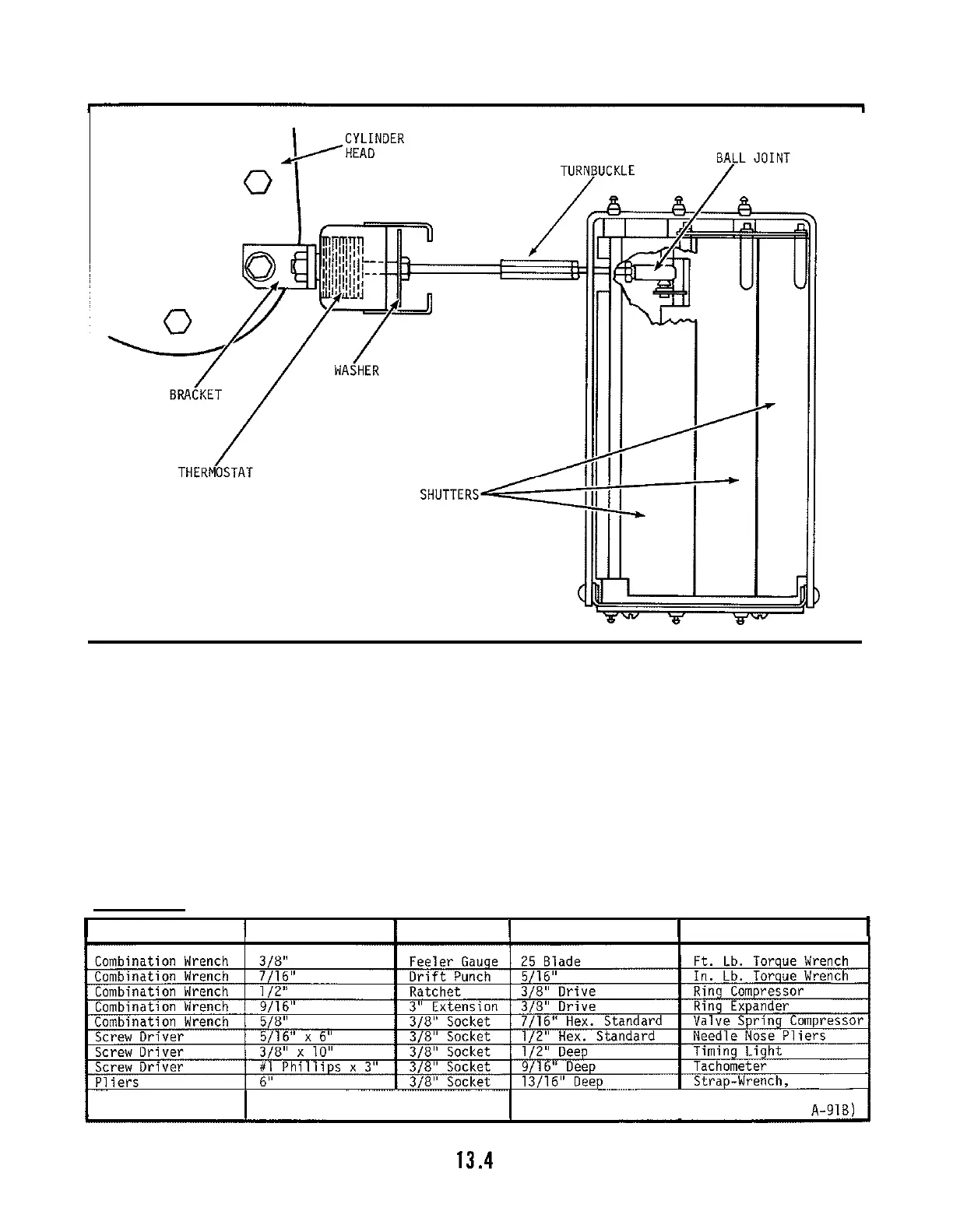

FIGURE 13 - 5 - - THERMOSTATICALLY OPERATED AIR SHUTTER UNIT
The carburetor de - icer unit is connected to the scroll with a flexible hose positioned so that
heated air is forced up into the heat baffles surrounding the carburetor.
When the shutters
are closed,
more warm air
is forced into the de - icer -- as the shutters open wider, a decreasing amount of air is
directed to the unit.
Thermostatic shutter units are adjusted in the factory,
however, slight readjustment may have
to
be made to suit local weather conditions. A turnbuckle is provided in the linkage for adjustment of
shutters. To adjust, loosen locknut then move turnbuckle to reposition angle of shutters. Adjustment
is made on cold engine.
TOOL LISTING
Common Tools: Following is a list of tools commonly used in servicing Kohler Engines:
1 DESCRIPTION I SIZE I DESCRIPTION I SIZE I DESCRIPTION I
I
Ball Peen Hammer 12 oz. Oil Filter Removal
(Snap
- On Tool A-91B)

Kohler K532 Specifications

General

Compression Ratio	8.5:1
Cooling System	Air-cooled
Fuel Type	Gasoline
Ignition System	Electronic
Starting System	Electric start
Displacement	532 cc
Horsepower	18 HP
