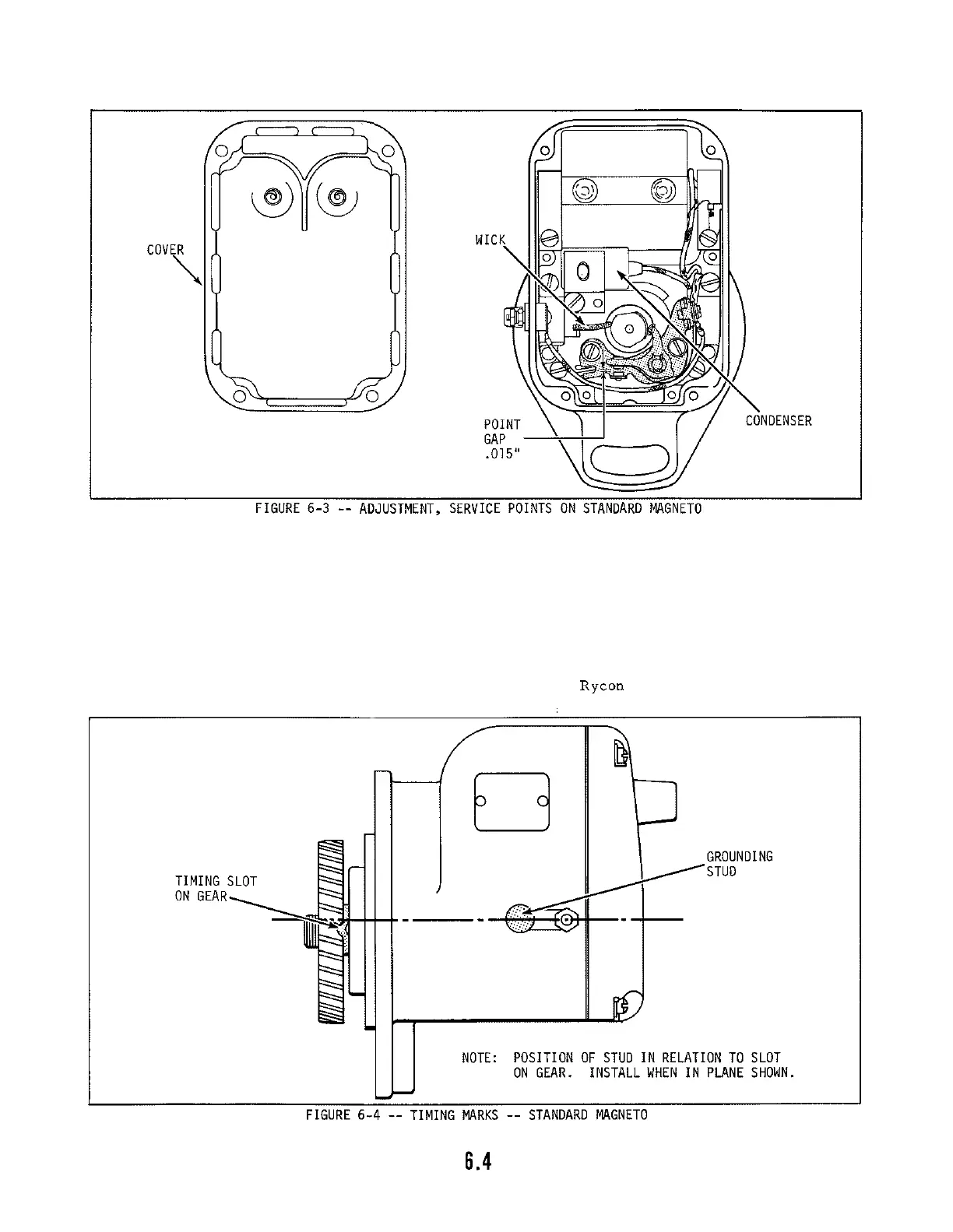

If contact points are badly worn or pitted, they must be replaced.
Do not replace only one con
-
tact -- replace both the fixed contact and contact on breaker arm. Replace as follows:
1. Remove breaker spring contact screw then breaker arm lock and washer.
2.
Lift breaker arm off pivot - - discard arm.
3.
Remove the two breaker plate contact screws then remove and discard the fixed contact
plate.
4. Position and secure new contact plate and breaker arm then adjust breaker point gap per
instructions stated in the foregoing.
5. Replace old cam wick with new wick -- lubricate with Rycon grease.

Kohler K532 Specifications

General

Compression Ratio	8.5:1
Cooling System	Air-cooled
Fuel Type	Gasoline
Ignition System	Electronic
Starting System	Electric start
Displacement	532 cc
Horsepower	18 HP
