REGULATOR
Low Oil Pressure -
Indicating Lamp 5

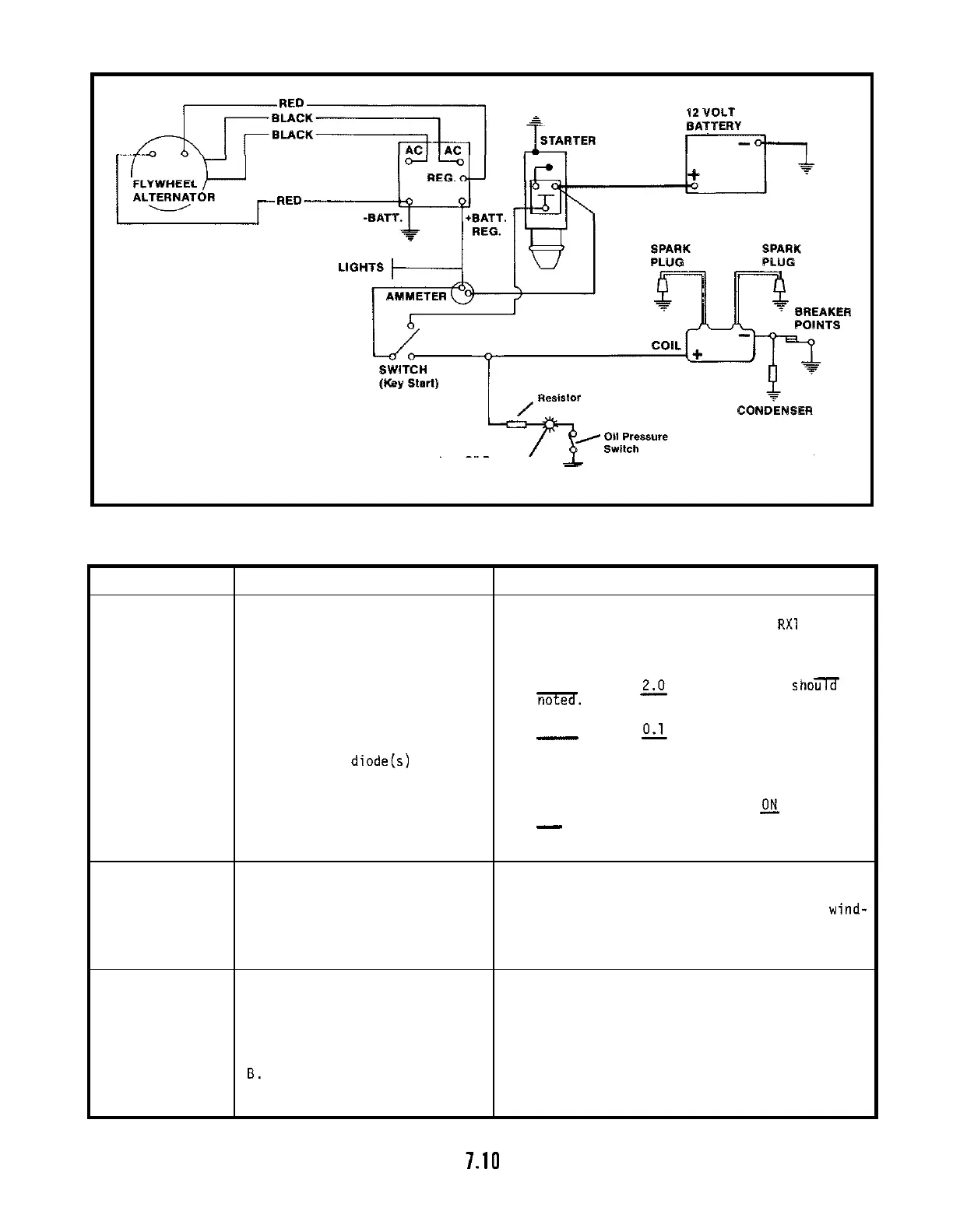

FIGURE 7 - 11 -- WIRING DIAGRAM -- 30 AMP ALTERNATOR SYSTEM WITH OIL PRESSURE INDICATOR AND SWITCH
TROUBLE ANALYSIS - 30 AMP ALTERNATOR SYSTEM
CONDITION
NO OUTPUT
NO CHARGE
(When load
applied to
battery)
FULL CHARGE
-
NO REGULATION
POSSIBLE FAULT
A. Faulty windings in stator
B. Defective
diode(s) in
rectifier
A. Faulty regulator winding
A. Faulty regulator winding
8. Defective regulator
TEST AND CORRECTIVE ACTION
A.
Remove four input leads from Rectifier
-
Regulator.
Check resistance on
RX1 scale
of Ohmmeter.
Replace stator
if readings not
at test values. Test with engine stopped
Test 1
- Connect Ohmmeter leads to 2 red
leads - about 2.0 ohms resistance shorn be
m.
Test 2 - Connect Ohmmeter leads to 2 black
leads - about g ohms should be noted.
-
B. With engine stopped, connect leads of flash -
light type continuity tester between BAT - NEG
and one of the AC terminals then reverse
these leads
- - lamp should turn ON one way and
OFF the other. Repeat procedure on the other
-
AC terminal.
If lamp indication is the same
both ways, diode is faulty.
A. Remove red lead from
" REG. " terminal on
Rectifier
- Regulator.
Start engine and
operate at full speed. With regulator
wind-
ing disconnected, alternator should charge
at full output. Replace stator
if full out -
put of at least 30 amps is not attained.
A.
Remove
2 red leads from Rectifier - Regula -
tor -- connect these two leads together then
start engine and operate at full speed. A
maximum
4 amp charge should be noted if sta -
tor is OK.
B.
If stator checks out, trouble is in regulator
portion of Rectifier
- Regulator.
Replace
unit.

Kohler K532 Specifications

General

Compression Ratio	8.5:1
Cooling System	Air-cooled
Fuel Type	Gasoline
Ignition System	Electronic
Starting System	Electric start
Displacement	532 cc
Horsepower	18 HP
