Kohler KD62V12

Service and Repair Manual Repair
Fuel system

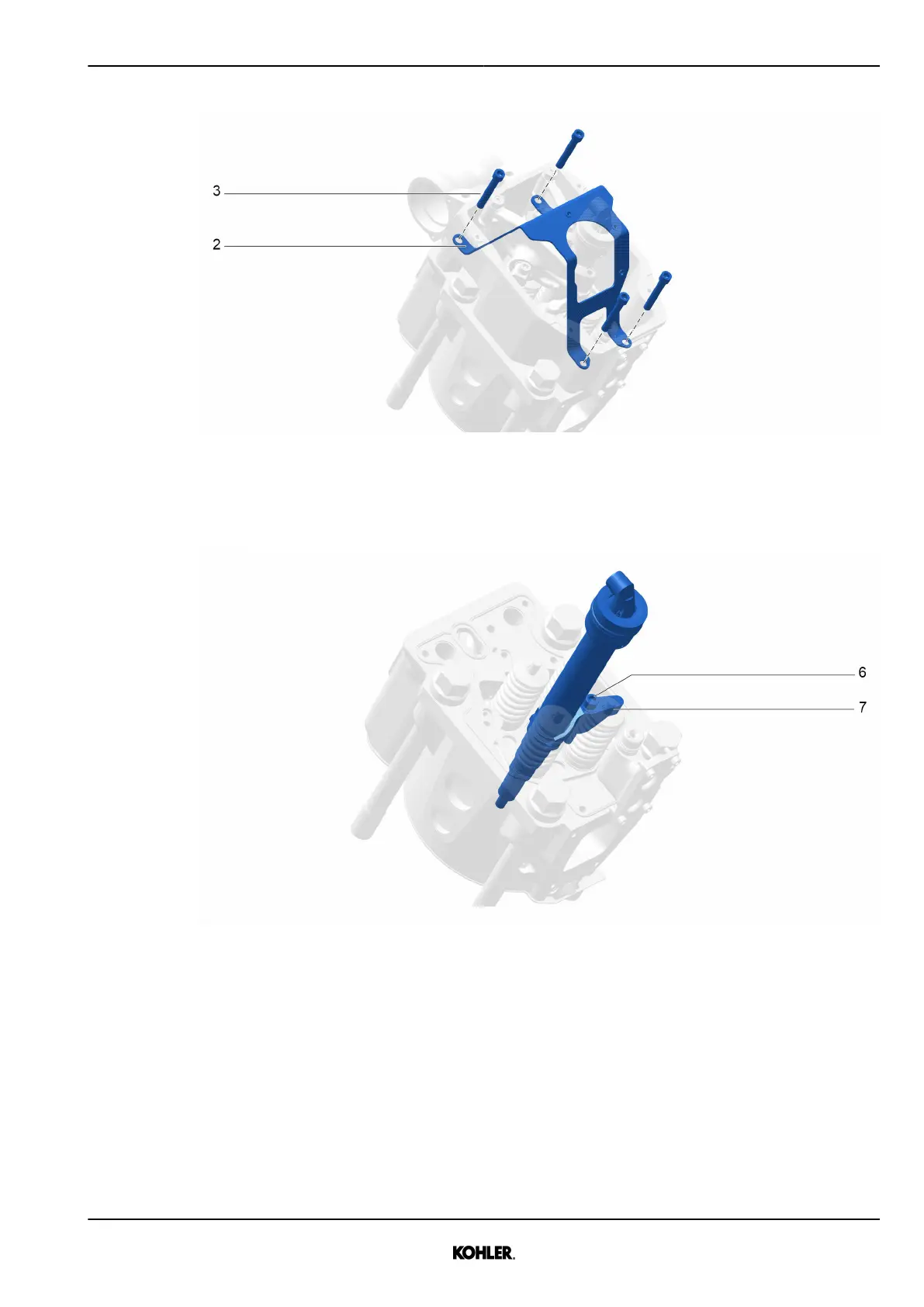

Fig. 135: Removing retaining plate
u Remove retaining plate 2 with screws 3.
u Close all open connections with the matching plugs (available as replacement parts).
Fig. 136: Removing clamp
u Remove clamp 7 by opening screw 6.
KD62V12 33525088601_7_1 EN_US
2021-07
© 2021 by Kohler Co. All rights reserved.
121
