Charge air system
Removal

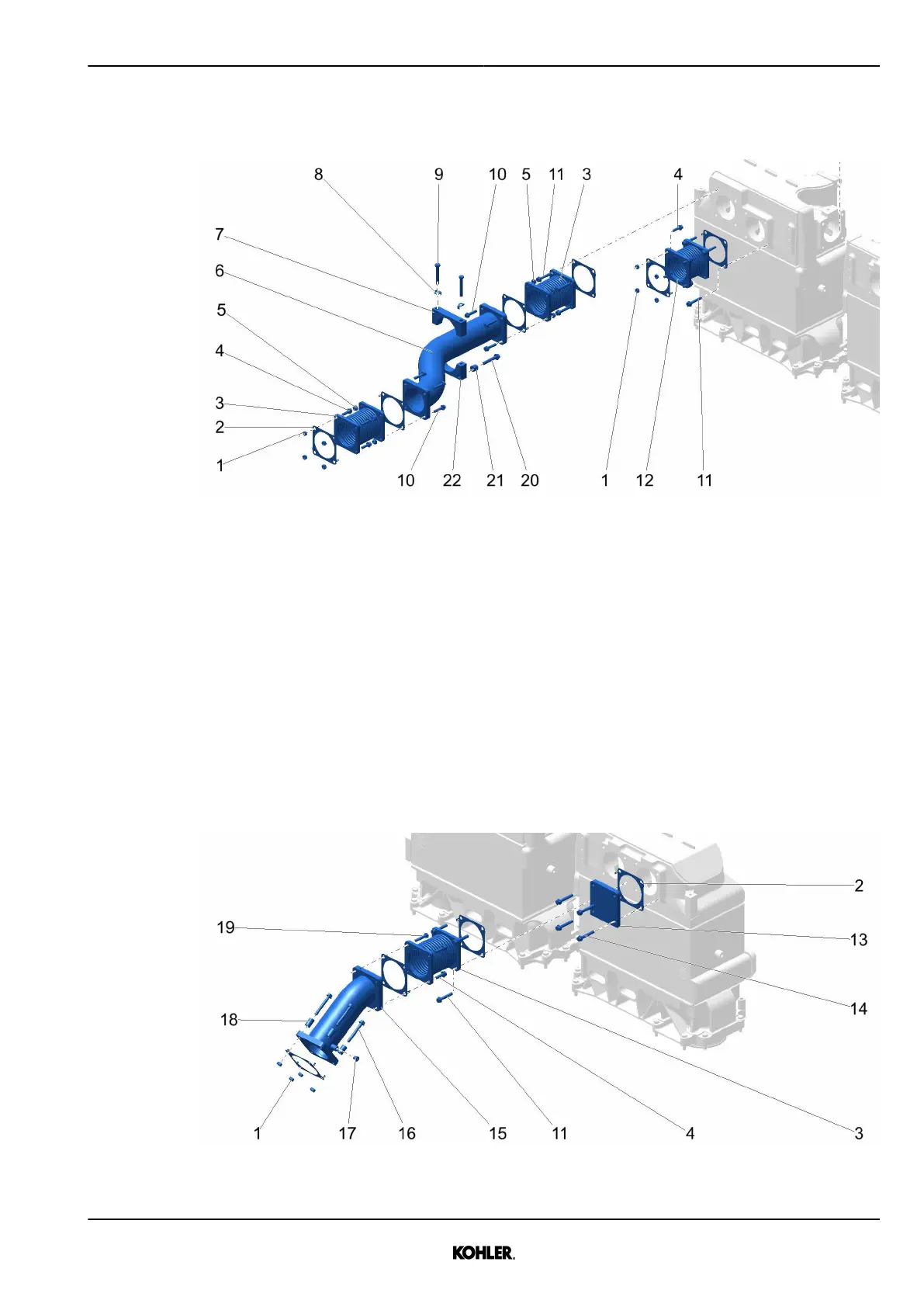

Fig. 163: Removing charge air lines
u Remove screws 4, 10 with nuts 1, 5.
u Remove compensator 3 with seals 2.
u Remove screws 9, 20 with locking plates 8 and distance sleeves 21.
u Remove clamps 7, 22.
u Remove screws 10 with nuts 1.
u Remove pipe 6.
u Remove screws 11.
u Remove compensator 3 with seals 2.
u Remove screws 4, 11 with nuts 1.
u Remove compensator 12 with seals 2.
Fig. 164: Removing charge air lines
KD62V12 33525088601_7_1 EN_US
2021-07
