Charge air system
u Remove screws 14.
u Remove end cover 13 with seal 2.
u Remove screws 16, distance sleeves 18 and nuts 1.
u Remove screws 4, 19.
u Remove pipe 15
u Remove screws 11.
u Remove compensator 3 with seal 2.

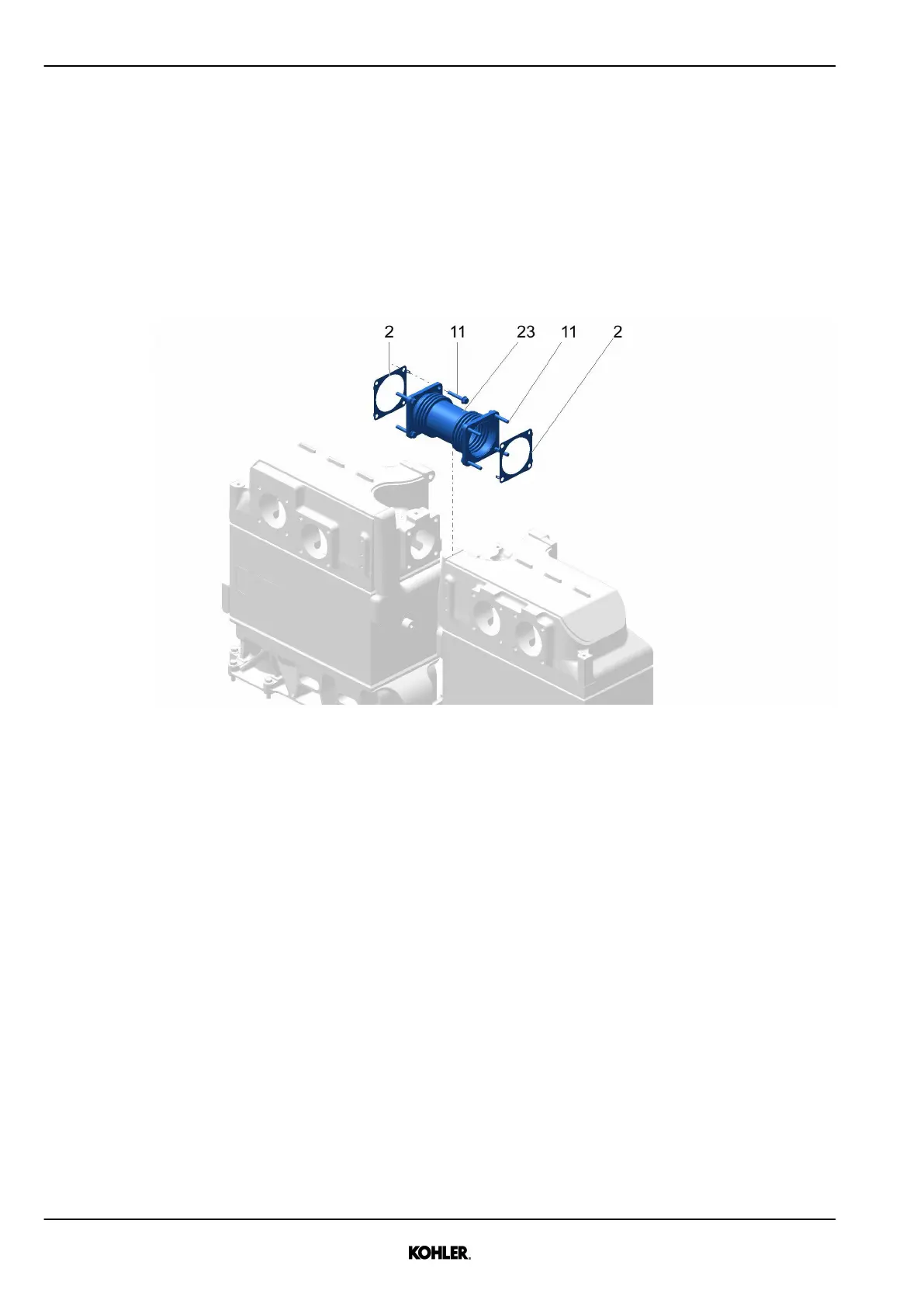

Fig. 165: Removing compensator - Without EATS
u Remove screws 11.
u Remove compensator 23 with seals 2.
