Service and Repair Manual Repair
Charge air system

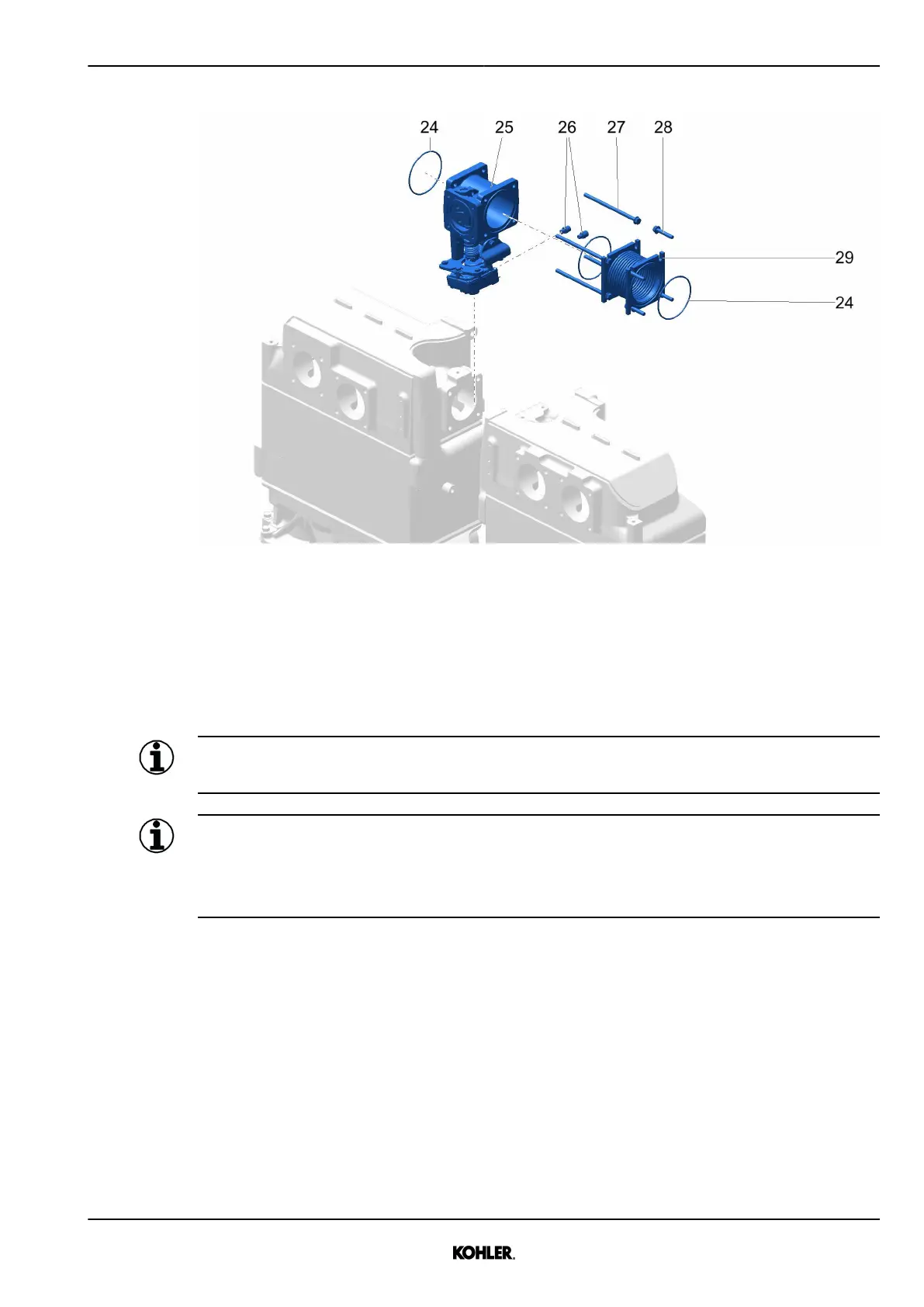

Fig. 166: Removing flap with actuator - With EATS
u Remove screws 27, 28.
u Remove compensator 29 with o-rings 24.
u Remove flap with actuator 25.
Installation
Information
Preassemble all seals on compensators.
Information
At first, install the whole line without tightening the screws.
Tighten all screws to torque at the end of installation, making sure that compensators are aligned
evenly.
KD62V12 33525088601_7_1 EN_US
2021-07
