Service and Repair Manual Repair
Charge air system
Information
Bend locking plates 8 after assembly.
u Tighten screws 9 to torque.

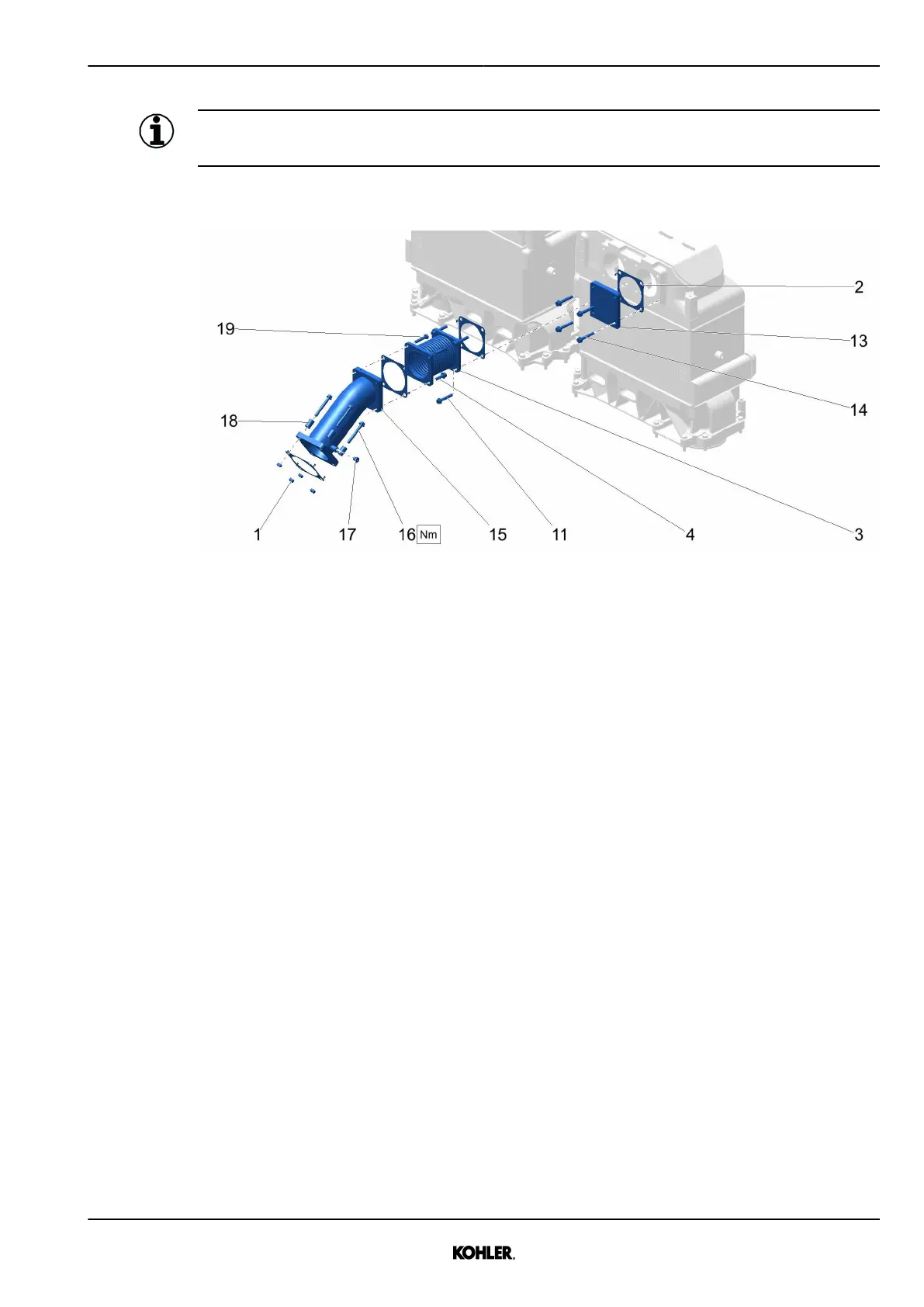

Fig. 169: Installing compensators and charge air lines
u Screw end cover 13 to charge air cooler with screws 14 and seal 2.
u Assemble pipe 15 with compensator 3 using screws 4, 19 and seal 2.
u Screw assembly to charge air cooler with screws 11 and seal 2.
u Screw assembly to turbocharger with screws 16, distance sleeves 18, seal 2 and nuts 1.
u Install screw plug 17.
u Tighten screws 16 to torque.
KD62V12 33525088601_7_1 EN_US
2021-07
© 2021 by Kohler Co. All rights reserved.
147
