Charge air system

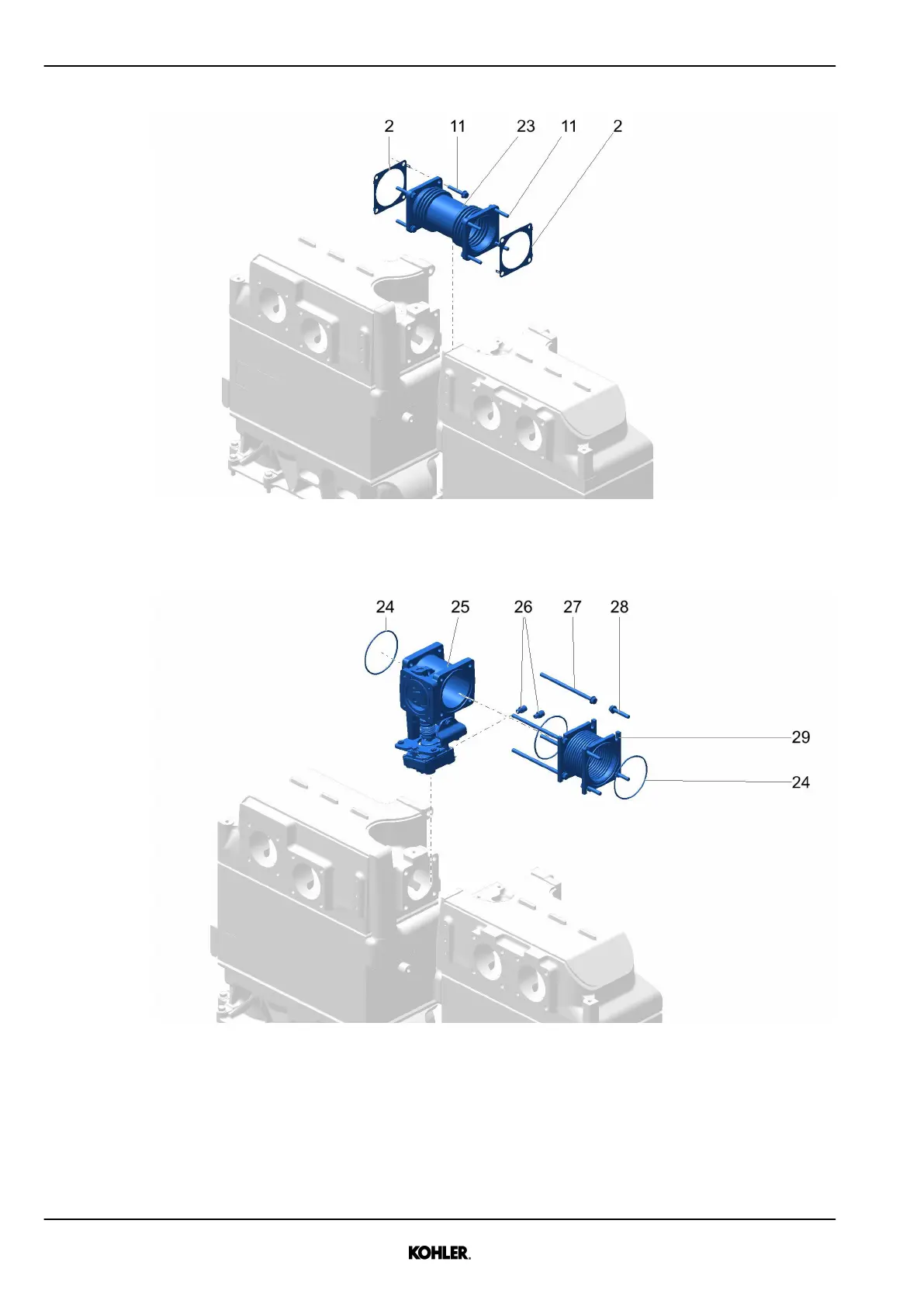

Fig. 170: Installing compensator - Without EATS
u Screw compensator 23 with screws 11 and seals 2.
Fig. 171: Installing flap with actuator - With EATS
u Install flap with actuator 25 and compensator 29 with screws 27, 28 and o-rings 24
Specific values
Not applicable.
