Exhaust gas system
Overview

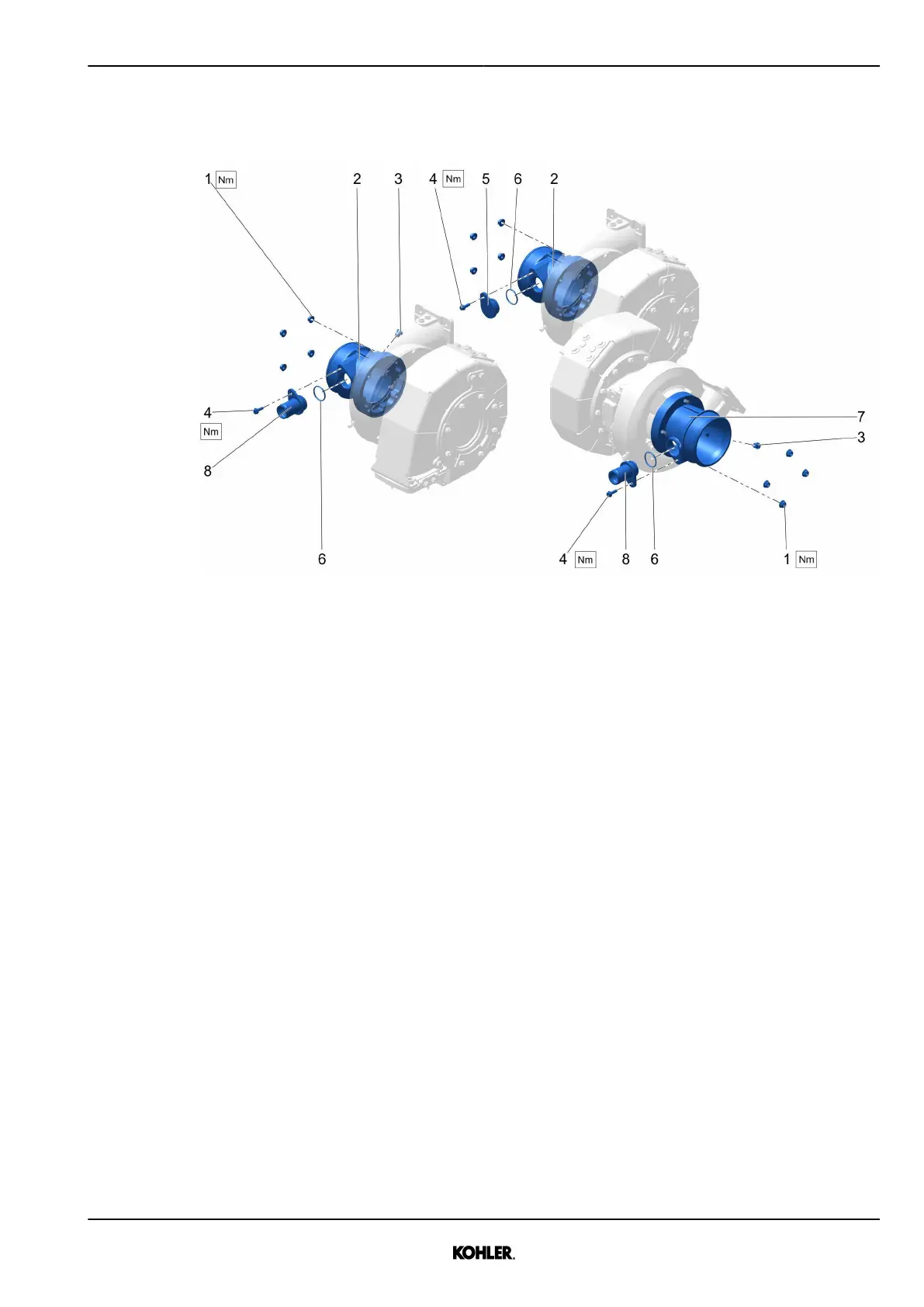

Fig. 176: Task overview
1 Nut 5 Flange
2 Straight air intake connection 6 O-ring
3 Plug 7 Straight air intake connection
4 Screw (M8) 8 Flange
Removal
u Remove nuts 1.
u Remove straight air intake connections 2, 7.
Installation
u Install straight air intake connections 2, 7 with nuts 1.
u Install flanges 5, 8 with o-rings 6 and screws 4.
u Install plugs 3 in straight air intake connections 2, 7.
Specific values
Not applicable.
KD62V12 33525088601_7_1 EN_US
2021-07
© 2021 by Kohler Co. All rights reserved.
155
