Kohler KD62V12

Service and Repair Manual Repair
Exhaust gas system
4 Plate 11 Screw (M10)
5 Screw (M8) 12 Orifice
6 Screw (M8) 13 O-ring
7 Distribution block

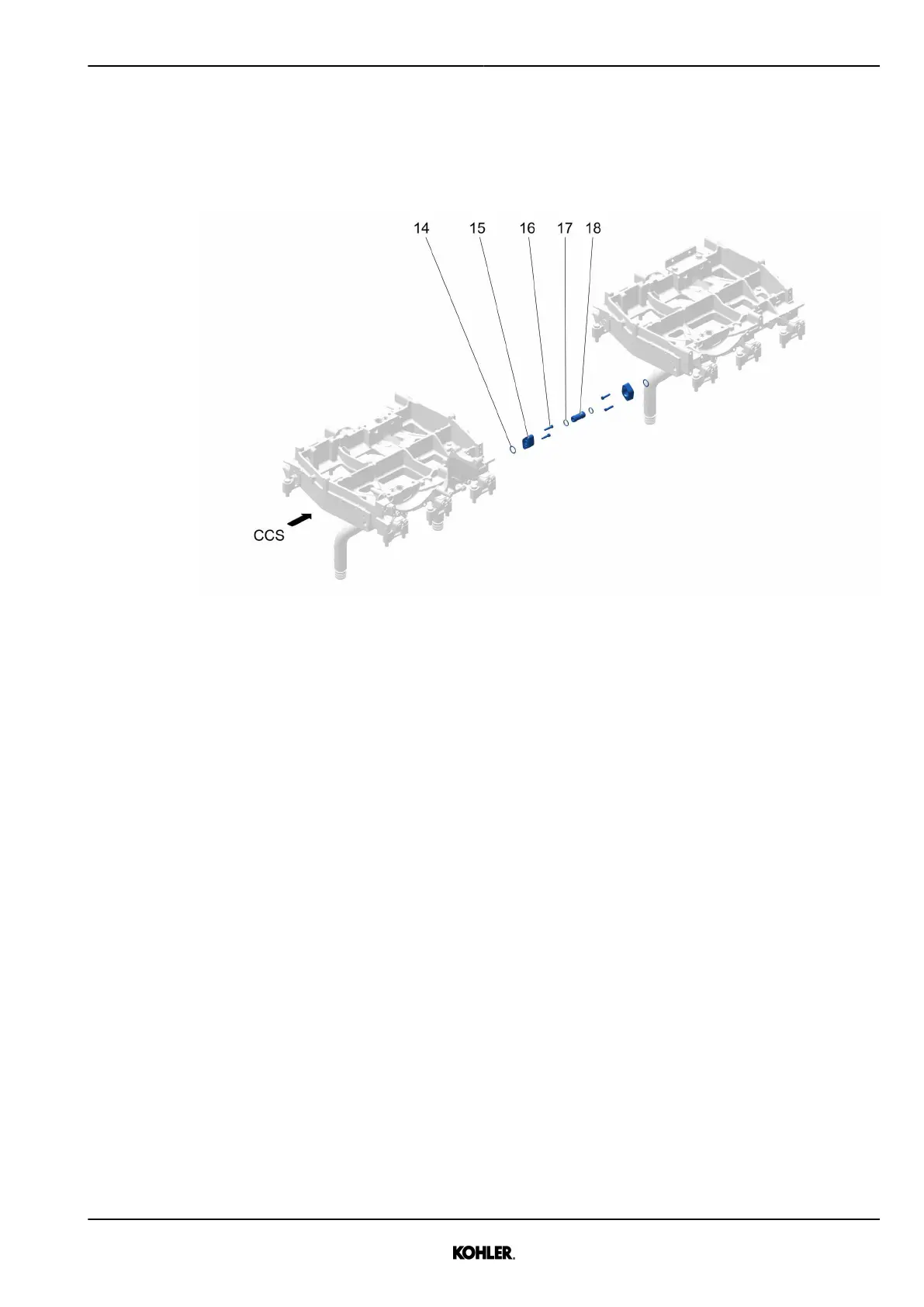

Fig. 193: Task overview
14 O-ring 17 O-ring
15 Flange 18 Pipe
16 Screw (M8)
KD62V12 33525088601_7_1 EN_US
2021-07
© 2021 by Kohler Co. All rights reserved.
171
