Product description Service and Repair Manual
Technical description

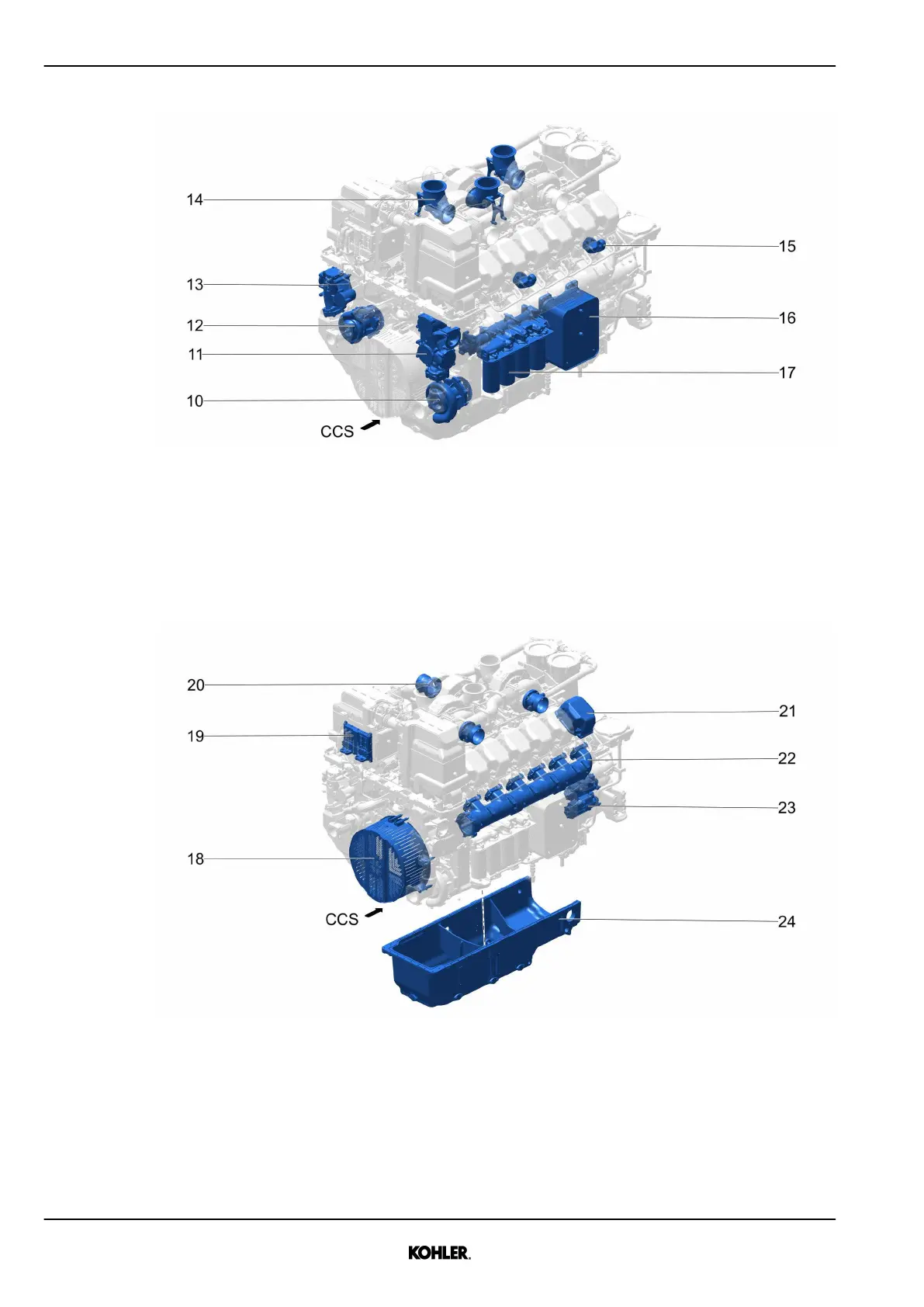

Fig. 2: Diesel engine / view from the vibration damper side
CCS Counter coupling side (vibration damper
side)
14 Exhaust gas connection
10 Coolant pump high temperature 15 Lifting lug
11 Thermostat housing high temperature 16 Oil cooler
12 Coolant pump low temperature 17 Oil filter (lubricating and cooling oil)
13 Thermostat housing low temperature
Fig. 3: Diesel engine / view from the vibration damper side
CCS Engine front (vibration damper side) 21 Cylinder head cover
18 Vibration damper cover 22 Charge air pipe
19 Engine control unit (ECU) 23 Starter
20 Air intake 24 Oil pan
18
© 2021 by Kohler Co. All rights reserved.
KD62V12 33525088601_7_1 EN_US
2021-07
