Service and Repair Manual Repair
Exhaust gas system
q Remove exhaust gas turbocharger bracket. (For more information see: 3.8.5 Turbocharger
brackets removal and installation, page 175.)
Specific safety instructions
WARNING
Risk of injuries by contact with hot surfaces!
Diesel engine is hot near operating temperature.
u Avoid any contact with the Diesel engine, parts carrying hot coolant or oil, the exhaust system,
the exhaust gas turbocharger, the heat protection, the battery, and the covers.
u After the temperature has cooled down to a level it can be touched, proceed with the tasks on
the Diesel engine.
Special tools
Not applicable.
Consumables and equipment
– Hot temperature grease
– Rags
Overview

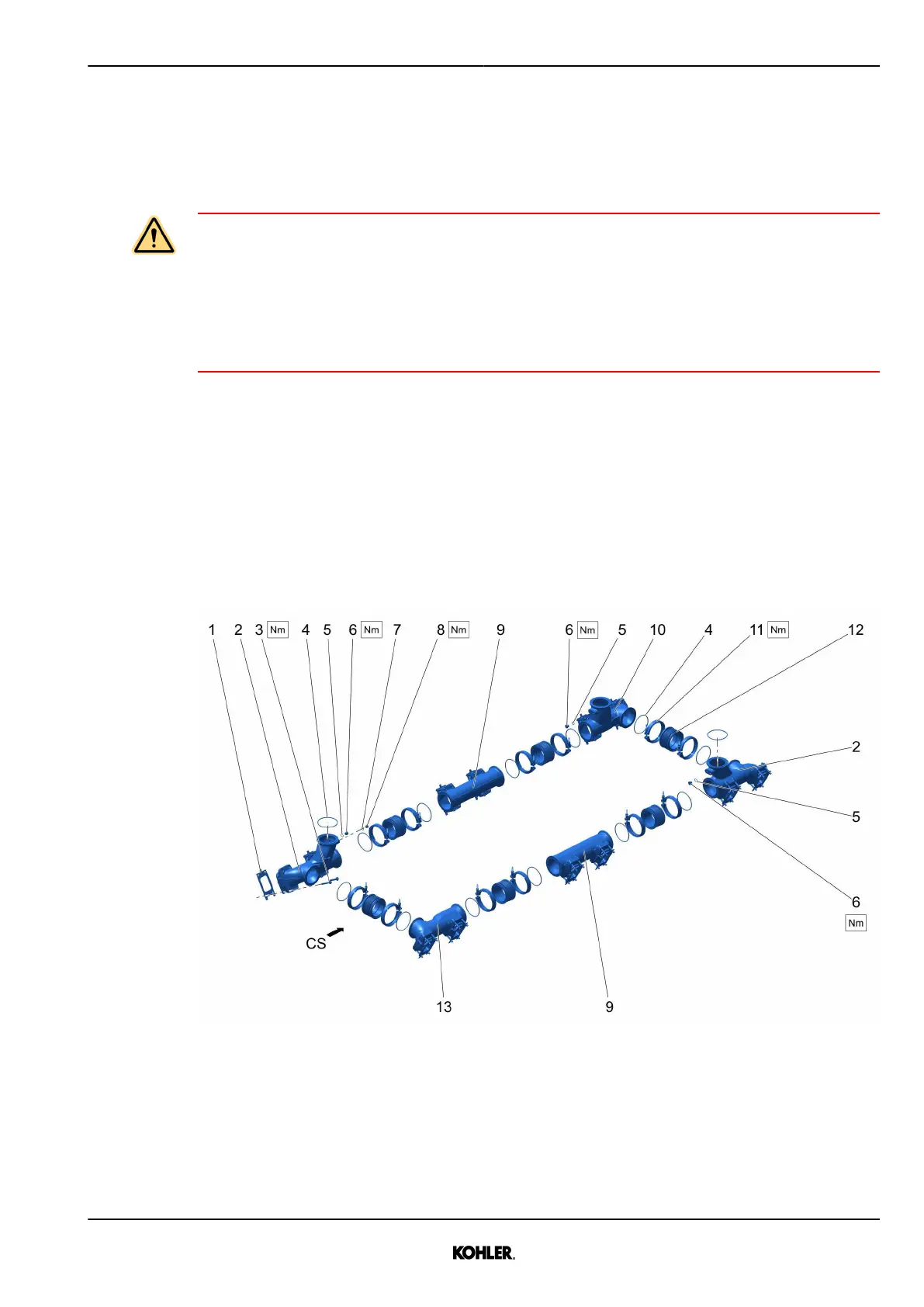

Fig. 208: Task overview
1 Seal 8 Plug
2 Outlet manifold 9 Outlet manifold
3 Screw (M10) 10 Outlet manifold
4 Seal 11 V-clamp
5 Sealing ring 12 Compensator
6 Plug 13 Outlet manifold
7 Sealing ring
