Repair Service and Repair Manual
Cooling system
Special tools
Not applicable.
Consumables and equipment
– Vaseline
– Rags
– Cleaner
Overview

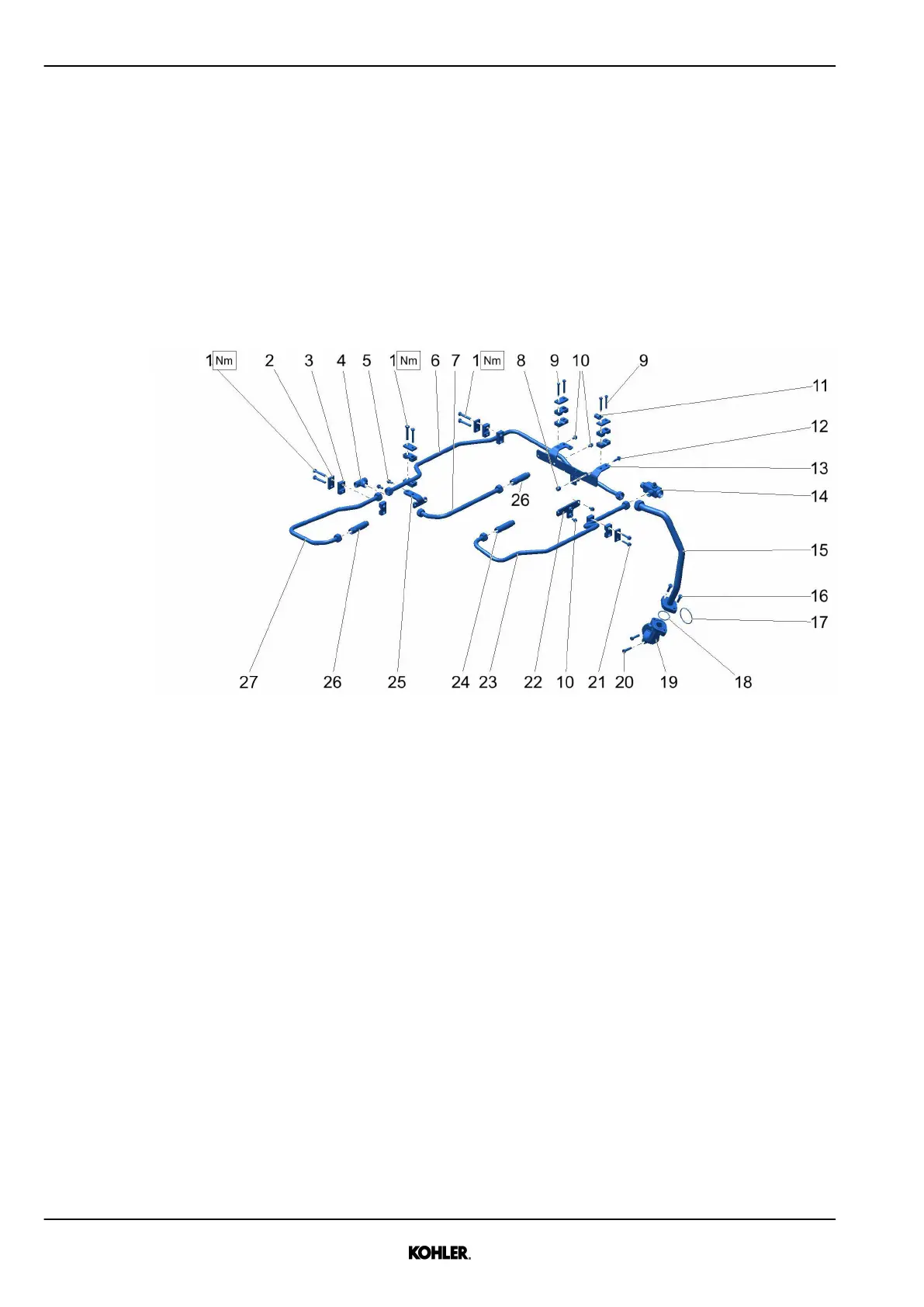

Fig. 235: Task overview
1 Screw (M10) 15 Pipe
2 Plate 16 Screw (M10)
3 Clamp 17 O-ring
4 T connector 18 O-ring
5 Screw (M8) 19 Aggregate support connector
6 Pipe 20 Screw (M10)
7 Pipe 21 Screw (M8)
8 Distance sleeve 22 Retaining plate
9 Screw (M8) 23 Pipe
10 Screw (M8) 24 Fitting
11 Clamp 25 Retaining plate
12 Screw (M8) 26 Fitting
13 Retaining plate 27 Pipe
14 Adaptor
210
© 2021 by Kohler Co. All rights reserved.
KD62V12 33525088601_7_1 EN_US
2021-07
