Kohler KD62V12

Repair Service and Repair Manual
Cooling system
u Remove plates 2 and clamps 3.
u Remove clamp 11.
u Remove screws 16, 20.
u Remove aggregate support connector 19.
u Loosen connection nuts of pipes 6, 7, 15, 23, 27.
u Remove fittings 24, 26.
Information
Fittings 24, 26 have different internal diameters, depending on the side of the engine.
Make a note of which kind of fitting is installed on which side of the engine.
u
Remove screws 10, 12 and distance sleeve 8.
u Remove retaining plate 13.
u Remove screws 5.
u Remove retaining plate 25.
u Remove screws 10.
u Remove retaining plate 22.

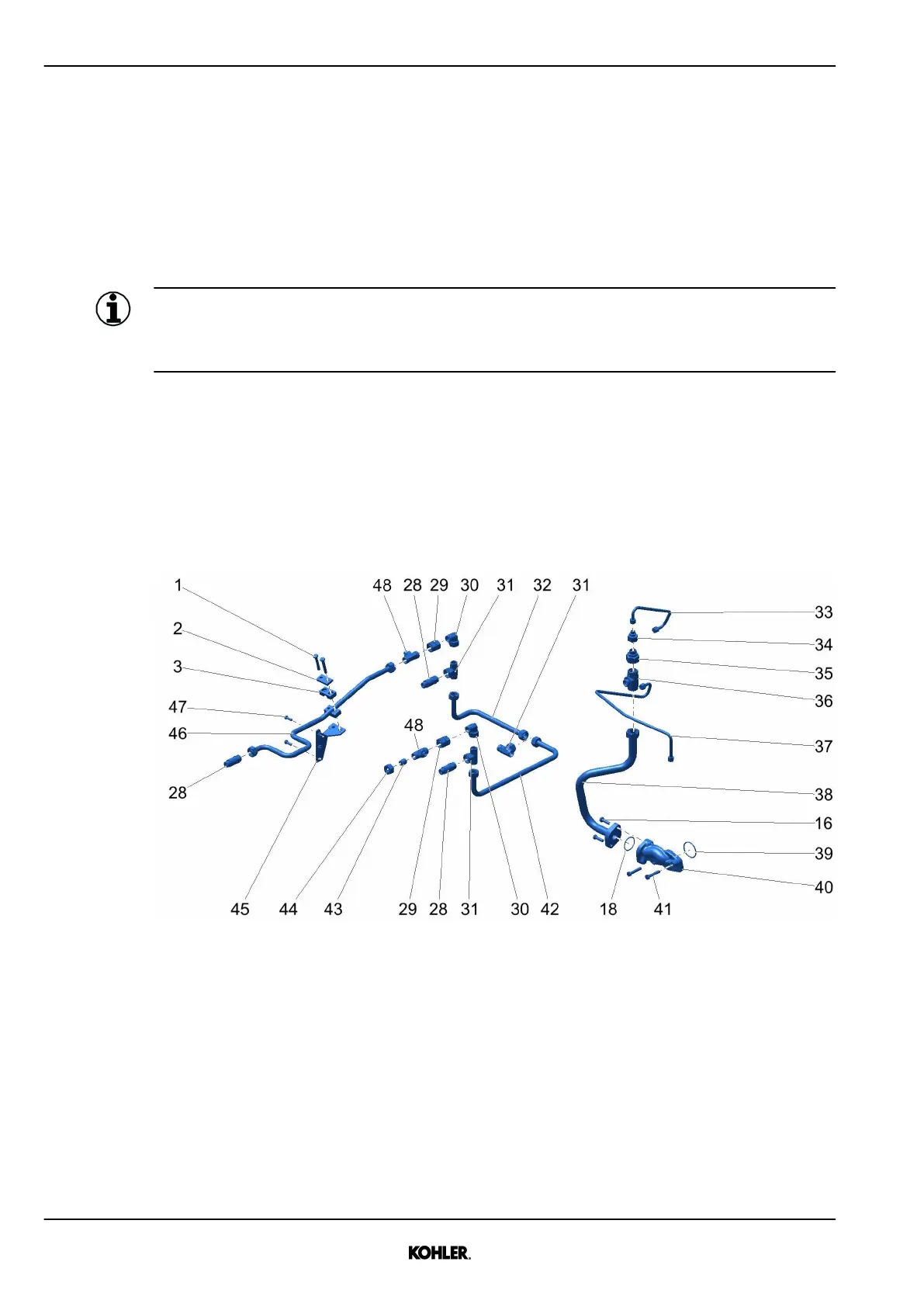

Fig. 238: Removing pipes
u Remove screws 1.
u Remove plates 2 and clamps 3.
u Remove screws 47.
u Remove retaining plates 45.
u Remove screws 16, 41
u Remove aggregate support connector 40.
u Loosen connection nuts of pipes 32, 33, 37, 38, 42, 46.
