Kohler KD62V12

Service and Repair Manual Repair
Cooling system
Consumables and equipment
– Rags
– Cleaner
– Vaseline
Overview

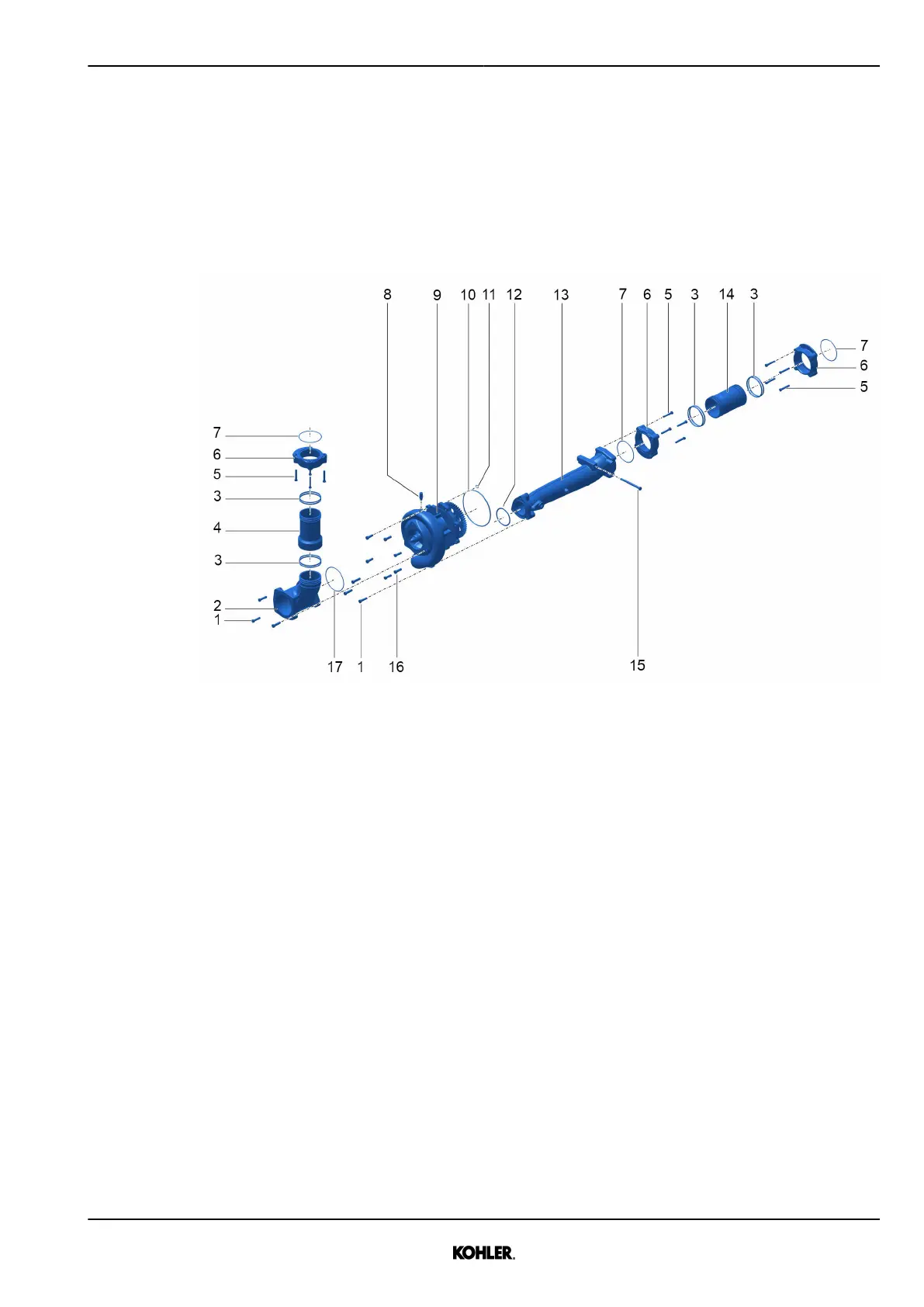

Fig. 247: Task overview
1 Screw (M12) 10 O-ring
2 T-pipe 11 O-ring
3 O-ring 12 O-ring
4 Pipe 13 coolant pipeline
5 Screw (M10) 14 Pipe
6 Flange 15 Screw (M12)
7 O-ring 16 Screw (M12)
8 Test point fitting 17 O-ring
9 Coolant pump HT
Removal
u Remove screws 1, 5.
u Remove piping assemblies 2, 4, 6.
u Remove two screws 16.
u Install guiding rods.
u Remove remaining screws 16.
u Remove coolant pump HT 9.
u Remove screws 5, 15.
u Remove coolant pipe 13 with flange 6.
u Remove pipe 14 with flange 6.
KD62V12 33525088601_7_1 EN_US
2021-07
© 2021 by Kohler Co. All rights reserved.
221
