Service and Repair Manual Repair
Cooling system

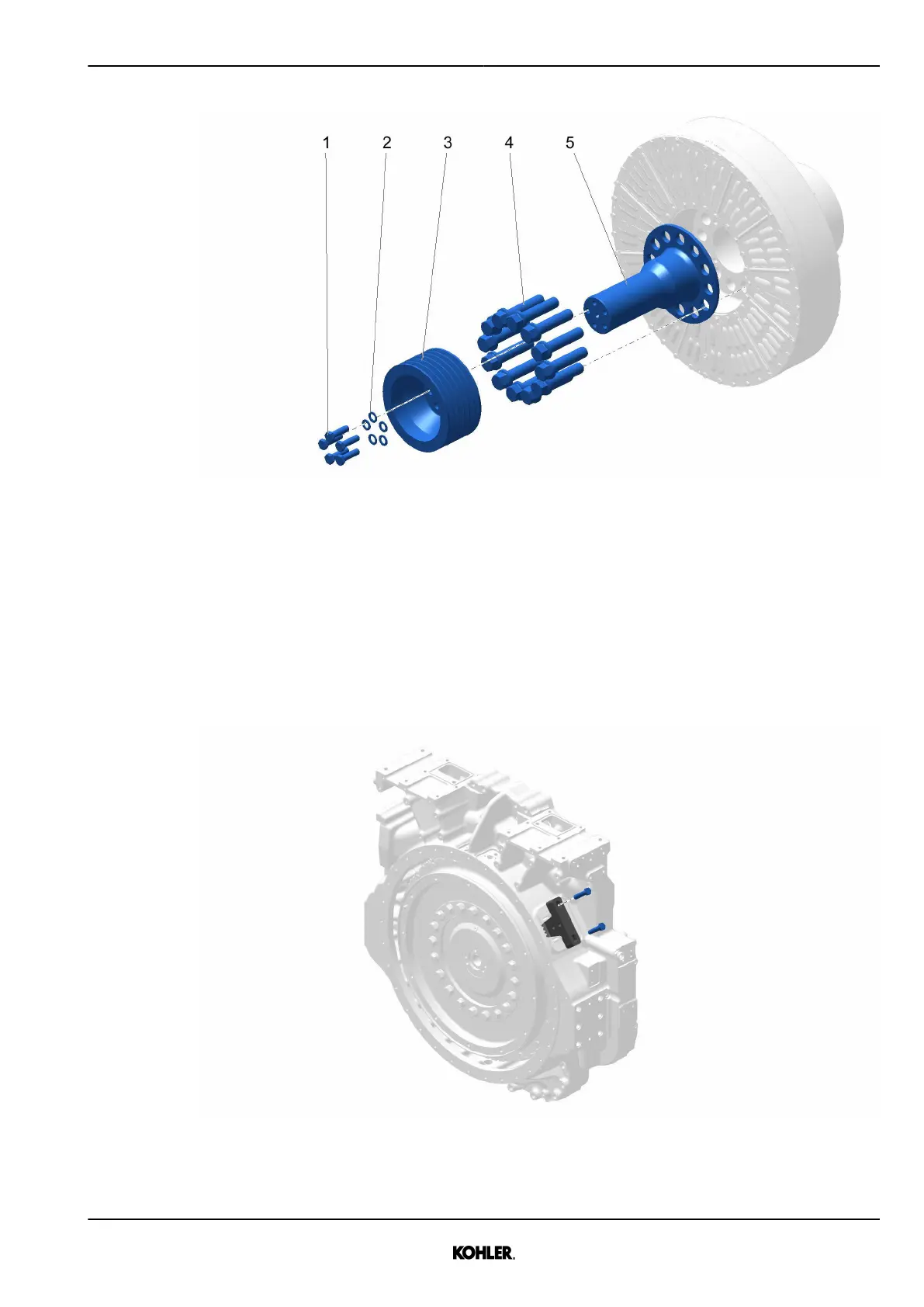

Fig. 254: Removal of fan drive pulley
u Remove screws 1, and washers 2.
u Remove pulley 3.
u Remove screws 4.
u Remove axle 5.
u Remove locking device.
Installation
Fig. 255: Locking device
u Install locking device with screws (M16) to lock crankshaft.
KD62V12 33525088601_7_1 EN_US
2021-07
© 2021 by Kohler Co. All rights reserved.
227
