Cooling system

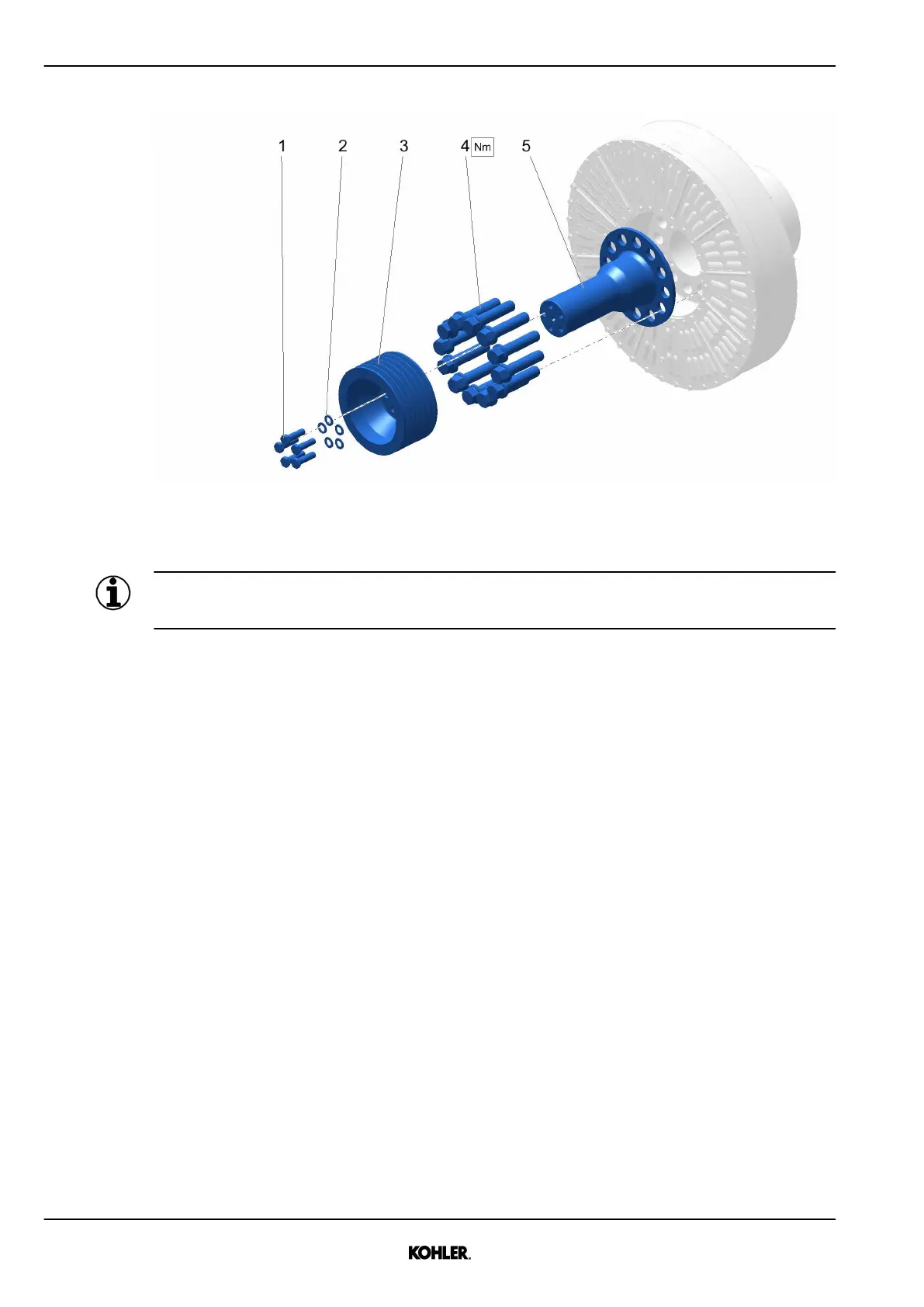

Fig. 256: Installation of fan drive pulley
u Install axle 5 with screws 4.
Information
Observe screws 4 tightening sequence and tightening torque.
u Tighten screws 4 to torque.
u Install pulley 3 with screws 1, and washers 2.
u Tighten screws 1 to torque.
Specific values
Not applicable.
