Service and Repair Manual Product description
Technical description

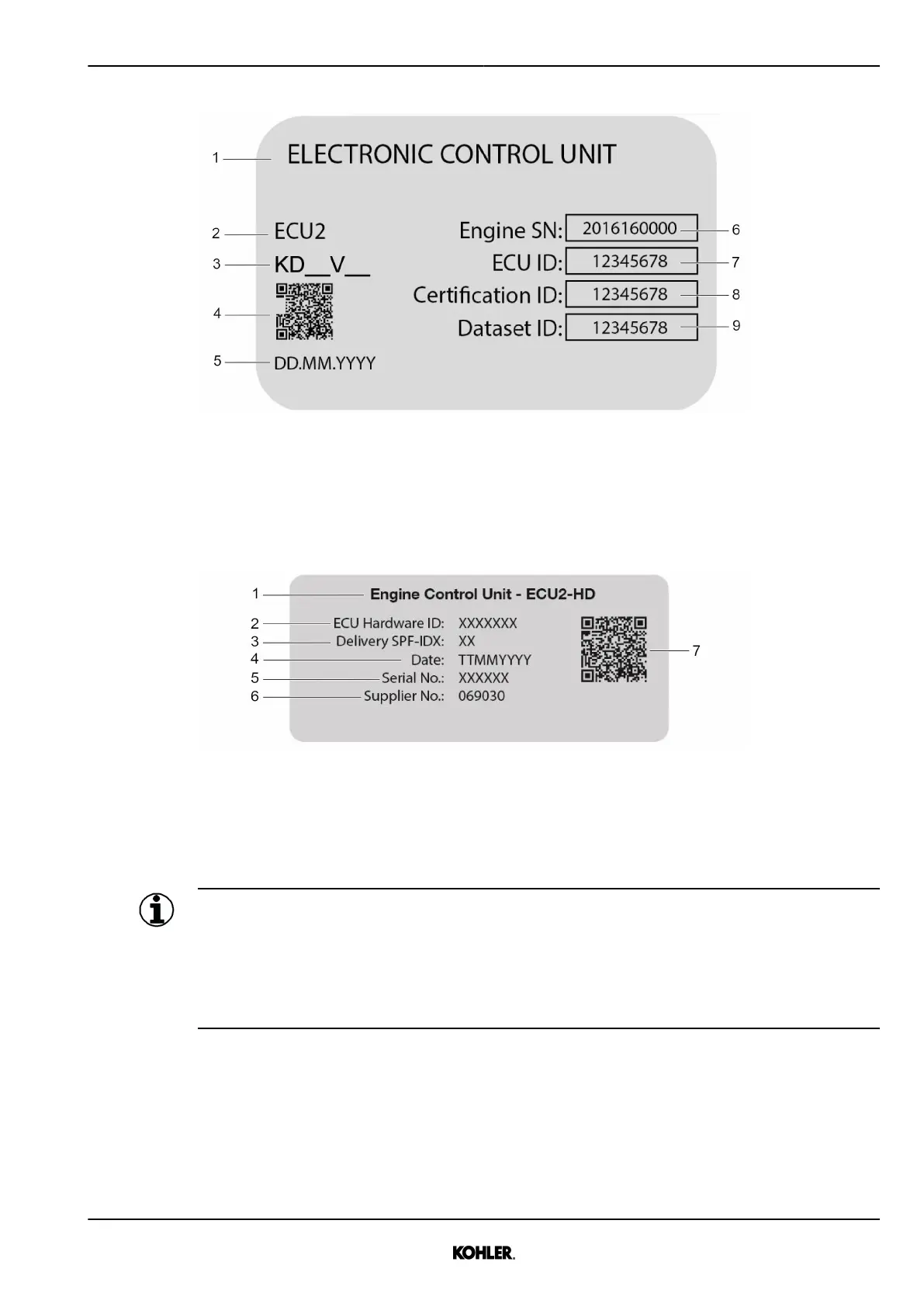

Fig. 10: Software nameplate
1 Product designation 6 Engine serial number
2 Product type 7 Engine control unit ID number
3 Engine designation 8 Certification ID number
4 QR Code 9 Data set ID number
5 Delivery date
Fig. 11: Hardware nameplate
1 Product designation 5 Serial number
2 Engine control unit ID number 6 Supplier number
3 Hardware version 7 QR Code
4 Delivery date
Information
u The information on the engine control unit nameplate corresponds to the delivery status (ex:
works Kohler Co.). Depending on software updates in the field, it may be the case that this infor-
mation is no longer up to date.
u The real information can be viewed in the device display or read out with the KOHLER diag-
nosis and service tool KODIA.
Crankcase identification
The crankcase identification is stamped onto the left side of the crankcase.
KD62V12 33525088601_7_1 EN_US
2021-07
© 2021 by Kohler Co. All rights reserved.
23
