Electrical system

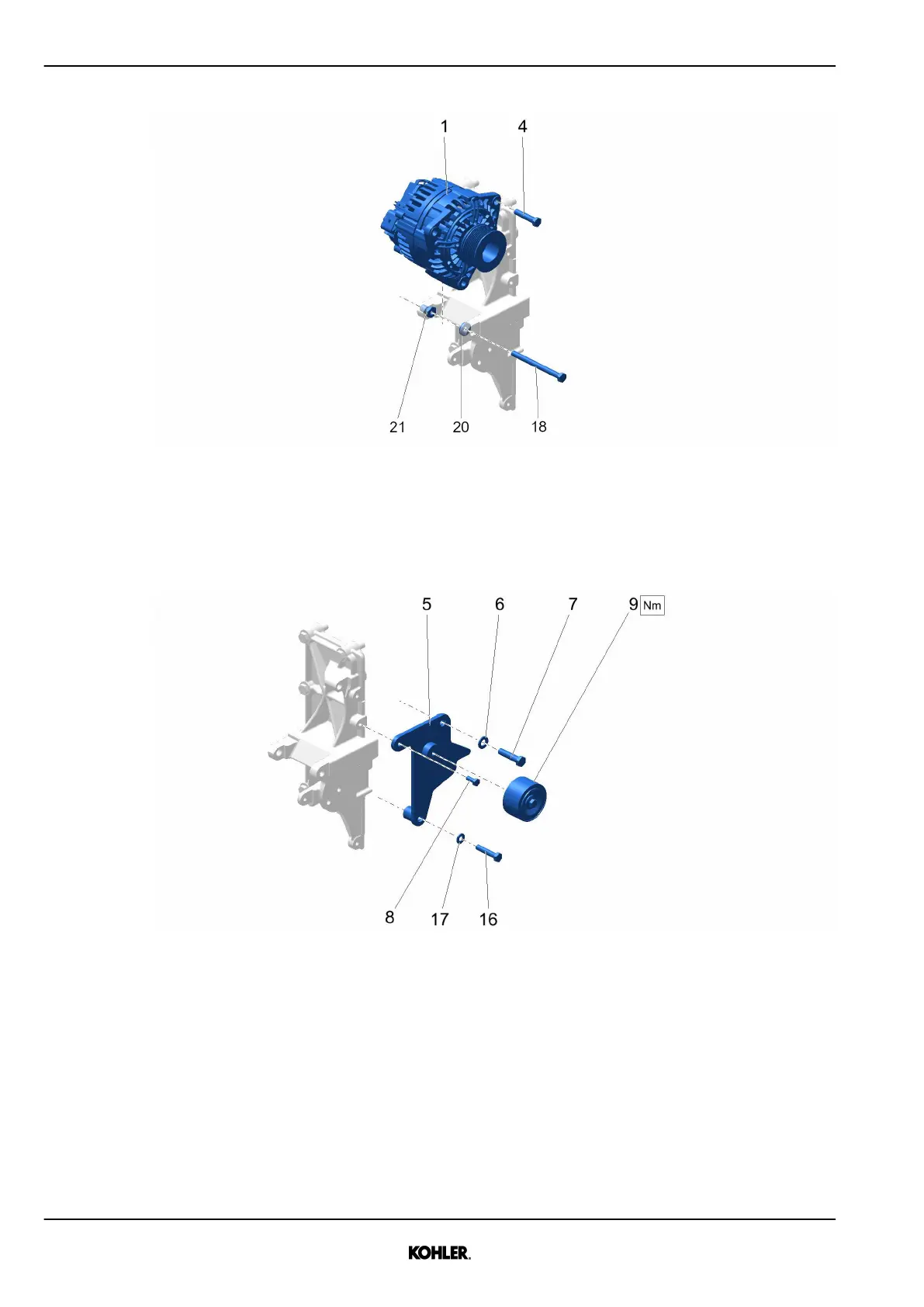

Fig. 267: Installing battery charging alternator
u Insert sleeve 21 into bracket.
u Position battery charging alternator 1 in bracket.
u Install battery charging alternator 1 with screw 4 and screw 18 with distance sleeve 20.
Fig. 268: Installing roller
u Install roller 9 on plate 5.
u Install plate 5 with screws 7, 8, 16 and washers 6, 17.
u Tighten roller 9 to torque.
