Service and Repair Manual Repair
Electrical system

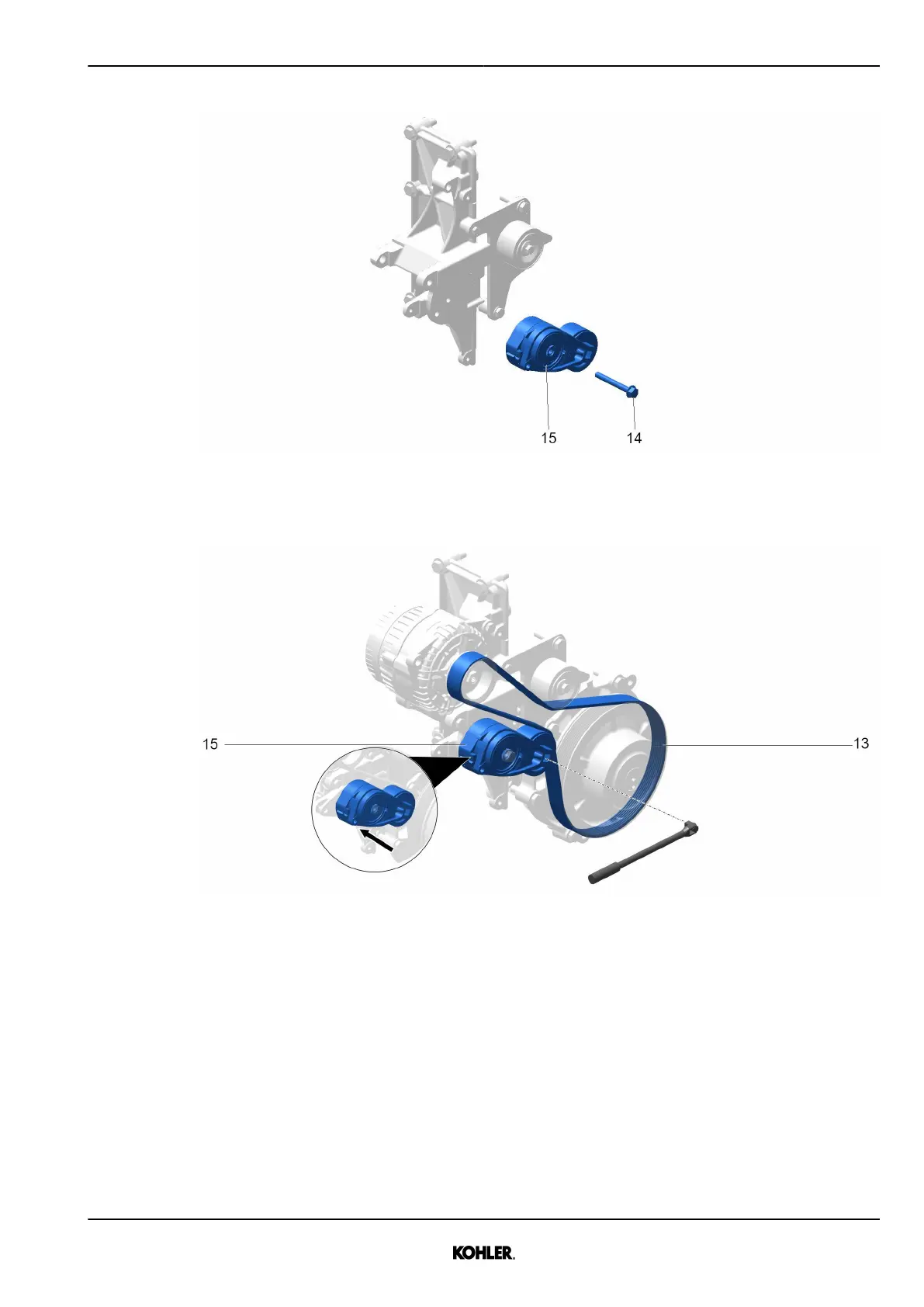

Fig. 269: Installing tensioning device
u Install tensioning device 15 on bracket with screw 14.
Fig. 270: Mounting belt
u Use 1/2” toggle in tensioning device 15.
u Pivot back the tensioning device 15 against the spring force to the limit stop.
u Use a guiding rod in the specified location to lock the tensioning device 15.
u Install belt 13 on the PTO pulley.
u Remove the guiding rod.
u Use 1/2” toggle in tensioning device 15 to tension belt 13.
u Check belt 13 tension.
KD62V12 33525088601_7_1 EN_US
2021-07
© 2021 by Kohler Co. All rights reserved.
237
