Service and Repair Manual Repair
Exhaust aftertreatment system
Overview

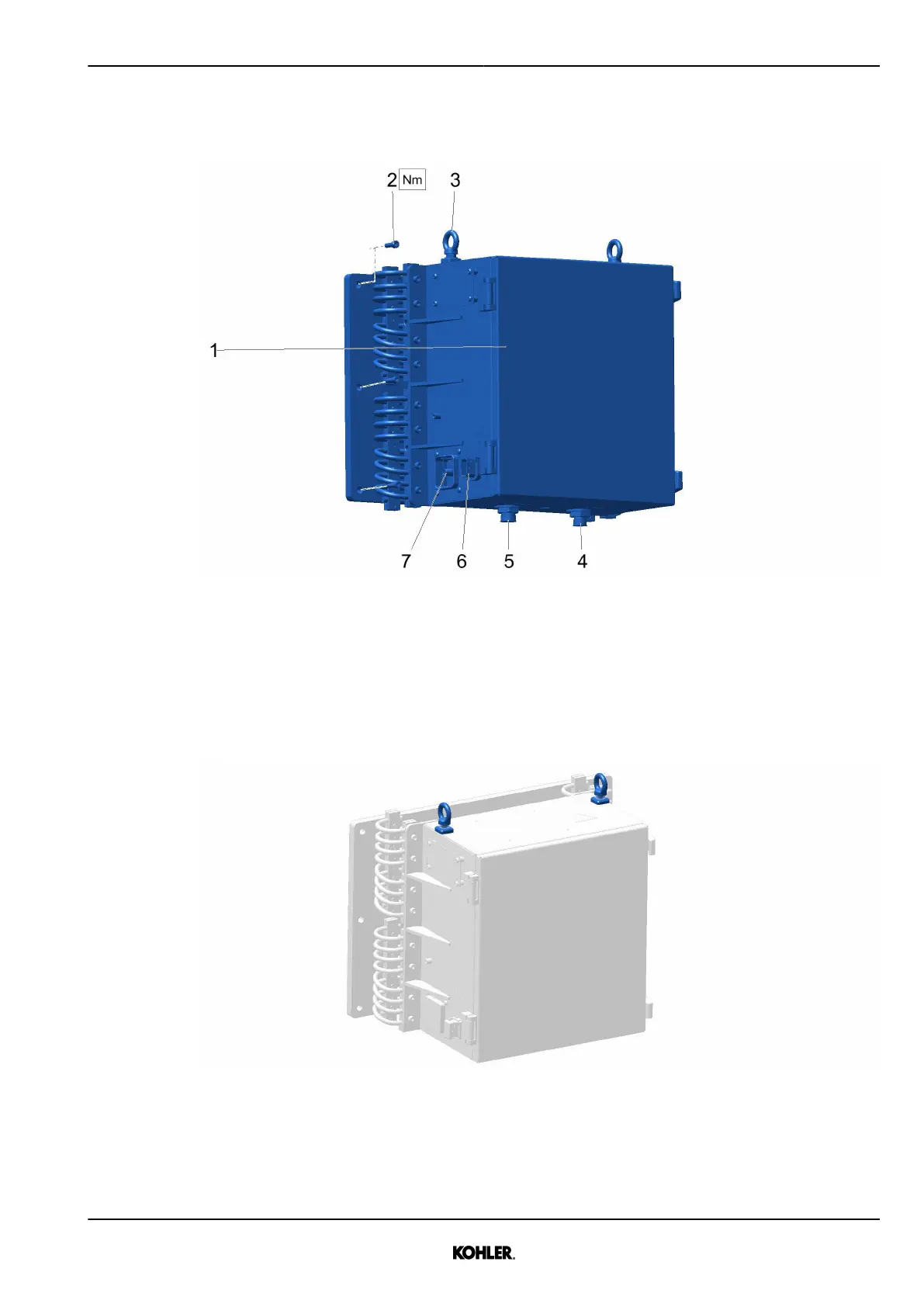

Fig. 285: Task overview
1 Diesel exhaust fluid pump 5 Connection (M26/M22)
2 Screw (M10) 6 10-pin connector
3 Lifting hook 7 48-pin connector
4 Connection (M26/M22)
Removal
Fig. 286: Securing pump
u Using the lifting hooks 3, secure the pump 1 to a crane.
KD62V12 33525088601_7_1 EN_US
2021-07
