Service and Repair Manual
Repair
Exhaust aftertreatment system

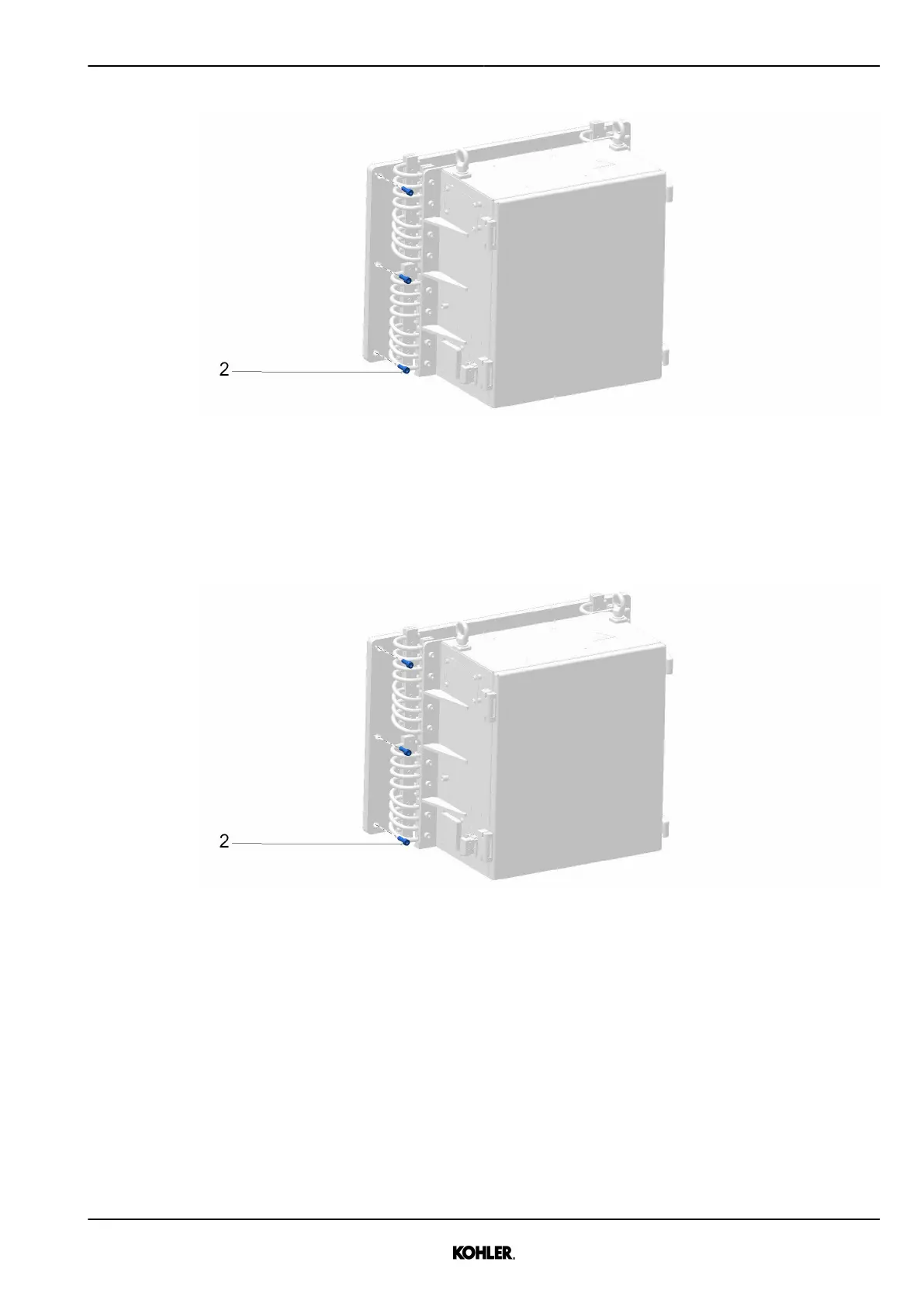

Fig. 289: Removing screws
u
Remove the screws
2
.
u
Remove the pump
1
.
Installation
Fig. 290: Installing pump
u
Install the pump
1
with screws
2
.
u
T
ighten the screws
2
to 33
±3
Nm (24
±2
ft-lb).
KD62V12 33525088601_7_1 EN_US
