Repair Service and Repair Manual
Exhaust aftertreatment system

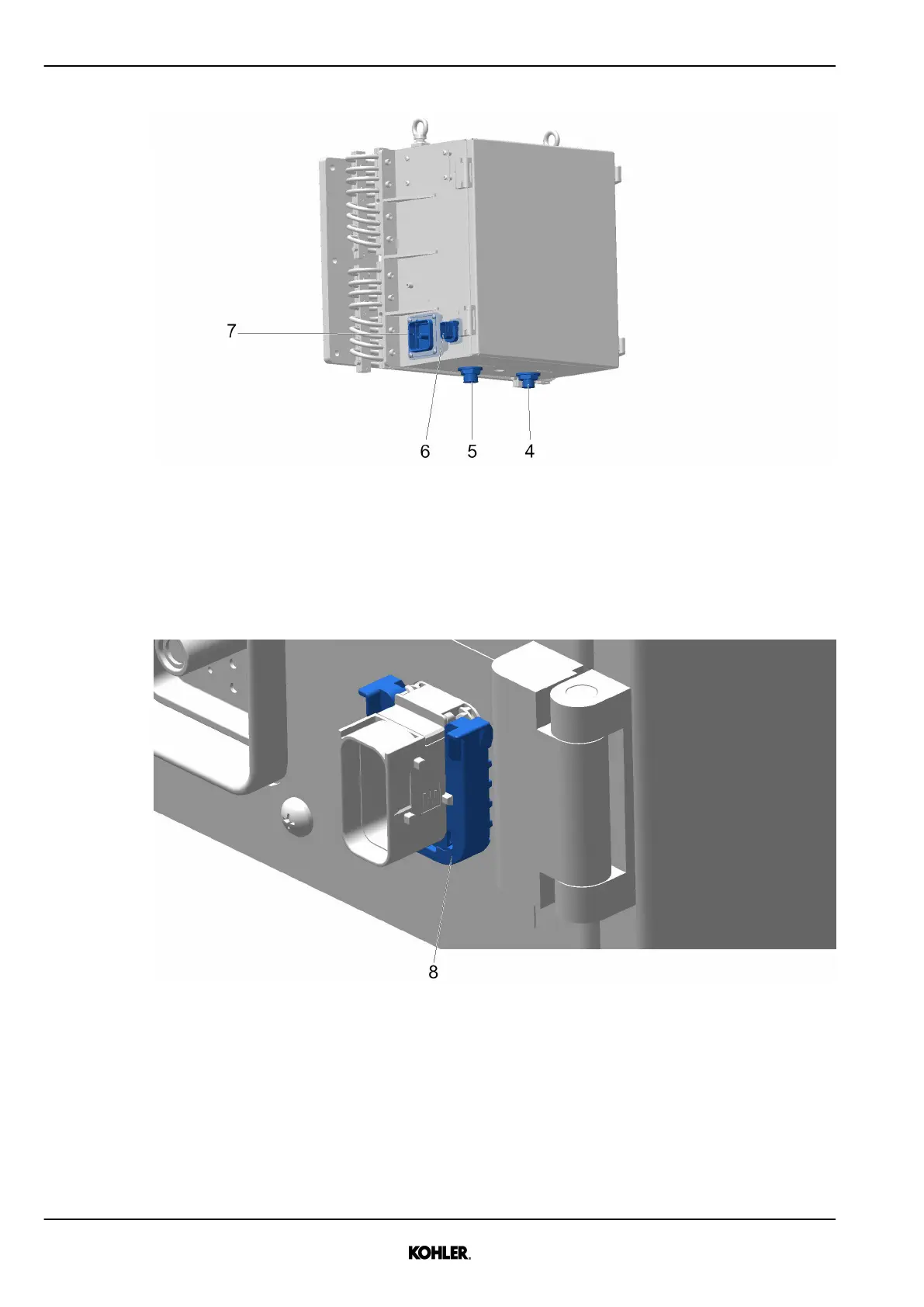

Fig. 291: Connecting connectors
u Connect the diesel exhaust fluid lines to the pump 1 with connectors 4, 5.
u Tighten connectors 4, 5 to 35
±5
Nm (26
±4
ft-lb).
u Connect the 48-pin connector 7 to the pump 1.
u Tighten the fastening screws of the 48-pin connector 7 to 4
±0.5
Nm (3
±0
ft-lb).
Fig. 292: Connector locking device - handling forbidden
u Connect the 10-pin connector 6 to the pump 1.
254
© 2021 by Kohler Co. All rights reserved.
KD62V12 33525088601_7_1 EN_US
2021-07
