Tools and devices Service and Repair Manual
Tools
WARNING
Risk of injuries by ejected tools or turning devices parts
Keeping the turning device screwed on the flywheel housing or the wrench tool on the turning
device while operating the engine can lead to injuries by tool ejection or break of turning device!
u Check for spring function of the turning device. If faulty, replace by new turning device.
u Always take away the wrench tool from the turning device, after the flywheel has been turned.
u Dismount immediately the turning device and mount the cover on the flywheel housing.
Information
The wrench tool and the turning device are available for maintenance task only.
Please contact your nearest authorized Kohler service representative.
Mount the turning device

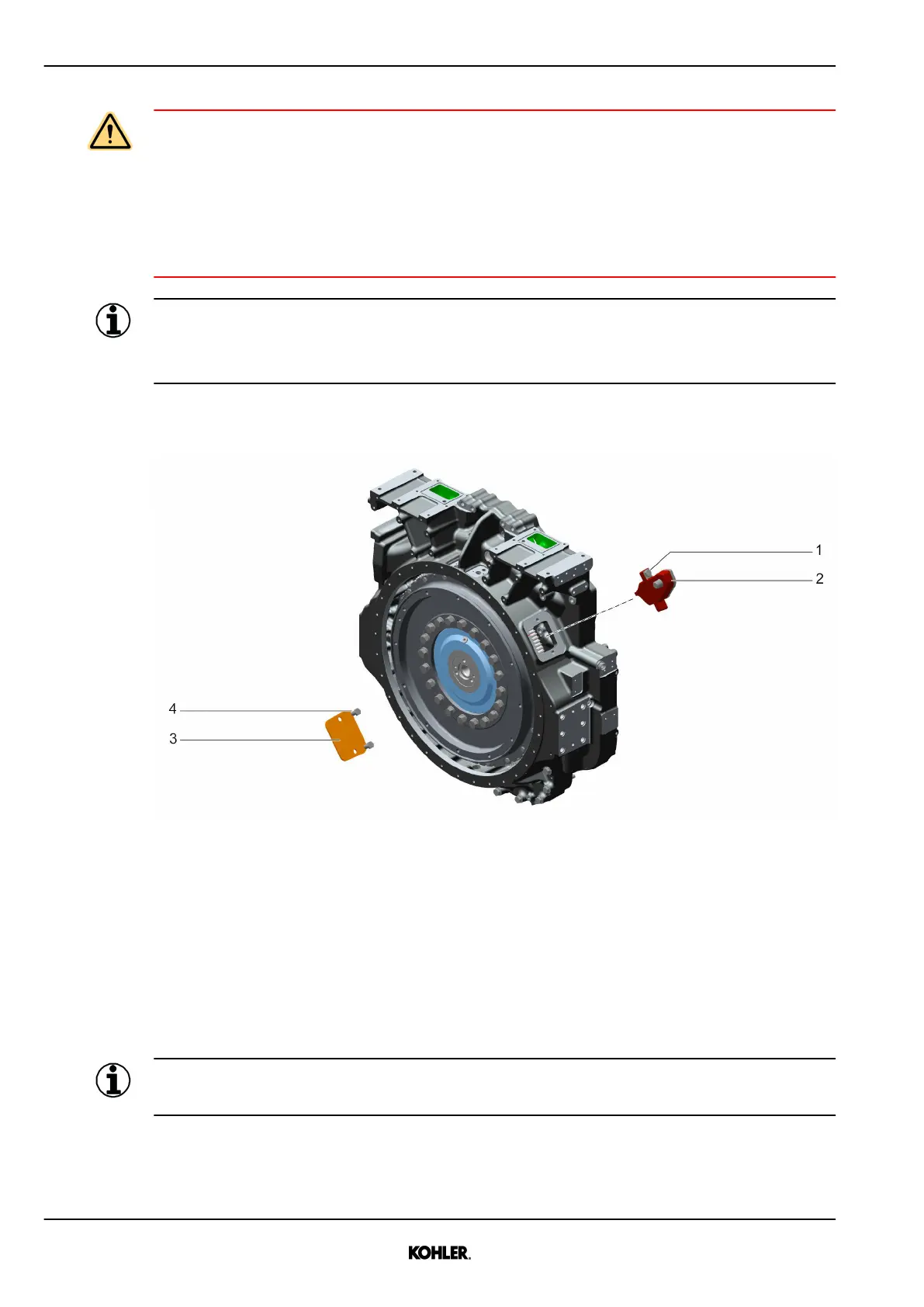

Fig. 312: Mounting the turning device
1 Screws (M16x35 -8.8) 3 Cover
2 Turning device 4 Screws (M16x25 -8.8)
To mount the turning device:
u Unscrew screws 4.
u Remove cover 3.
u Position turning device 2.
u Mount and tighten screws 1 according to standard torques values.
Information
For queries, please contact your nearest authorized Kohler service representative.
Use the turning device
q The turning device is mounted on the engine.
260
© 2021 by Kohler Co. All rights reserved.
KD62V12 33525088601_7_1 EN_US
2021-07
