Service and Repair Manual Repair
Rocker arms
Overview

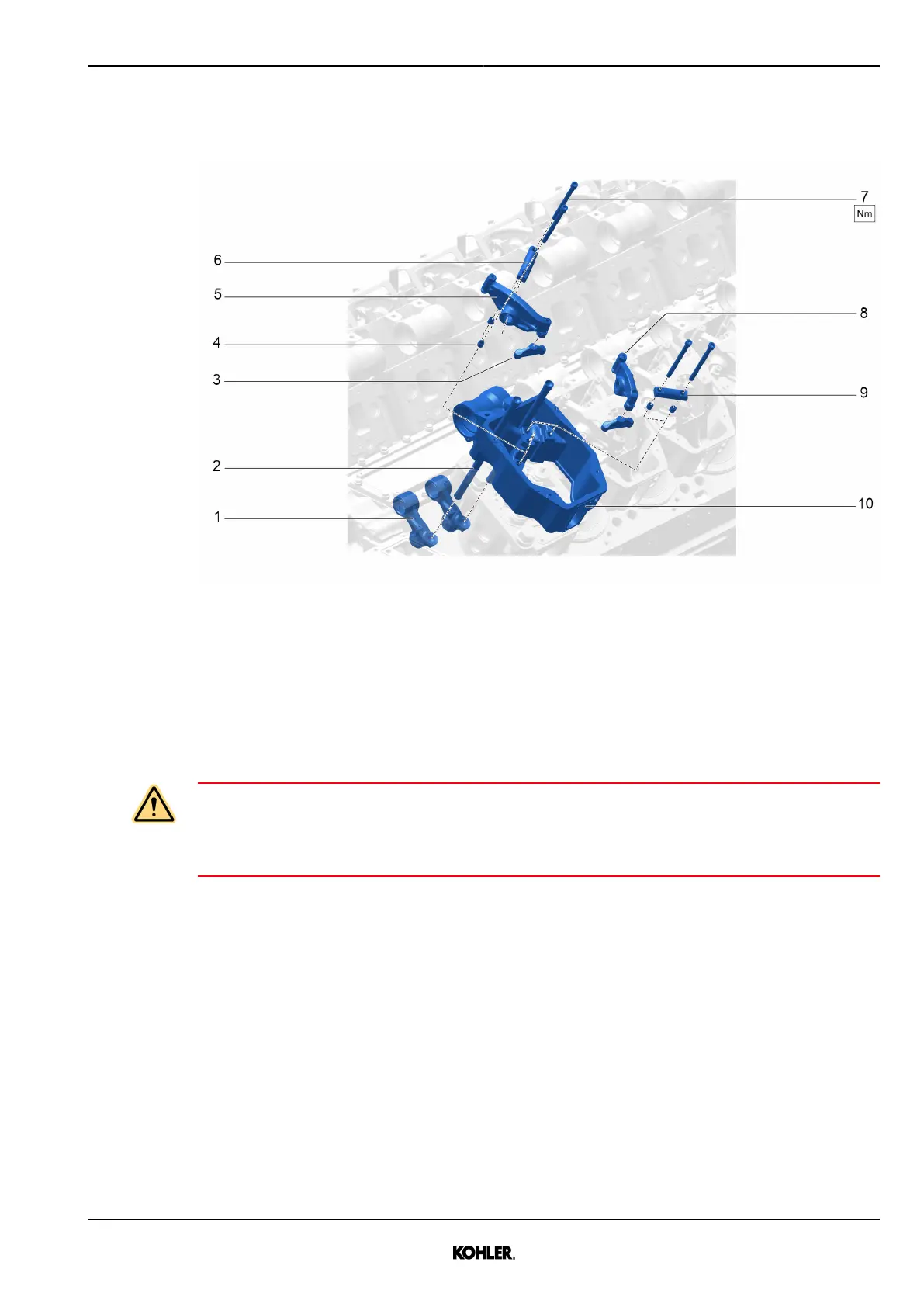

Fig. 71: Task overview
1 Swing follower 6 Inlet shaft
2 Pushrod 7 Screw (M12)
3 Valve bridge 8 Exhaust rocker arm
4 Fitting sleeve 9 Exhaust shaft
5 Inlet rocker arm 10 Rocker arm housing
Removal
WARNING
The valve springs must not be under stress.
Risk of injuries.
u Turn crankshaft to firing TDC position using turning device.
KD62V12 33525088601_7_1 EN_US
2021-07
