Service and Repair Manual
Repair
Rocker arms

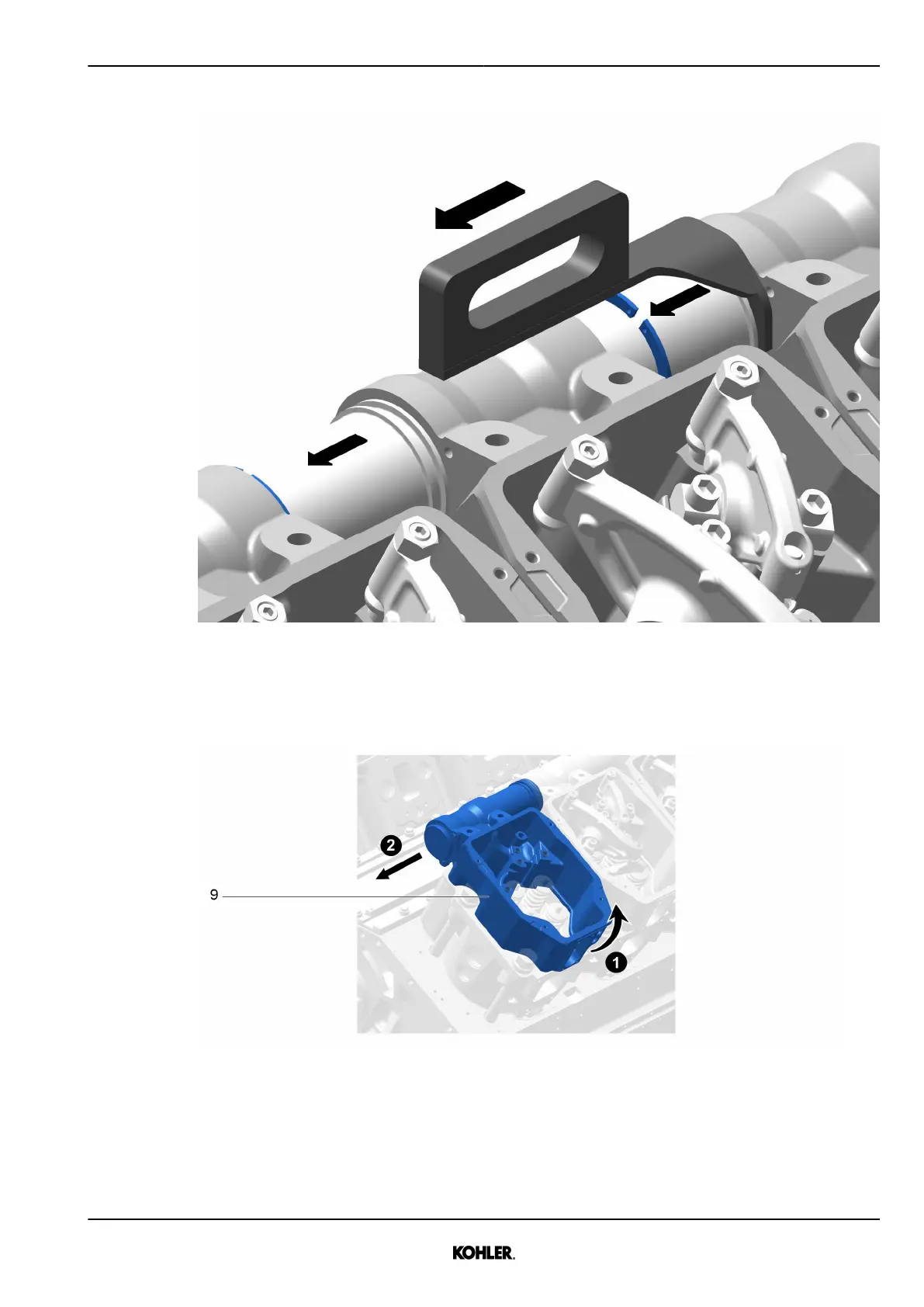

Fig. 84: Placing tool
u
Place tool on pipe.
u
Slide pipes out of rocker arm housing.
Fig. 85: Removing rocker arm housing
u
Lift rocker arm housing
9
.
u
Move rocker arm housing and coolant pipe HT to remove the assembly
.
KD62V12 33525088601_7_1 EN_US
2021-07
© 2021 by Kohler Co. All rights reserved.
85
84
86
