Repair Service and Repair Manual
Driving gear
Consumables and equipment
Make sure that the following consumables and equipment are available:
Sampling kit for silicon oil collection (sampling instructions, form, sample container, sample
plugs, padded return envelope)
Overview

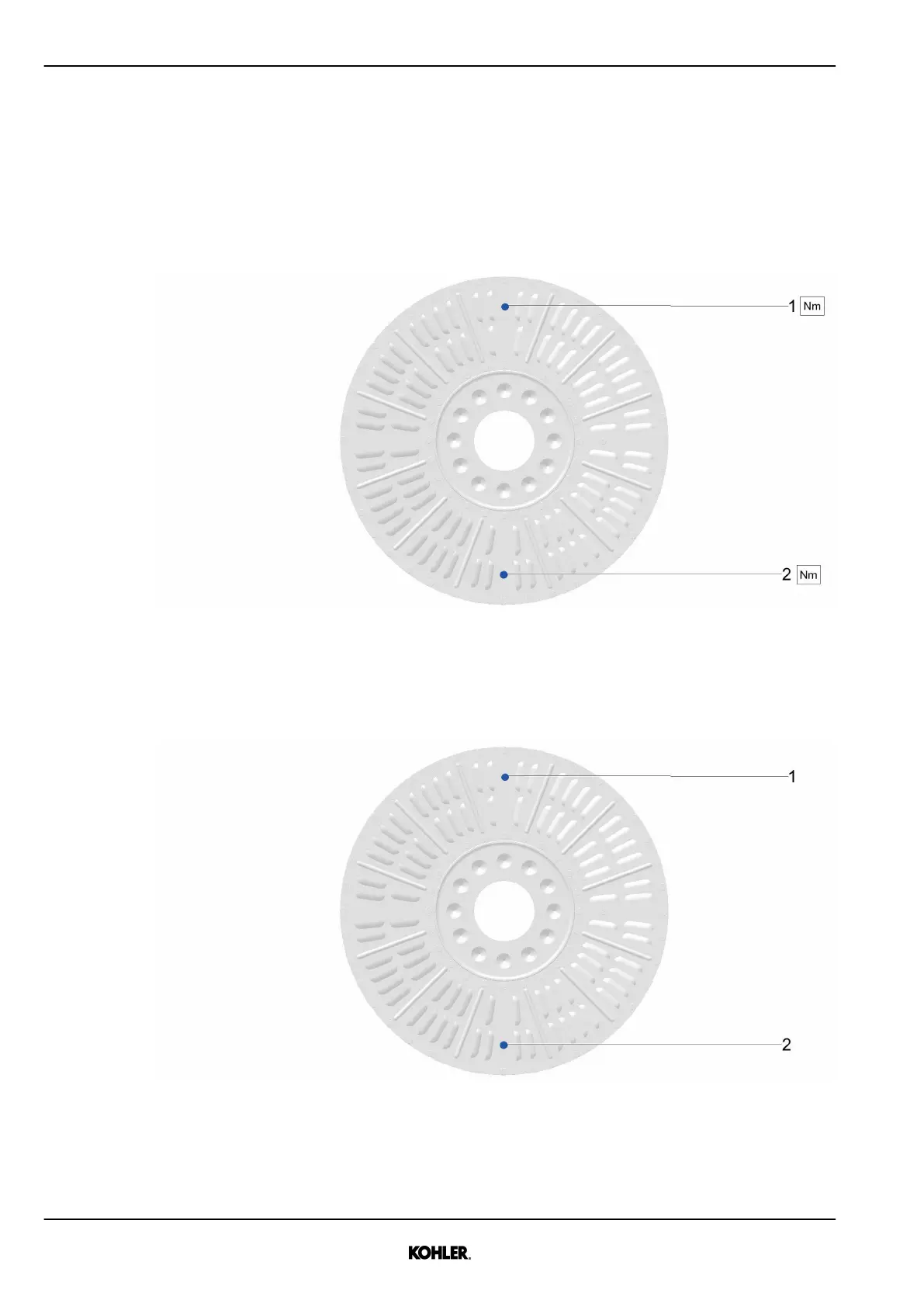

Fig. 116: Task overview
1 Upper sample opening 2 Lower sample opening
Sample collection
Fig. 117: Collecting silicon oil sample
u Rotate the crankshaft until sample openings 1, 2 are located vertically.
106
© 2021 by Kohler Co. All rights reserved.
KD83V16 33525088901_2_1 EN_US
2021-07
