Product description Service and Repair Manual

Function description

Fuel diagram

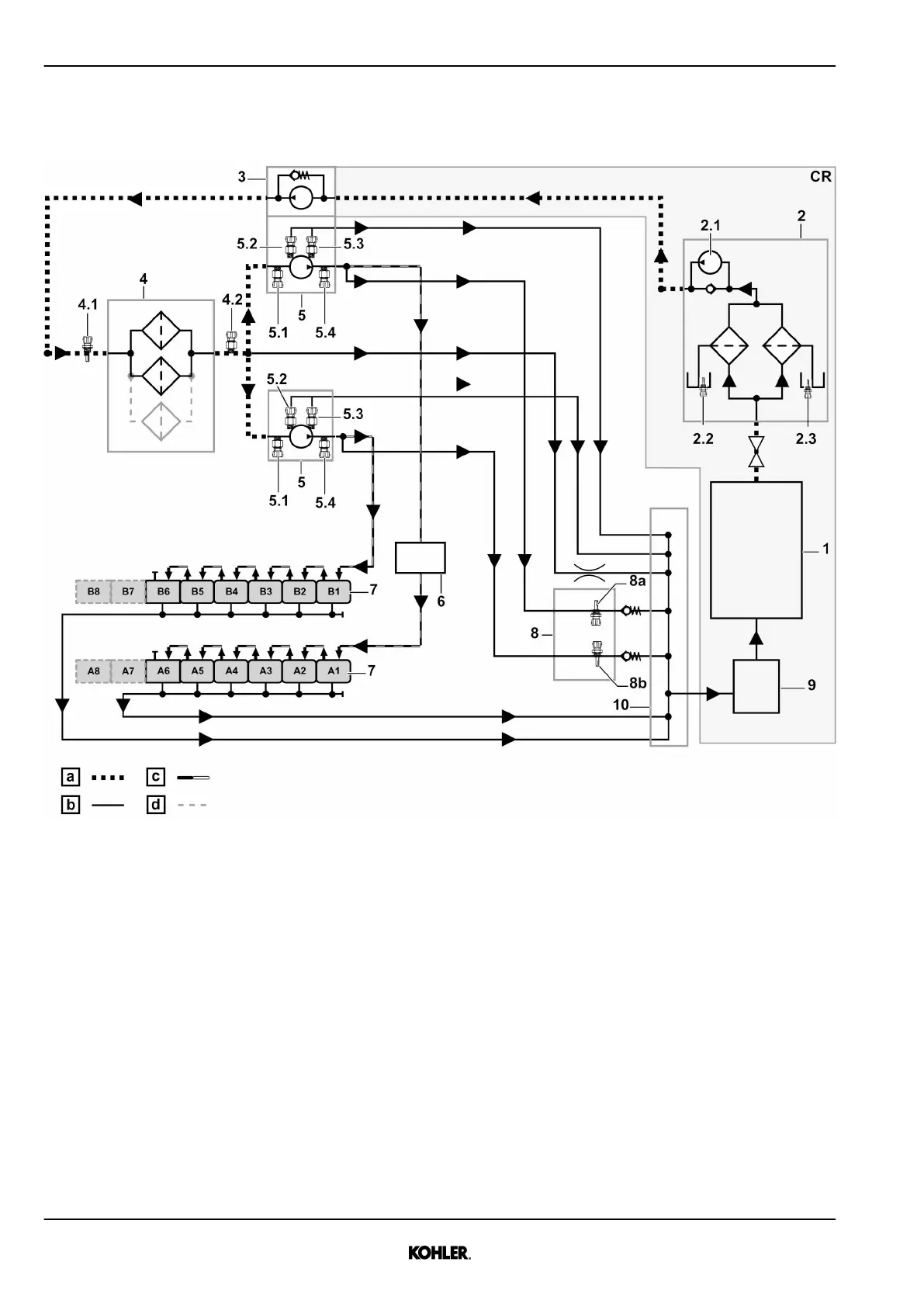

Fig. 21: Fuel diagram

a Low pressure – single walled c High pressure – double

walled

CR Customer responsibility

b Return line – single walled d Depending on engine config-

uration

1 Fuel tank 4.1 B709 – Before fuel filter

(Temperature)

6 Connecting block

2 Fuel prefilter & water sepa-

rator

4.2 B702 – After fuel filter (Pres-

sure)

7 Injectors A1 – B8

2.1 Servicing point 5 High pressure pump A and B 8 Break leakage detection

block (if available)

2.2 B710 – WIF pre-filter 1 5.1 Y703 and Y704 – Fuel pump

VCV

8a B7921 – HP leakage detec-

tion Bank A (Leakage)

2.3 B745 – WIF pre-filter 2 5.2 Y708 and Y707 – Fuel pump

PCV 1

8b B7922 – HP leakage detec-

tion Bank B (Leakage)

3 Low pressure pump 5.3 Y728 and Y727 – Fuel pump

PCV 2

9 Fuel cooler (optional)

See next page for continuation of the image legend

KD83V16 33525088901_2_1 EN_US

2021-07
