1 Product description
1.1 Technical description

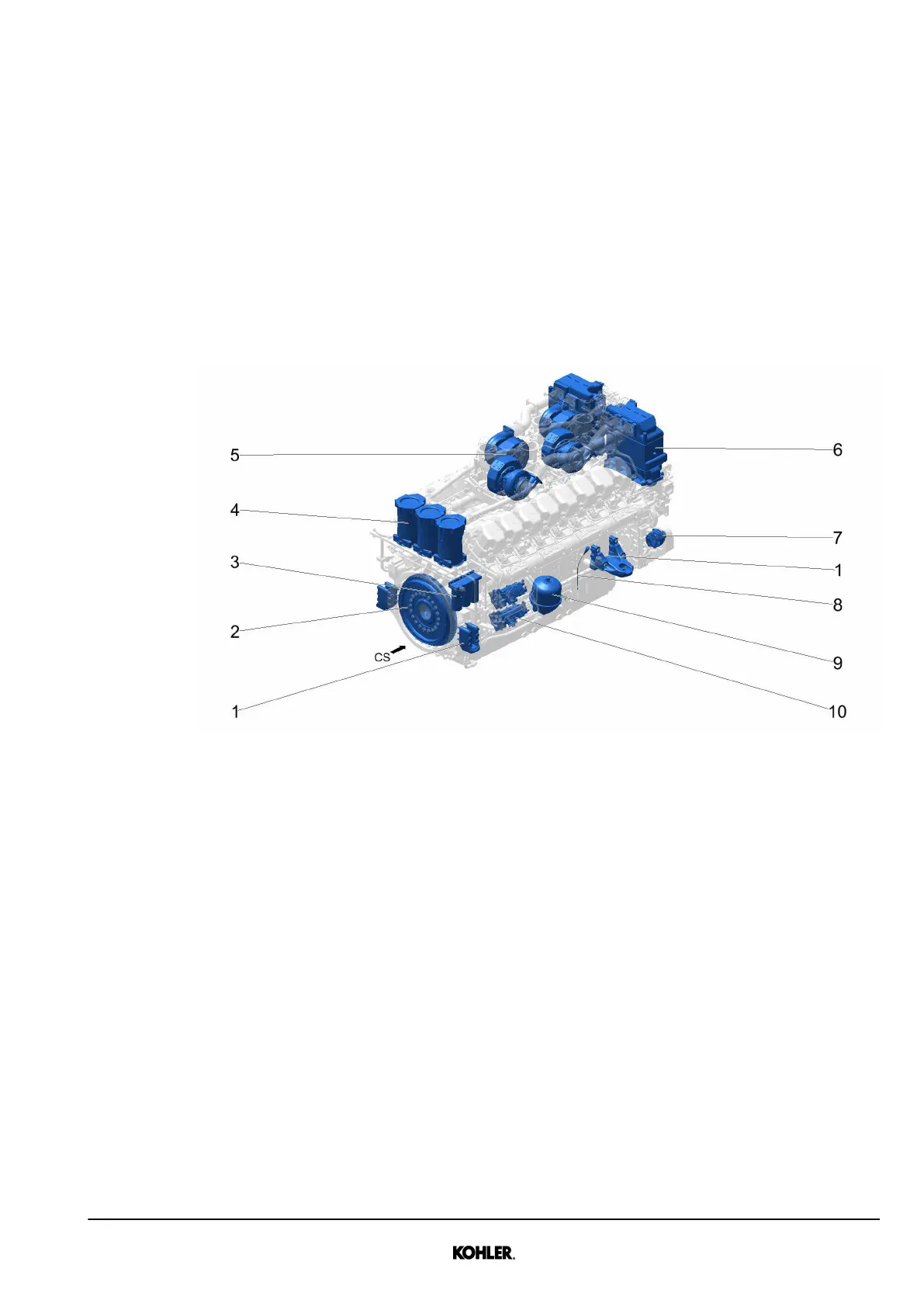

Fig. 1: Diesel engine / view from the flywheel side
CS Engine rear (flywheel side) 6 Charge air cooler
1 Engine brackets (x4) 7 Battery charging alternator
2 Flywheel 8 Oil dipstick
3 Fuel filter 9 Oil centrifuge assembly
4 Crankcase breather system filter 10 High pressure fuel pump
5 Turbocharger assembly
KD83V16 33525088901_2_1 EN_US
2021-07
© 2021 by Kohler Co. All rights reserved.
17
