Service and Repair Manual Repair
Cooling system
3.10 Cooling system
3.10.1 Water pipes (rocker arm housing) removal and installation
Previous tasks
q Dismount the water pipes on the rocker arm housing with the rocker arm housing. (For more
information see: 3.3.3 Rocker arms housing removal and installation, page 82.)
Specific safety instructions
NOTICE
Risk of property damage by reuse of sealing.
Leakage by faulty seal.
u Replace all sealings.
Special tools
Not applicable.
Consumables and equipment
– Rags
– Cleaner
Overview

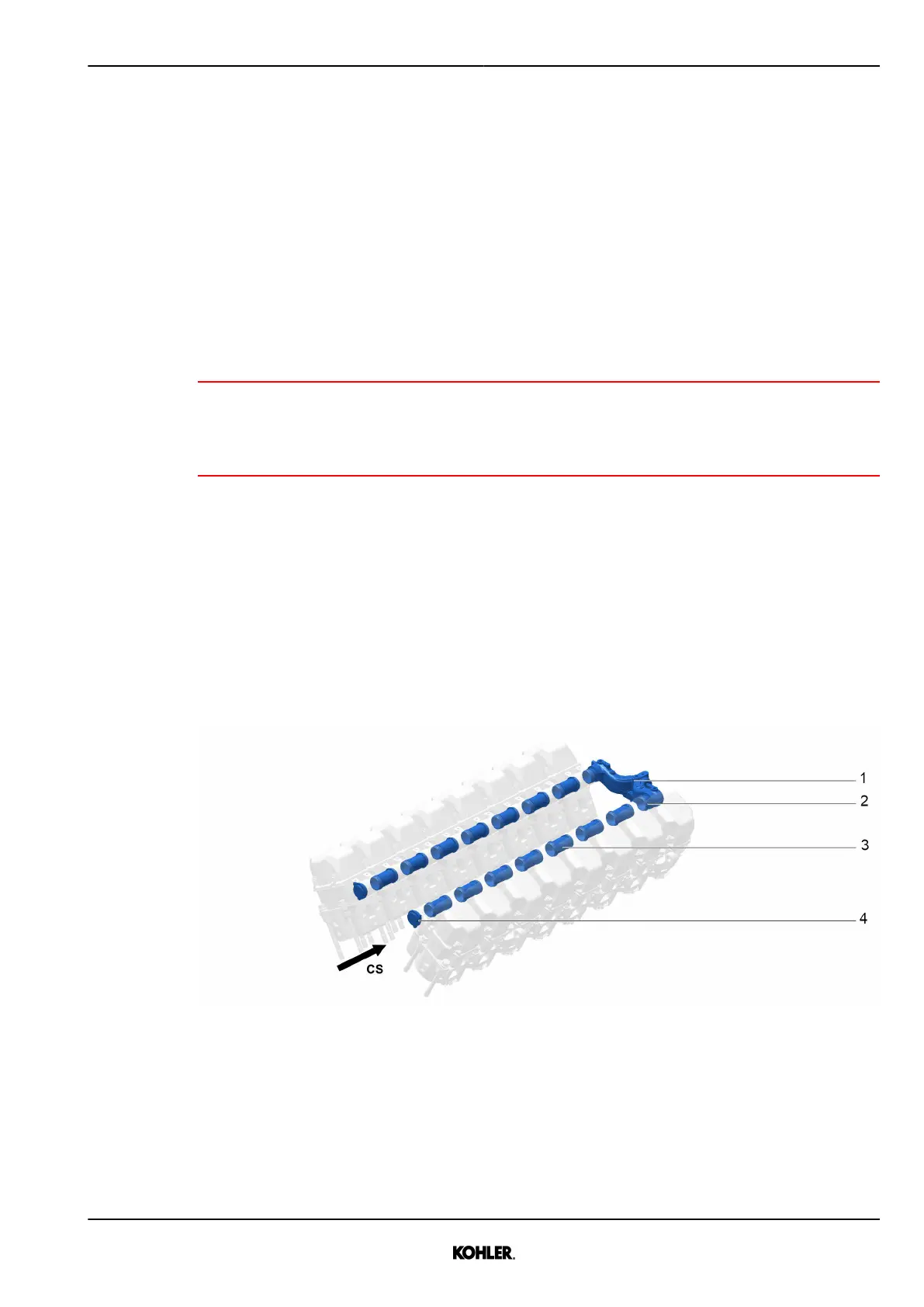

Fig. 223: Task overview
1 HT collector 3 Pipe
2 Pipe 4 Cover
KD83V16 33525088901_2_1 EN_US
2021-07
