Kohler KD83V16

Repair Service and Repair Manual
Lubricating system
Tightening specifications

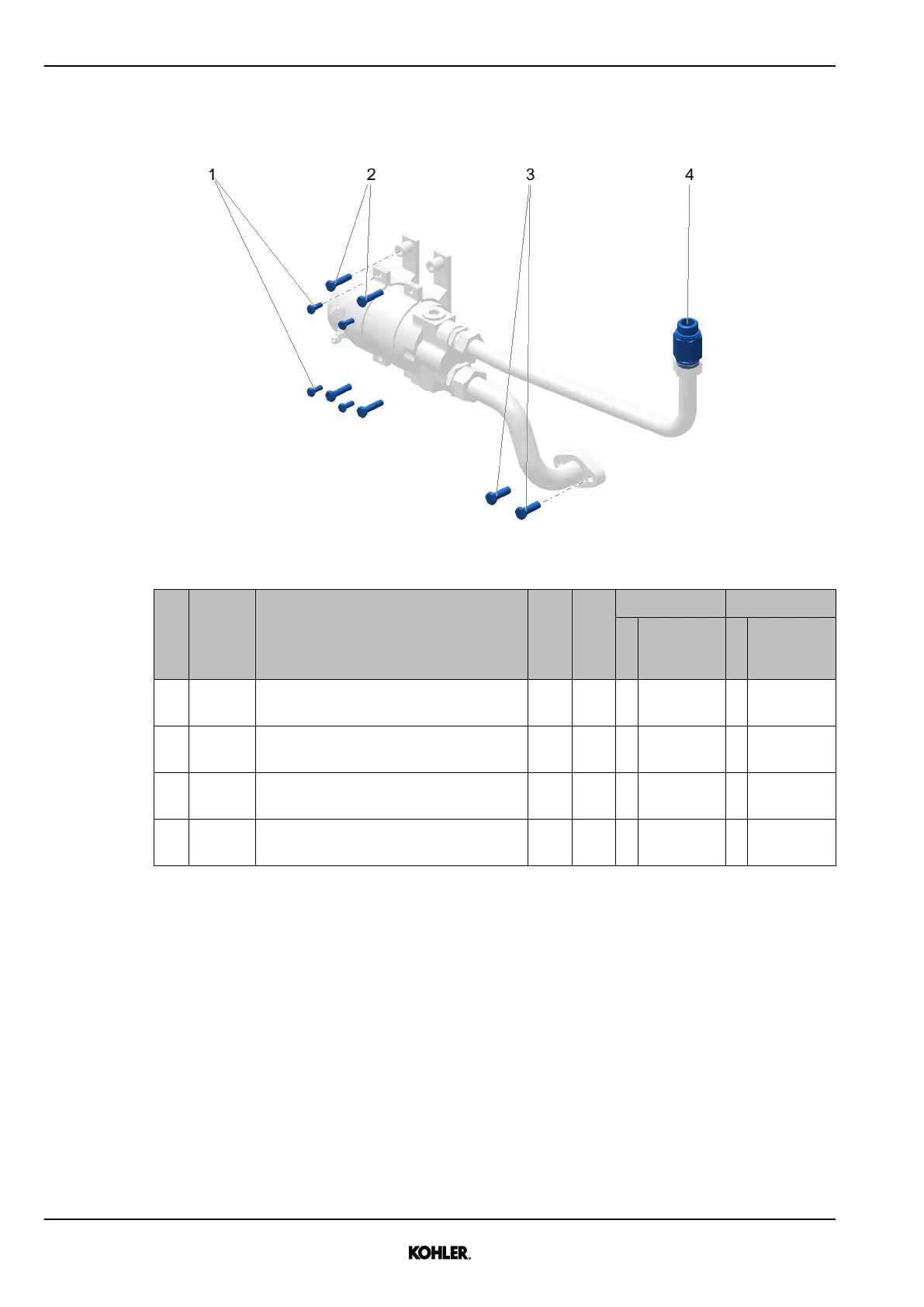

Fig. 222: Prelubricating pump screws and connections
Reference
Key Screw specifications
Lubricant *
Reuse**
Torque Angle (°)
Step
± 5%
Step
± 5°
1 - M8 10.9 480H - Yes 1 34 Nm
25 ft-lb
- -
2 - M10 10.9 FLZN - Yes 1 66 Nm
49 ft-lb
- -
3 - M12 10.9 FLZN - Yes 1 113 Nm
83 ft-lb
- -
4 - M33x2 O Yes 1 340 Nm
251 ft-lb
- -
Tab. 44: Tightening specifications table
*Lubricants:
MG = Molykote G-n-plus
MW = Castrol Optimol paste white T
MH = Molykote HSC
O = Engine oil
XX = Loctite 243
YY = Loctite 577
**Refer to screws reuse rules. (For more information see: 5.3.2 Screws pre-tightening, reuse and
marking, page 274.)
