Kohler KD83V16

Service and Repair Manual Repair
Rocker arms

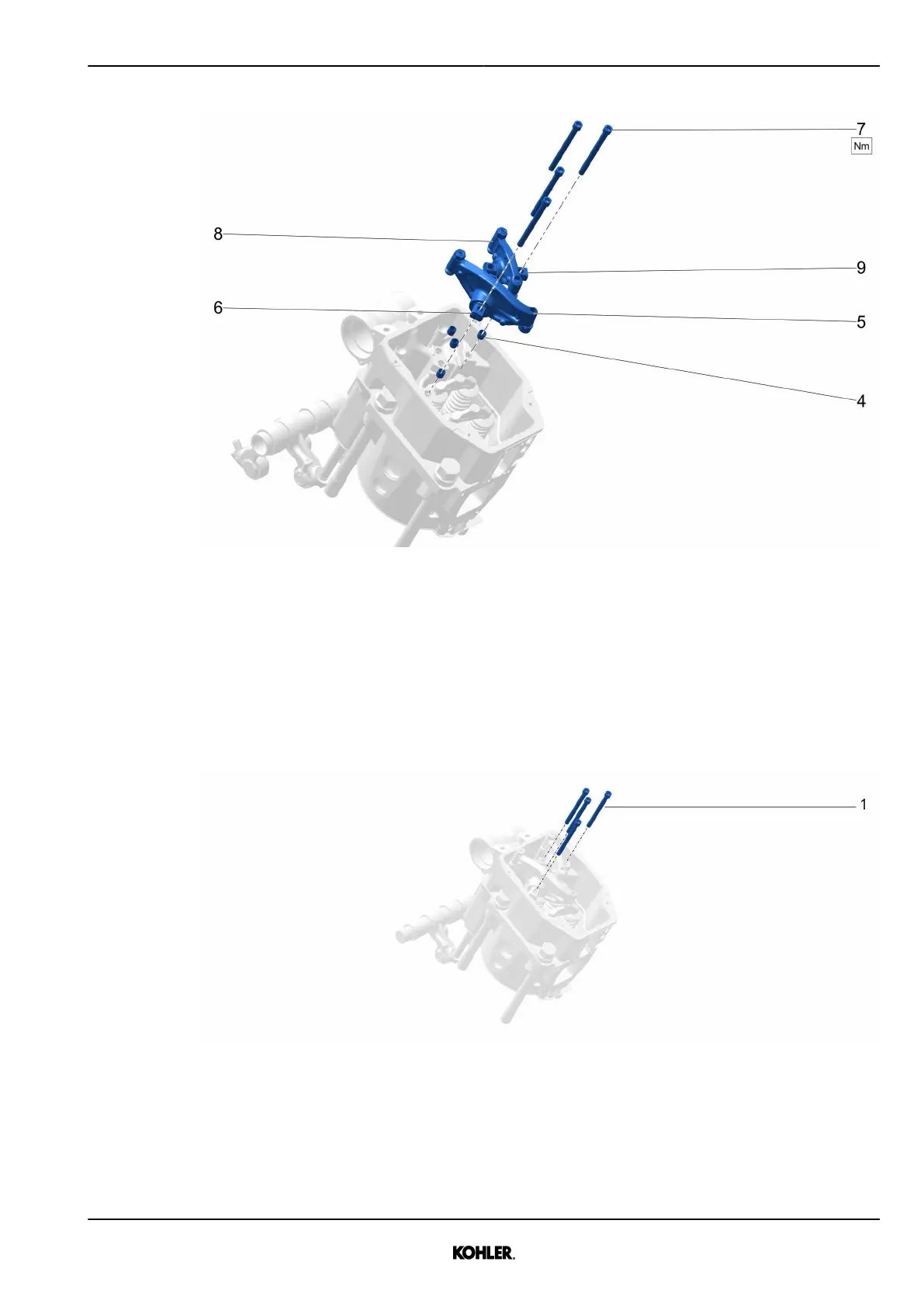

Fig. 79: Installing screws
u Screw and fit rocker arms with screws 7 in inlet shaft, exhaust shaft and fitting sleeves 4.
Specific values
(For more information see: 3.3.1 Rocker arms - Valve clearance set (SL 204), page 69.)
Tightening specifications
Fig. 80: Rocker arms screws
KD83V16 33525088901_2_1 EN_US
2021-07
© 2021 by Kohler Co. All rights reserved.
81
