Kohler KD83V16

Repair Service and Repair Manual
Covers
u Remove cover 3.
u Unscrew screws 4.
u Remove protection plate 2.
Installation
u Screw cover 3 with screws 1.
u Screw protection plate 2 with screws 4.
Specific values
Not applicable.
Tightening specifications

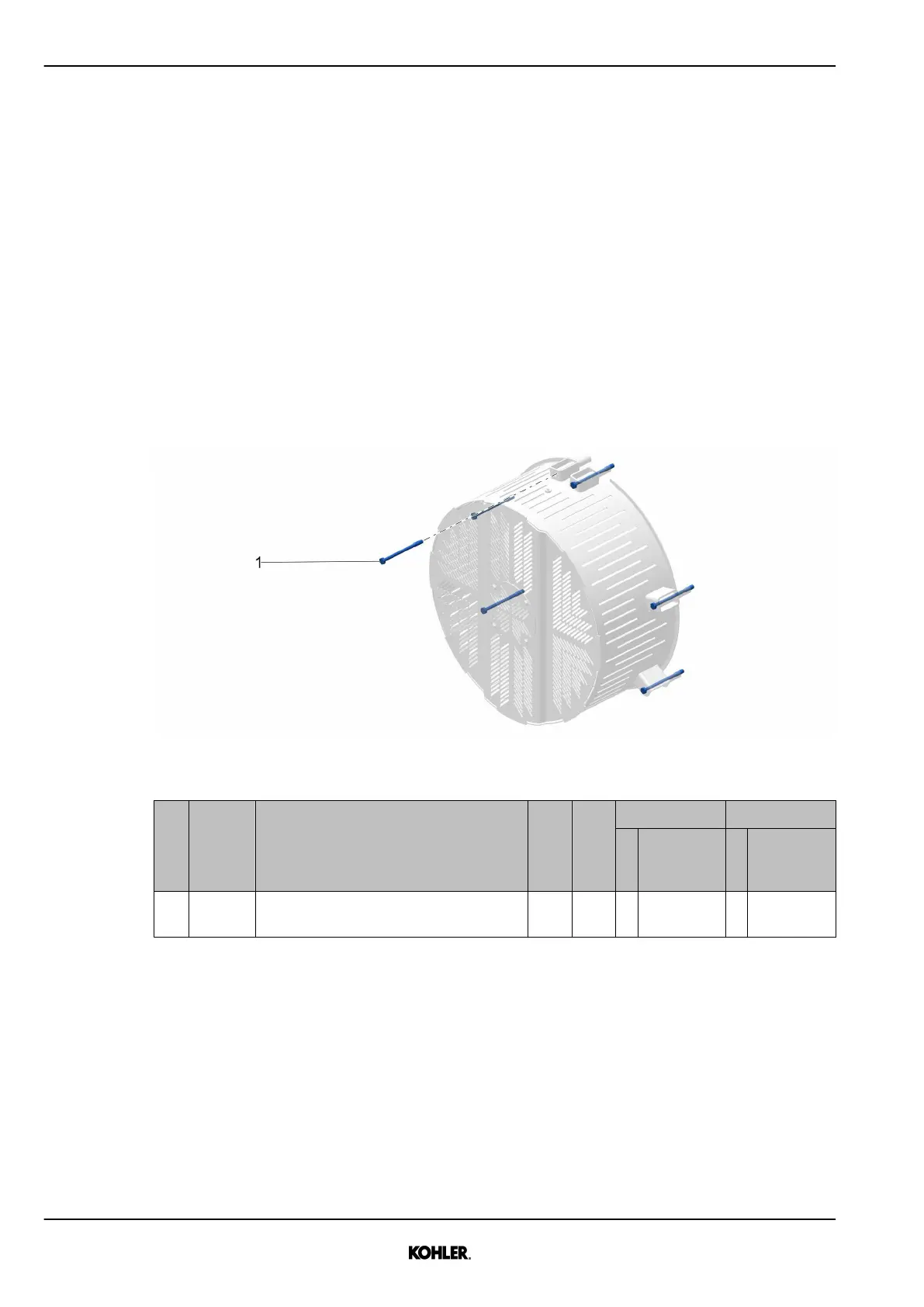

Fig. 52: Vibration damper cover screws
Reference
Key Screw specifications
Lubricant *
Reuse**
Torque Angle (°)
Step
± 5%
Step
± 5°
1 055AA DIN 6929 M12x1.75x155-10.9-FLZN - Yes 1 70 Nm
52 ft-lb
- -
Tab. 11: Tightening specifications table
*Lubricants:
MG = Molykote G-n-plus
MW = Castrol Optimol paste white T
MH = Molykote HSC
O = Engine oil
XX = Loctite 243
YY = Loctite 577
**Refer to screws reuse rules. (For more information see: 5.3.2 Screws pre-tightening, reuse and
marking, page 274.)
