Cooling system
Removal

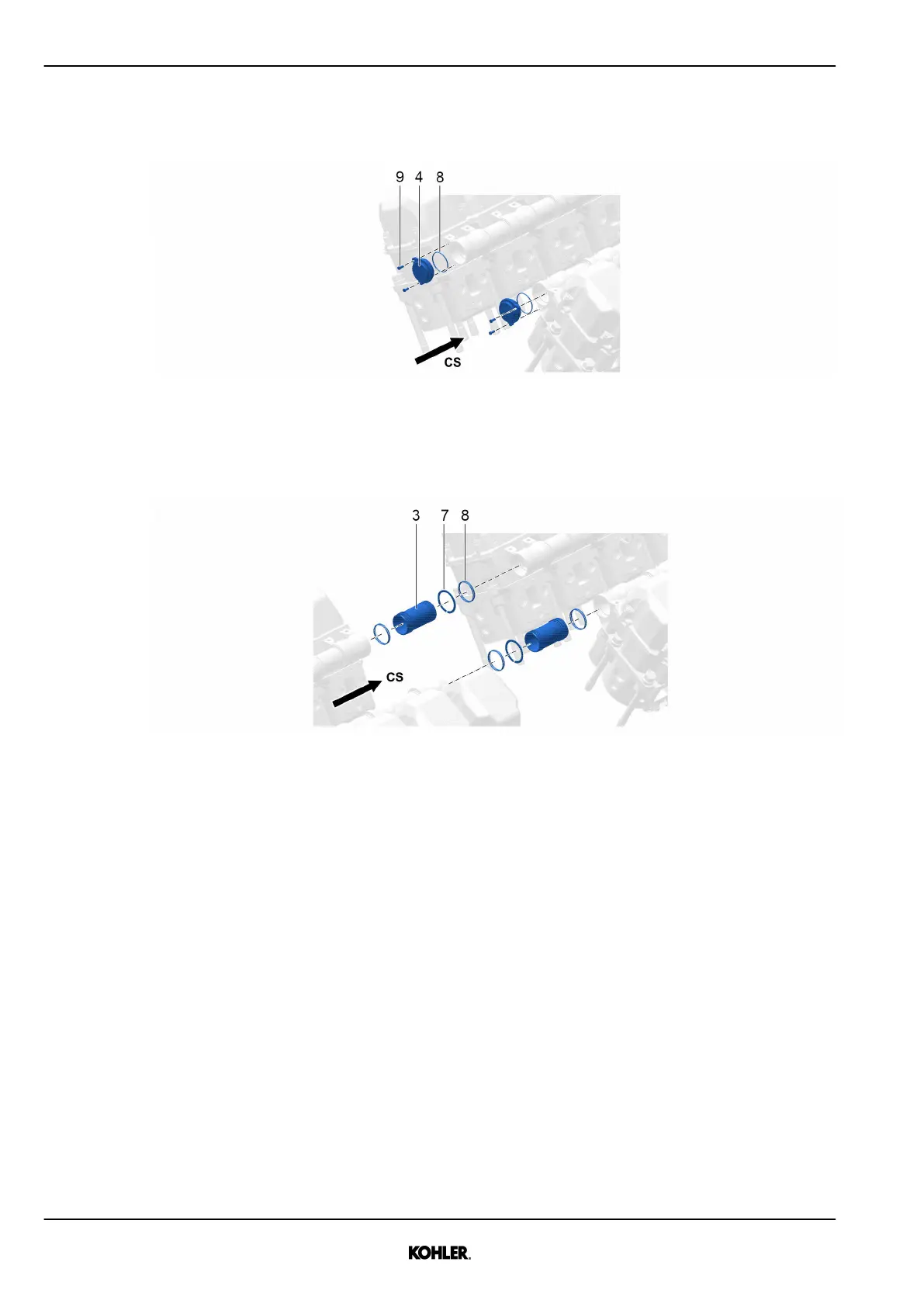

Fig. 224: Removing cover
u Remove screws 9.
u Remove cover 4.
Fig. 225: Removing water pipe
u Move clamp 7 to the middle of the pipe 3.
u Push pipe 3 towards the left housing.
u Remove rocker arm housing.
u Remove pipe 3.
