Service and Repair Manual Repair
Cooling system

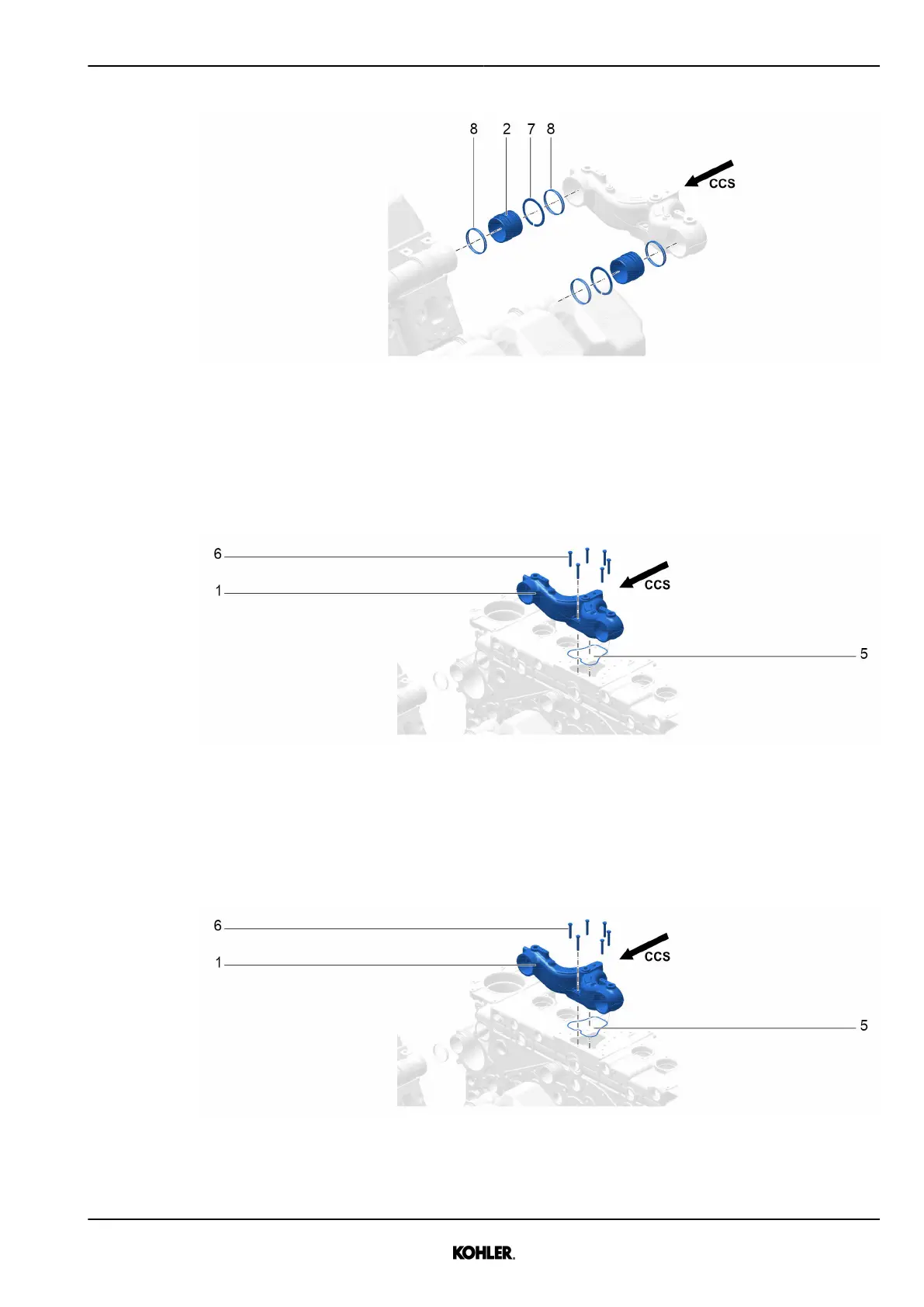

Fig. 226: Removing pipe
u Move clamp 7 to the middle of the pipe 2.
u Push pipe 2 towards the left housing.
u Remove rocker arm housing.
u Remove pipe 2.
Fig. 227: Removing collector
u Remove screws 6.
u Remove collector 1.
Installation
Fig. 228: Installing collector
u Insert o-ring 5 in HT collector 1.
